Phase portraits of linear type centers of polynomial Hamiltonian systems with Hamiltonian function of degree 5 of the form $ H = H_1(x)+H_2(y)$

Jaume Llibre; Y. Paulina Martínez; Claudio Vidal

doi:10.3934/dcds.2019004

Article Contents

2019, Volume 39, Issue 1: 75-113. Doi: 10.3934/dcds.2019004

This issue Previous Article Single phytoplankton species growth with light and crowding effect in a water column Next Article Core entropy of polynomials with a critical point of maximal order

Phase portraits of linear type centers of polynomial Hamiltonian systems with Hamiltonian function of degree 5 of the form $ H = H_1(x)+H_2(y)$

1.
Departament de Matemàtiques, Facultat de Ciències Universitat Autònoma de Barcelona, 08193 Bellaterra, Barcelona, Catalonia, Spain
2.
Departamento de Matemática, Facultad de Ciencias, Universidad del Bío-Bío, Casilla 5-C, Concepción, Ⅷ-Región, Chile
3.
Grupo de Investigación en Sistemas Dinámicos y Aplicaciones-GISDA, Departamento de Matemática, Facultad de Ciencias, Universidad del Bío-Bío, Casilla 5-C, Concepción, Ⅷ-región, Chile

^* Corresponding author: Claudio Vidal
^* Corresponding author: Claudio Vidal

Received: July 31, 2017

Revised: April 30, 2018

Published: December 2018

Abstract Full Text(HTML) Figure(31) Related Papers Cited by

Abstract

We study the phase portraits on the Poincaré disc for all the linear type centers of polynomial Hamiltonian systems of degree $5$ with Hamiltonian function $H(x,y) = H_1(x)+H_2(y)$, where $H_1(x) = \frac{1}{2} x^2+\frac{a_3}{3}x^3+ \frac{a_4}{4}x^4+ \frac{a_5}{5}x^5$ and $H_2(y) = \frac{1}{2} y^2+ \frac{b_3}{3}y^3+ \frac{b_4}{4}y^4+ \frac{b_5}{5}y^5$ as function of the six real parameters $a_3, a_4, a_5, b_3, b_4$ and $b_5$ with $a_5 b_5≠ 0$. We characterize the type and multiplicity of the roots of the polynomials $\hat{p}(y) = 1+b_3y + b_4 y^2+b_5y^3$ and $\hat{q}(x) = 1+a_3x+a_4x^2+a_5x^3$ and we prove that the finite equilibria are saddles, centers, cusps or the union of two hyperbolic sectors. For the infinite equilibria we found that there only exist two nodes on the Poincaré disc with opposite stability. We also characterize the separatrices of the equilibria and analyze the possible connections between them. As a complement we use the energy level to complete the global phase portrait.

Keywords:

Mathematics Subject Classification: Primary: 37C10; Secondary: 34C05.

Citation:

Full Text(HTML)

Figure 11. Phase portraits for the systems associated to the Hamiltonian (5) when the roots of $\hat{p}(y)$ are $r\in \mathbb{R}$ and $a\pm ib$, and the roots of $\hat{q}(x)$ are $\rho$ and $\alpha\pm i\beta$. The separatrices are in bold. (a) $h_2<h_3$. (b) $h_2 = h_3$. (c) $h_2>h_3$

Download: Full-size image PowerPoint slide

Figure 17. Global phase portraits for the system (3) in the case Ⅰ-ⅱ for $r>0$ and $0<\sigma<\rho$. (a) $h_2 = h_4$ and $h_3 = h_5$. (b) $h_2 = h_4$ and $h_3<h_5$. (c) $h_2 = h_4$ and $h_5<h_3$. (d) $h_2<h_3<h_4<h_5$. (e) $h_3 = h_4$ and $h_2<h_5$. (f) $h_2<h_4<h_3<h_5$. (g) $h_3 = h_5$ and $h_2<h_4$. (h) $h_2<h_4<h_5<h_3$. (i) $h_4<h_2<h_3<h_5$. (j) $h_3 = h_5$ and $h_2>h_4$. (k) $h_4<h_2<h_5<h_3$

Download: Full-size image PowerPoint slide

Figure 16. Global phase portraits for the system (3) in the case Ⅰ-ⅱ for $r>0$ and $0<\rho<\sigma$. (a) $h_2<h_3 = h_4 = h_5$. (b) $h_2 = h_4<h_3 = h_5$. (c) $h_2 = h_4<h_5<h_3$. (d) $h_2<h_4 = h_5<h_3$. (e) $h_2<h_3<h_4<h_5$. (f) $h_2<h_3<h_4 = h_5$. (g) $h_2<h_3<h_5<h_4$. (h) $h_2<h_3 = h_4<h_5$. (i) $h_2<h_4<h_3<h_5$. (j) $h_2<h_4<h_3 = h_5$. (k) $h_2<h_4<h_5<h_3$. (l) $h_2<h_3 = h_5<h_4$. (m) $h_4<h_2<h_3<h_5$. (n) $h_4<h_2<h_3 = h_5$. (o) $h_4<h_2<h_5<h_3$. (p) $h_2<h_5<h_3<h_4$. (q) $h_2<h_5<h_3 = h_4$. (r) $h_2<h_5<h_4<h_3$

Download: Full-size image PowerPoint slide

Figure 22. Global Phase portraits for the system (3) in the case Ⅰ-ⅳ. Here consider $r>0$, $\rho<0<\sigma<\tau$. When four (a) or three saddle are in the energy level (a)-(i), $h_5 = h_8$ (j)-(o). (a) $h_2 = h_3 = h_5 = h_8$. (b) $h_8<h_2 = h_3 = h_5$. (c) $h_2 = h_3 = h_5<h_8$. (d) $h_5<h_2 = h_3 = h_8$. (e) $h_2 = h_3 = h_8<h_5$. (f) $h_3<h_2 = h_5 = h_8$. (g) $h_2 = h_5 = h_8<h_3$. (h) $h_2<h_3 = h_5 = h_8$. (i) $h_3 = h_5 = h_8<h_8$. (j) $h_5 = h_8<h_2<h_3$. (k) $h_2<h_5 = h_8<h_3$. (l) $h_2<h_3<h_5 = h_8$. (m) $h_5 = h_8<h_3<h_2$. (n) $h_3<h_5 = h_8<h_2$. (o) $h_3<h_2<h_5 = h_8$

Download: Full-size image PowerPoint slide

Figure 23. Global Phase portraits for the system (3) in case Ⅰ-ⅳ. Here consider $r>0$, $\rho<0<\sigma<\tau$ when two pairs of saddle are in the same energy level (a)-(f), $r>0$, $\rho<0<\sigma<\tau$ when $h_2 = h_3$ (g)-(l), and $r>0$, $\rho<0<\sigma<\tau$ when $h_2 = h_5$ (m)-(r). (a) $h_2 = h_3<h_5 = h_8$. (b) $h_2 = h_3>h_5 = h_8$. (c) $h_2 = h_5<h_3 = h_8$. (d) $h_2 = h_5>h_3 = h_8$. (e) $h_2 = h_8<h_3 = h_5$. (f) $h_2 = h_8>h_3 = h_5$. (g) $h_2 = h_3<h_5<h_8$. (h) $h_5<h_2 = h_3<h_8$. (i) $h_5<h_8<h_2 = h_3$. (j) $h_2 = h_3<h_8<h_5$. (k) $h_8<h_2 = h_3<h_5$. (l) $h_8<h_5<h_2 = h_3$. (m) $h_2 = h_5<h_3<h_8$. (n) $h_3<h_2 = h_5<h_8$. (o) $h_3<h_8<h_2 = h_5$. (p) $h_2 = h_5<h_8<h_3$. (q) $h_8<h_2 = h_5<h_3$. (r) $h_8<h_3<h_2 = h_5$

Download: Full-size image PowerPoint slide

Figure 24. Global Phase portraits for the system (3) in the case Ⅰ-ⅳ. Here consider $r>0$, $\rho<0<\sigma<\tau$ when $h_2 = h_8$ (a)-(f), $h_3 = h_5$ (g)-(l) and $h_3 = h_8$ (m)-(r). (a) $h_2 = h_8<h_3<h_5$. (b) $h_3<h_2 = h_8<h_5$. (c) $h_3<h_5<h_2 = h_8$. (d) $h_2 = h_8<h_5<h_3$. (e) $h_5<h_2 = h_8<h_3$. (f) $h_5<h_3<h_2 = h_8$. (g) $h_3 = h_5<h_2<h_8$. (h) $h_2<h_3 = h_5<h_8$. (i) $h_2<h_8<h_3 = h_5$. (j) $h_3 = h_5<h_8<h_2$. (k) $h_8<h_3 = h_5<h_2$. (l) $h_8<h_2<h_3 = h_5$. (m) $h_3 = h_8<h_2<h_5$. (n) $h_2<h_3 = h_8<h_5$. (o) $h_2<h_5<h_3 = h_8$. (p) $h_3 = h_8<h_5<h_2$. (q) $h_5<h_3 = h_8<h_2$. (r) $h_5<h_2<h_3 = h_8$

Download: Full-size image PowerPoint slide

Figure 25. Global Phase portraits for the system (3) in the case Ⅰ-ⅳ. Here consider $r>0$, $\rho<0<\sigma<\tau$ when $h_2<h_3<h_5$ (a)-(d), $h_2<h_5<h_3$ (e)-(h), $h_3<h_2<h_5$ (i)-(l), and $h_3<h_5<h_2$ (m)-(p). (a) $h_2<h_3<h_5<h_8$. (b) $h_2<h_3<h_8<h_5$. (c) $h_2<h_8<h_3<h_5$. (d) $h_8<h_3<h_3<h_5$. (e) $h_2<h_5<h_3<h_8$. (f) $h_2<h_5<h_8<h_3$. (g) $h_2<h_8<h_5<h_3$. (h) $h_8<h_2<h_5<h_3$. (i) $h_3<h_2<h_5<h_8$. (j) $h_3<h_2<h_8<h_5$. (k) $h_3<h_8<h_2<h_5$. (l) $h_8<h_3<h_2<h_5$. (m) $h_3<h_5<h_2<h_8$. (n) $h_3<h_5<h_8<h_2$. (o) $h_3<h_8<h_5<h_2$. (p) $h_8<h_3<h_5<h_2$

Download: Full-size image PowerPoint slide

Figure 26. Global phase portraits for the system (3) in the case Ⅰ-ⅳ. Here consider $r>0$, $\rho<0<\sigma<\tau$ when all the saddle are in different energy level and its satisfy $h_5<h_2<h_3$ (a)-(d), $h_5<h_3<h_2$ (e)-(h). (a) $h_5<h_2<h_3<h_8$. (b) $h_5<h_2<h_8<h_3$. (c) $h_5<h_8<h_2<h_3$. (d) $h_8<h_5<h_2<h_3$. (e) $h_5<h_3<h_2<h_8$. (f) $h_5<h_3<h_8<h_2$. (g) $h_5<h_8<h_3<h_2$. (h) $h_8<h_5<h_3<h_2$

Download: Full-size image PowerPoint slide

Figure 29. Local phase portraits at the equilibria of system (3) in the case Ⅱ-ⅱ. (a) $0<r<s$ and $0<\rho<\sigma$. (b) $r<0<s$ and $0<\rho<\sigma$. (c) $0<s<r$ and $\sigma<0<\rho$. (d) $r<0<s$ and $\sigma<0<\rho$. (e) $0<s<r$ and $0<\sigma<\rho$

Download: Full-size image PowerPoint slide

Figure 30. Local phase portraits at the equilibria of system (3) in the case Ⅱ-ⅳ. (a) if $0<r<s$. (b) if $0<s<r$

Download: Full-size image PowerPoint slide

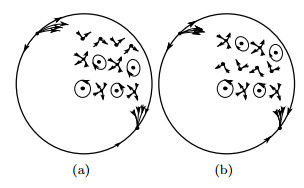

Figure 31. Local phase portraits for system (3) in the case Ⅳ-ⅳ if $0<r<s<t$ and $0<\rho<\sigma<\tau$

Download: Full-size image PowerPoint slide

Figure 2. Local phase portrait at the origin of system (9). (a) $\tilde{w}>0$ and $\kappa>0$. (b) $\tilde{w}>0$ and $\kappa<0$. (c) $\tilde{w}<0$ and $\kappa>0$. (d) $\tilde{w}<0$ and $\kappa<0$

Download: Full-size image PowerPoint slide

Figure 1. Phase portrait in a neighborhood of the $w$-axis of system (10). (a) $\tilde{w}>0$ and $\kappa>0$. (b) $\tilde{w}>0$ and $\kappa<0$. (c) $\tilde{w}<0$ and $\kappa>0$. (d) $\tilde{w}<0$ and $\kappa<0$

Download: Full-size image PowerPoint slide

Figure 3. Blow-up at the origin of system (11). (a) Local phase portrait at the origin of the system (12). (b) Local phase portrait at the origin of the system (11)

Download: Full-size image PowerPoint slide

Figure 4. Assume $(\alpha_3-\tilde{y})/(\alpha_3 \tilde{y})>0$. (a) Local phase portrait in a neighbourhood at the $w$-axis of system (14). (b) Local phase portrait at the origin of system (13)

Download: Full-size image PowerPoint slide

Figure 5. Assume $(\alpha_3-\tilde{y})/(\alpha_3 \tilde{y})<0$. (a) Local phase portrait in a neighbourhood at the $w$-axis of system (14). (b) Local phase portrait at the origin of system (13)

Download: Full-size image PowerPoint slide

Figure 6. Blow-up of the origin of system (15). (a) Local phase portrait at in a neighborhood of the $w$-axis of system (16). (b) Local phase portrait at the origin of system (15)

Download: Full-size image PowerPoint slide

Figure 7. Local phase portrait of the equilibria of for the system (3) in the case Ⅰ-ⅰ

Download: Full-size image PowerPoint slide

Figure 8. Flow of system (3) over the straight lines $x = 0$, $x = \rho$, $y = 0$ and $y = r$ in the case Ⅰ-ⅰ

Download: Full-size image PowerPoint slide

Figure 9. The graphic of the auxiliary function $\nu_2(y)$

Download: Full-size image PowerPoint slide

Figure 10. The graphic of the auxiliary function $\mu_2(x)$. (a) $h_2<h_3$. (b) $h_2>h_3$

Download: Full-size image PowerPoint slide

Figure 12. Local phase portraits of the cusp $e_2 = (\sigma,0)$ and $e_5 = (\sigma,r)$ of system (20) according sign of $\sigma-\rho$ (assuming $\sigma,\rho>0$)

Download: Full-size image PowerPoint slide

Figure 13. Local phase portraits at the equilibria of system (3) in the case Ⅰ-ⅱ for $r>0$. (a) $0<\rho <\sigma$. (b) $0<\sigma <\rho$

Download: Full-size image PowerPoint slide

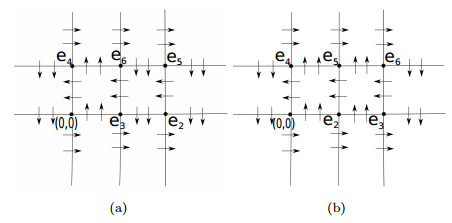

Figure 14. Flow of the vector field (3) over the straight lines $x = 0$, $x = \rho$, $x = \sigma$, $y = 0$ and $y = r$ in the case Ⅰ-ⅱ. (a) $0<\rho< \sigma$. (b) $0<\sigma<\rho$

Download: Full-size image PowerPoint slide

Figure 15. Phase portraits of separatrices in system (3) in the case Ⅰ-ⅱ with $r>0$. (a) $0<\rho< \sigma$. (b) $0<\sigma<\rho$

Download: Full-size image PowerPoint slide

Figure 18. Local phase portrait at the equilibrium $e_6$ of system (21) after translate it to the origin. (a) $(r-s)/(rs)>0$. (b) $(r-s)/(rs)<0$

Download: Full-size image PowerPoint slide

Figure 19. Local phase portraits at the equilibria of system 21 in the case Ⅱ-ⅲ with $\rho>0$. (a) if $0<r<s$. (b) if $0<s<r$

Download: Full-size image PowerPoint slide

Figure 20. Local phase portraits at the equilibria of system (3) in the case Ⅰ-ⅳ. (a) $r>0$ and $0<\rho<\sigma<\tau$. (b) $r>0$ and $\rho<0<\sigma<\tau$

Download: Full-size image PowerPoint slide

Figure 21. The vector field (22) over the straights lines $x = 0$, $x = \rho$, $x = \sigma$, $x = \sigma$, $y = 0$ and $y = r$ if $r>0$ and $\rho<0<\sigma<\tau$. (a) Vector field. (b) General analysis of the separatrices

Download: Full-size image PowerPoint slide

Figure 27. Local phase portraits for the nilpotent equilibria $e_3$ and $e_6$ in the case Ⅰ-ⅳ for $r>0$ shifted to the origin. (a) $e_3$ when $-(r-s)/(rs)>0$. (b) $e_3$ when $-(r-s)/(rs)<0$. (c) $e_6$ when $(r-s)/(rs)>0$. (d) $e_6$ when $(r-s)/(rs)<0$

Download: Full-size image PowerPoint slide

Figure 28. Local phase portrait at the equilibrium $e_9 = (\sigma,s)$ of system (24) after translation to the origin. (a) $(r-s)/(rs)>0$ and $(\rho-\sigma)/(\rho\sigma)>0$. (b) $(r-s)/(rs)>0$ and $(\rho-\sigma)/(\rho\sigma)<0$. (c) $(r-s)/(rs)<0$ and $(\rho-\sigma)/(\rho\sigma)>0$. (d) $(r-s)/(rs)<0$ and $(\rho-\sigma)/(\rho\sigma)<0$

Download: Full-size image PowerPoint slide
