Numerical study of phase transition in van der Waals fluid

Qiaolin He; Chang Liu; Xiaoding Shi

doi:10.3934/dcdsb.2018174

Article Contents

2018, Volume 23, Issue 10: 4519-4540. Doi: 10.3934/dcdsb.2018174

This issue Previous Article Theoretical analysis on a diffusive SIR epidemic model with nonlinear incidence in a heterogeneous environment Next Article Identification of generic stable dynamical systems taking a nonlinear differential approach

Numerical study of phase transition in van der Waals fluid

1.
School of Mathematics, Sichuan University, Chengdu, 610064, China
2.
Department of Mathematics, School of Science, Beijing University of Chemical Technology, Beijing, 100029, China

* Corresponding author: Chang Liu
* Corresponding author: Chang Liu

Received: July 31, 2017

Revised: November 30, 2017

Early access: May 2018

Published: September 2018

The first author is supported by NSFC grant No.11201322, the third author is supported by NSFC grant No.11671027.

Abstract Full Text(HTML) Figure(14) Related Papers Cited by

Abstract

In this article, we use a relaxation scheme for conservation laws to study liquid-vapor phase transition modeled by the van der Waals equation, which introduces a small parameter $ε$ and a new variable. We solve the relaxation system in Lagrangian coordinates for one dimension and solve the system in Eulerian coordinates for two dimension. A second order TVD Runge-Kutta splitting scheme is used in time discretization and upwind or MUSCL scheme is used in space discretization. The long time behavior of the fluid is numerically investigated. If the initial data belongs to elliptic region, the solution converges to two Maxwell states. When the initial data lies in metastable region, the solution either remains in the same phase or converges to the Maxwell states depending to the initial perturbation. If the initial state is in the stable region, the solution remains in that region for all time.

Keywords:

Mathematics Subject Classification: Primary: 76T10, 35L65, 65M06; Secondary: 65D30.

Citation:

Full Text(HTML)

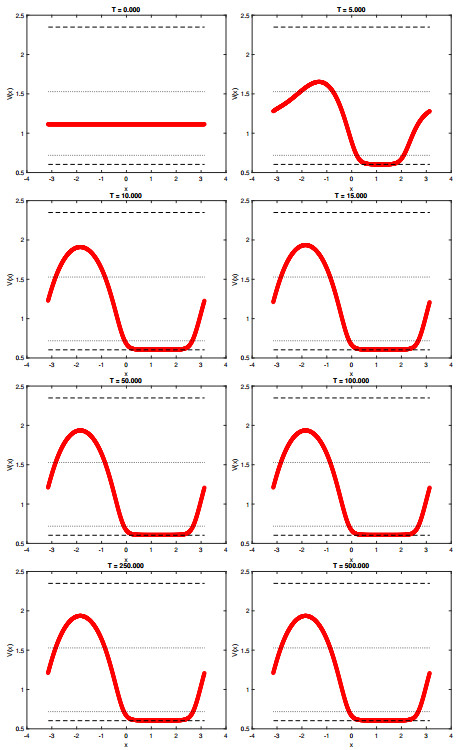

Figure 1. $(V_{0}, u_{0})^{T} = (\frac{1}{0.9}, 0.1 e^{-4x^{2}})^{T}$, $\epsilon = 0.0025$, 1025 grid points. $V(x)$ at various time T. Elliptic region is between the solid lines, and dashed lines represent the Maxwell states.

Download: Full-size image PowerPoint slide

Figure 2. $(V_{0}, u_{0})^{T} = (\frac{1}{0.9}, 0.5 e^{-4x^{2}})^{T} $, $\epsilon = 10^{-8}$, 1025 grid points.

Download: Full-size image PowerPoint slide

Figure 3. $(V_{0}, u_{0})^{T} = (\frac{1}{0.9}, 0.5 e^{-4x^{2}})^{T} $, $\epsilon = 0.005$, 1025 grid points.

Download: Full-size image PowerPoint slide

Figure 4. $(V_{0}, u_{0})^{T} = (\frac{1}{0.9}, 0.5 e^{-4x^{2}})^{T} $, $\epsilon = 0.025$, 1025 grid points.

Download: Full-size image PowerPoint slide

Figure 5. $(V_{0}, u_{0})^{T} = (\frac{1}{0.9}, 0.5 e^{-4x^{2}})^{T}$, $\epsilon = 0.05$, 1025 grid points.

Download: Full-size image PowerPoint slide

Figure 6. $(V_{0}, u_{0})^{T} = (\frac{1}{1.6}, 0.1 e^{-4x^{2}})^{T}$, $\epsilon = 10^{-8}$, 1025 grid points.

Download: Full-size image PowerPoint slide

Figure 7. $(V_{0}, u_{0})^{T} = (\frac{1}{1.6}, 0.5 e^{-4x^{2}})^{T}$, $\epsilon = 10^{-4}$, 1025 grid points.

Download: Full-size image PowerPoint slide

Figure 8. $(V_{0}, u_{0})^{T} = (\frac{1}{0.6+0.4\sin(x)}, 0.5 e^{-4x^{2}})^{T}$, $\epsilon = 10^{-8}$, 1025 grid points.

Download: Full-size image PowerPoint slide

Figure 9. $(V_{0}, u_{0})^{T} = (\frac{1}{1.7}, 0.5 e^{-4x^{2}})^{T} $, $\epsilon = 10^{-8}$, 1025 grid points.

Download: Full-size image PowerPoint slide

Figure 10. $(V_{0}, u_{0})^{T} = (\frac{1}{1.7+0.1\cos(x)}, 0.5 e^{-4x^{2}})^{T}$, $\epsilon = 10^{-8}$, 1025 grid points.

Download: Full-size image PowerPoint slide

Figure 11. $(\rho_{0}, u_{0}, v_{0})^{T} = (1.0, 0.01 e^{-4(x^{2}+y^{2})}, 0.01 e^{-4(x^{2}+y^{2})})^{T}$, $\epsilon = 0.002$, $256 \times 256 $ grid points.

Download: Full-size image PowerPoint slide

Figure 12. $(\rho_{0}, u_{0}, v_{0})^{T} = (1.6, 0.01 e^{-4(x^{2}+y^{2})}, 0.01 e^{-4(x^{2}+y^{2})})^{T}$, $\epsilon = 0.002$, $256 \times 256 $ grid points.

Download: Full-size image PowerPoint slide

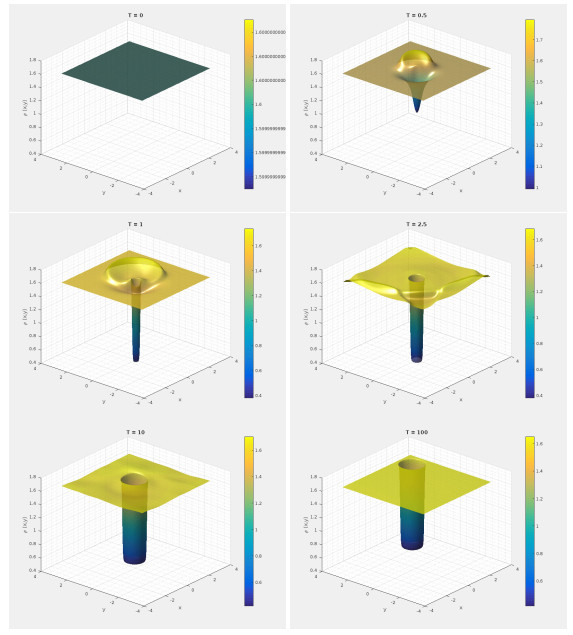

Figure 13. $(\rho_{0}, u_{0}, v_{0})^{T} = (1.6, 0.5 e^{-4(x^{2}+y^{2})}, 0.5 e^{-4(x^{2}+y^{2})})^{T}$, $\epsilon = 0.002$, $256 \times 256 $ grid points.

Download: Full-size image PowerPoint slide

Figure 14. $(\rho_{0}, u_{0}, v_{0})^{T} = (1.7, 0.01 e^{-4(x^{2}+y^{2})}, 0.01 e^{-4(x^{2}+y^{2})})^{T} $, $\epsilon = 0.002$, $256 \times 256 $ grid points.

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	M. Affouf and R. Caflisch, A numerical study of Riemann problem solutions and stability for a system of viscous conservation laws of mixed type, SIAM J. Appl. Math., 51 (1991), 605-634. doi: 10.1137/0151031.
[2]	N. Alikakos, P. W. Bates and G. Fusco, Slow motion for the Cahn-Hilliard equation in one space dimension, J. Differential. Equations, 90 (1991), 81-135. doi: 10.1016/0022-0396(91)90163-4.
[3]	P. W. Bates and P. C. Fife, The dynamics of nucleation for the Cahn-Hilliard equation, SIAM J. Appl. Math., 53 (1993), 990-1008. doi: 10.1137/0153049.
[4]	P. W. Bates and J. Xun, Metastable patterns for the Cahn-Hilliard equation. Ⅱ. Layer dynamics and slow invariant manifold, J. Differential. Equations, 117 (1995), 165-216. doi: 10.1006/jdeq.1995.1052.
[5]	L. Bronsard and R. Kohn, On the slowness of phase boundary motion in one space dimension, Comm. Pure Appl. Math, 43 (1990), 983-997. doi: 10.1002/cpa.3160430804.
[6]	J. Carr, M. Gurtin and M. Slemrod, Structured phase transition on a finite interval, Arch. Rational Mech. Anal., 86 (1984), 317-351. doi: 10.1007/BF00280031.
[7]	B. Cockburn and H. Gau, A model numerical scheme for the propagation of phase transitions in solids, SIAM J. Sci. Comp., 17 (1996), 1092-1121. doi: 10.1137/S106482759426688X.
[8]	E. Fermi, Thermodynamics, 1$^{nd}$ edition, Dover, New York, 1956.
[9]	M. Gander, M. Mei and G. Schmidt, Phase transition for a relaxation model of mixed type with periodic boundary condition, Applied Mathematics Research Express, 2007 (2007), Art. ID abm006, 34 pp. doi: 10.1093/amrx/abm006.
[10]	D. Hoff and M. Khodja, Stability of coexisting phases for compressible van der Waals fluids, SIAM J. Appl. Math., 53 (1993), 1-14. doi: 10.1137/0153001.
[11]	D.-Y. Hsieh and X.-P. Wang, Phase transition in Van der Waals fluid, SIAM J. Appl. Math., 57 (1997), 871-892. doi: 10.1137/S0036139995295165.
[12]	S. Jin and Z. P. Xin, The relaxation schemes for systems of hyperbolic conservation laws in arbitrary space dimensions, Comm. Pure Appl. Math., 48 (1995), 235-276. doi: 10.1002/cpa.3160480303.
[13]	M. Mei, L. Liu and Y. Wong, Phase transitions in a coupled viscoelastic system with periodic initial-boundary condition (Ⅰ): Existence and uniform boundedness, Discrete Cont. Dyn. Syst B, 7 (2007), 825-837. doi: 10.3934/dcdsb.2007.7.825.
[14]	M. Mei, L. Liu and Y. Wong, Phase transitions in a coupled viscoelastic system with periodic initial-boundary condition (Ⅱ): Convergence, Discrete Cont. Dyn. Syst B, 7 (2007), 839-857. doi: 10.3934/dcdsb.2007.7.839.
[15]	R. L. Pego, Front migration in the nonlinear Cahn-Hilliard equation, Proc. Roy. Soc. London Ser. A, 422 (1989), 261-278. doi: 10.1098/rspa.1989.0027.
[16]	C. W. Shu, A numerical method for systems of conservation laws of mixed type admitting hyperbolic flux splitting, J. Comp. Phys, 100 (1992), 424-429. doi: 10.1016/0021-9991(92)90249-X.
[17]	M. Slemrod and J. E. Flaherty, Numerical integration of a Riemann problem for a van der Waals fluids, Phase Transition C. A. Elias and G. John, eds., Elsevier, New York, (1986), 203-212.
[18]	A. Sommerfeld, Thermodynamics and Statistical Mechanics, 1$^{nd}$ edition, Academic Press, New York and London, 1964.
[19]	P. R. Sweby, High resolution schemes using flux limiters for hyperbolic conservation laws, SIAM J. Num. Anal., 21 (1984), 995-1011. doi: 10.1137/0721062.
