Transition between monostability and bistability of a genetic toggle switch in Escherichia coli

Jie Li and
Weinian Zhang^,

Department of Mathematics, Sichuan University, Chengdu, Sichuan 610064, China

^* Corresponding author: Weinian Zhang
^* Corresponding author: Weinian Zhang

Received: December 31, 2018

Revised: June 30, 2019

Early access: December 2019

Published: May 2020

Supported by NSFC grants #11771307, #11831012 and #11821001

Abstract Full Text(HTML) Figure(17) / Table(1) Related Papers Cited by

Abstract

In this paper, we investigate a genetic toggle switch in Escherichia Coli, which models an artificial double-negative feedback loop with two mutually repressors. This model is a planar differential system with three parameters, one of which is an integer power $ n\ge1 $, in the case that repressors 1 and 2 multimerize with $ n $ and 1 subunits respectively and its equilibria are decided by a polynomial of degree $ n+1 $. Since one hardly solves such a polynomial equation, a known result on bistability was given by omitting some small terms under the assumption that the promoters are strong and the expression ratio between the ON state and the OFF state is large. In this paper, determining distribution of zeros qualitatively for the polynomial of high degree, we analytically discuss on the system without the assumption and completely give qualitative properties for all equilibria, which corrects the known result of bistability. Furthermore, we prove that there may occur in the system a codimension 2 bifurcation, called cusp bifurcation, which is a collision of two saddle-node bifurcations and manifests the transition between bistability and monostability. We exhibit the global dynamics of repressors in various cases by analyzing equilibria at infinity and proving nonexistence of closed orbits.

Keywords:

Mathematics Subject Classification: Primary: 34C05, 37G10; Secondary: 34D23, 92D20.

Citation:

Full Text(HTML)

Figure 1. Genetic toggle switch

Download: Full-size image PowerPoint slide

Figure 3. One intersection

Download: Full-size image PowerPoint slide

Figure 4. Three intersections

Download: Full-size image PowerPoint slide

Figure 2. One intersection

Download: Full-size image PowerPoint slide

Figure 15. Critical conditions

Download: Full-size image PowerPoint slide

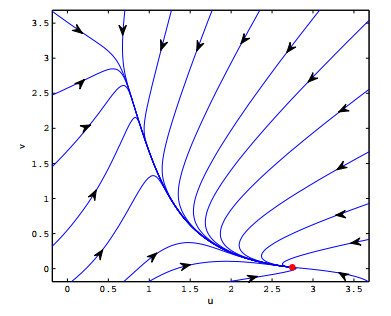

Figure 16. a = 2.8, b = 3

Download: Full-size image PowerPoint slide

Figure 17. a = 1.8, b = 3

Download: Full-size image PowerPoint slide

Figure 5. $ \Phi'(u_2)>0 $

Download: Full-size image PowerPoint slide

Figure 6. $ \Phi'(u_2) = 0 $

Download: Full-size image PowerPoint slide

Figure 7. $ \Phi'(u_2)<0 $

Download: Full-size image PowerPoint slide

Figure 8. (S1)

Download: Full-size image PowerPoint slide

Figure 9. (S2)

Download: Full-size image PowerPoint slide

Figure 10. (S3)

Download: Full-size image PowerPoint slide

Figure 11. (S4)

Download: Full-size image PowerPoint slide

Figure 12. (S5)

Download: Full-size image PowerPoint slide

Figure 14. Global phase portraits

Download: Full-size image PowerPoint slide

Figure 13. Invariant manifolds for systems (45) and (47)

Download: Full-size image PowerPoint slide

Table 1. Distribution of zeros $ u_{01} $ and $ u_{02} $ of $ \Phi' $

(C3-1-1)	$ 0<u_{01}<\zeta_-<\tilde{u}_2<\zeta_+<u_{02}<a $,
(C3-1-2)	$ 0<u_{01}<\zeta_-<\tilde{u}_2<u_{02}=\zeta_+<a $,
(C3-1-3)	$ 0<u_{01}<\zeta_-<\tilde{u}_2<u_{02}<\zeta_+<a $,
(C3-2-1)	$ 0<u_{01}=\zeta_-<\tilde{u}_2<u_{02}<\zeta_+<a $,
(C3-2-2)	$ 0<u_{01}=\zeta_-<\tilde{u}_2<u_{02}=\zeta_+<a $,
(C3-2-3)	$ 0<u_{01}=\zeta_-<\tilde{u}_2<\zeta_+<u_{02}<a $,
(C3-3-1)	$ 0<\zeta_-<u_{01}<\tilde{u}_2<\zeta_+<u_{02}<a $,
(C3-3-2)	$ 0<\zeta_-<u_{01}<\tilde{u}_2<u_{02}=\zeta_+<a $,
(C3-3-3)	$ 0<\zeta_-<u_{01}<\tilde{u}_2<u_{02}<\zeta_+<a $.

| Show Table

DownLoad: CSV
