Global dynamics of a predator-prey system with density-dependent mortality and ratio-dependent functional response

Xin Jiang; Zhikun She; Shigui Ruan

doi:10.3934/dcdsb.2020041

Article Contents

2021, Volume 26, Issue 4: 1967-1990. Doi: 10.3934/dcdsb.2020041

This issue Previous Article Existence and uniqueness of solutions for a hyperbolic Keller–Segel equation Next Article The spatial dynamics of a Zebra mussel model in river environments

Global dynamics of a predator-prey system with density-dependent mortality and ratio-dependent functional response

1.
School of Mathematics and Systems Science, Beihang University, Beijing 100191, China
2.
Department of Mathematics, University of Miami, Coral Gables, FL 33146, USA

^* Corresponding author: Shigui Ruan
^* Corresponding author: Shigui Ruan

Received: June 30, 2019

Revised: September 30, 2019

Early access: February 2020

Published: April 2021

Research of the first author was supported by China Scholarship Council (201806020127) and the Academic Excellence Foundation of BUAA for Ph.D. Students. Research of the second author was supported by Beijing Natural Science Foundation (Z180005) and National Natural Science Foundation of China (11422111)

Abstract Full Text(HTML) Figure(13) / Table(1) Related Papers Cited by

Abstract

In this paper, we study the global dynamics of a density-dependent predator-prey system with ratio-dependent functional response. The main features and challenges are that the origin of this model is a degenerate equilibrium of higher order and there are multiple positive equilibria. Firstly, local qualitative behavior of the system around the origin is explicitly described. Then, based on the dynamics around the origin and other equilibria, global qualitative analysis of the model is carried out. Finally, the existence of Bogdanov-Takens bifurcation (cusp case) of codimension two is analyzed. This shows that the system undergoes various bifurcation phenomena, including saddle-node bifurcation, Hopf bifurcation, and homoclinic bifurcation along with different topological sectors near the degenerate origin. Numerical simulations are presented to illustrate the theoretical results.

Keywords:

Mathematics Subject Classification: 92D25, 34D45, 34C23.

Citation:

Full Text(HTML)

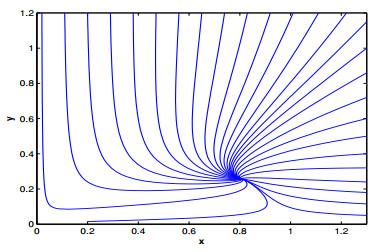

Figure 1. Phase diagram of system (2.2) with $ s = b = 2,\; d = 0.5 $ and $ r = 0.2 $

Download: Full-size image PowerPoint slide

Figure 2. Saddle-node $ (0,0) $ of system (2.11) with $ s = 2,d = 0.5,b = 1,r = 1 $

Download: Full-size image PowerPoint slide

Figure 3. Phase diagram of system (2.2) with $ s = 2,d = 0.5,b = 1,r = 1 $

Download: Full-size image PowerPoint slide

Figure 4. Phase diagram of system (1.3) with $ s = r = 2,d = 0.1,b = 1 $

Download: Full-size image PowerPoint slide

Figure 5. Phase diagram of system (1.3) with $ s = 3,d = 1.5,b = 1,r = 1 $

Download: Full-size image PowerPoint slide

Figure 6. Phase diagram of system (1.3) with $ b = s = 2,d = 1.5,r = 2 $

Download: Full-size image PowerPoint slide

Figure 7. Phase diagram of system (1.3) with $ s = 2,d = 0.625,r = 1,b = 0.8 $

Download: Full-size image PowerPoint slide

Figure 8. Phase diagram of system (1.3) with $ s = 1,d = 0.5,b = 2.5,r = 1 $

Download: Full-size image PowerPoint slide

Figure 9. Phase diagram of system (1.3) with $ s = 0.8,d = 0.5,r = 1,b = 1 $

Download: Full-size image PowerPoint slide

Figure 10. Phase diagram of system (1.3) with $ s = 1.75625,d = 0.2,r = 2,b = 3 $

Download: Full-size image PowerPoint slide

Figure 11. Phase diagram of system (1.3) with $ s = 1.5,d = 0.1,r = 2,b = 2 $

Download: Full-size image PowerPoint slide

Figure 12. Bifurcation sets and the corresponding phase portraits of system (4.6)

Download: Full-size image PowerPoint slide

Figure 13. (Ⅰ): When $ u_1 = -0.1 $ and $ u_2 = 0.515 $ lie in the region Ⅰ, there exists no positive equilibrium; (Ⅱ): When $ u_1 = -0.1 $ and $ u_2 = 0.55 $ lie in the region Ⅱ, there exist a saddle point and an unstable focus; (Ⅲ): When $ u_1 = -0.1 $ and $ u_2 = 0.605 $ lie in the region Ⅲ, there exist a saddle point, a stable focus and an unstable limit cycle; (Ⅳ): When $ u_1 = -0.1 $ and $ u_2 = 0.8 $ lie in the region Ⅳ, there exist a saddle point and an stable focus

Download: Full-size image PowerPoint slide

Table 1. The global dymamics of system (1.3)

Condition $ 1 $		Condition $ 2 $	Global Results	Hopf bifurcation
$ (H0) $	$ d<1 $	$ (K1) $	Theorem 3.3	Does not exist
		$ (K2) $	Theorem 3.3	Does not exist
		$ (K3) $	Theorem 3.3	Does not exist
		$ (K4) $	$ \emptyset $	Does not exist
	$ d>1 $	$ (K1) $	$ \emptyset $	Does not exist
		$ (K2) $	Theorem 3.4	Does not exist
		$ (K3) $	$ \emptyset $	Does not exist
		$ (K4) $	Theorem 3.5	Does not exist
$ (H1) $		$ (K1) $	$ \emptyset $	Does not exist
		$ (K2) $	Theorem 3.6	Remark 1
		$ (K3) $	Theorem 3.7	Does not exist
		$ (K4) $	Theorem 3.8	Does not exist
$ (H2)\wedge (H6) $		$ (K1) $	$ \emptyset $	Does not exist
		$ (K2) $	Theorem 3.9	Remark 3
		$ (K3) $	$ \emptyset $	Does not exist
		$ (K4) $	$ \emptyset $	Does not exist
$ (H3)\wedge (H5) $		$ (K1) $	Theorem 3.10	Does not exist
		$ (K2) $	Theorem 3.10	Does not exist
		$ (K3) $	$ \emptyset $	Does not exist
		$ (K4) $	$ \emptyset $	Does not exist
$ (H4) $		$ (K1) $	Theorem 3.11	Remark 5
		$ (K2) $	Theorem 3.11	Remark 5
		$ (K3) $	Theorem 3.11	Does not exist
		$ (K4) $	$ \emptyset $	Does not exist
Here $(H0):=\overline{(H1)\vee (H2)\vee (H3)\vee (H4)}$, $(K1):=\{b-1-bd\geq0, s-1-bd\geq0\}$, $(K2):=\{b-1-bd<0, s-1-bd\geq 0\}$, $(K3):=\{b-1-bd\geq0,s-1-bd<0\}$ and $(K4):=\{b-1-bd<0, s-1-bd<0\}$

| Show Table

DownLoad: CSV
