A meshless collocation method with a global refinement strategy for reaction-diffusion systems on evolving domains

Siqing Li; Zhonghua Qiao

doi:10.3934/dcdsb.2021057

Article Contents

2022, Volume 27, Issue 1: 601-617. Doi: 10.3934/dcdsb.2021057

This issue Previous Article Asymptotics of singularly perturbed damped wave equations with super-cubic exponent Next Article

A meshless collocation method with a global refinement strategy for reaction-diffusion systems on evolving domains

Siqing Li^1,2, and
Zhonghua Qiao^3, ,

1.
Taiyuan University of Technology, Taiyuan, Shanxi Province, China
2.
SUSTech International Center for Mathematics, Southern University of Science and Technology, Shenzhen, Guangdong Province, China
3.
Department of Applied Mathematics, The Hong Kong Polytechnic University, Hung Hom, Kowloon, Hong Kong

^* Corresponding author
^* Corresponding author

Received: July 31, 2020

Revised: November 30, 2020

Early access: February 2021

Published: January 2022

Abstract Full Text(HTML) Figure(8) / Table(1) Related Papers Cited by

Abstract

Turing-type reaction-diffusion systems on evolving domains arising in biology, chemistry and physics are considered in this paper. The evolving domain is transformed into a reference domain, on which we use a second order semi-implicit backward difference formula (SBDF2) for time integration and a meshless collocation method for space discretization. A global refinement strategy is proposed to reduce the computational cost. Numerical experiments are carried out for different evolving domains. The convergence behavior of the proposed algorithm and the effectiveness of the refinement strategy are verified numerically.

Keywords:

Mathematics Subject Classification: Primary: 35K57; Secondary: 65M70.

Citation:

Full Text(HTML)

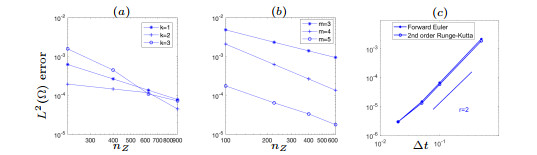

Figure 1. For the SH model with the unit square domain as reference domain, the $ L^2(\Omega) $ error (a) under different overdetermined setting $ n_X = k n_Z $ with $ \Delta t = 0.01, \ T = 10 $; (b) under different kernel smoothness with $ k = 1 $, $ \Delta t = 0.01, \ T = 10 $; (c) comparison between forward Euler method and RK2 with parameters $ \Delta t = [5E-1, 1E-1, 5E-2, 2E-2] $, $ m = 4, \ T = 1 $, $ n_Z = 55^2 $, $ k = 1 $, $ n_X = n_Z $

Download: Full-size image PowerPoint slide

Figure 2. For the SH model with the unit square domain as reference domain, when $ m = 4 $, time step $ \Delta t = 0.005, \ T = 2001 $, the results under fixed discrete sets $ n_Z = 25^2 $ and different global refinement strategies with $ \nu = 1, 2, 3 $ in $ \rm(17) $, $ N_0 = 15^2 $ in $ \rm(18) $: (a) the $ L^2(\Omega) $ error; (b) the number of discrete set $ \sqrt{N_t} $; (c) CPU time

Download: Full-size image PowerPoint slide

Figure 3. In Example 2, when use domain growth function $ \rho(t) = \exp(0.001t) $ and parameters $ D_u = 1, \ D_v = 10, \ a = 0.1, \ b = 0.9, \ \gamma = 10, \ m = 4, \ \Delta t = 0.01 $, the patterns at different time $ t $ of SH model under fixed discrete points $ n_Z = 30^2 $

Download: Full-size image PowerPoint slide

Figure 4. In Example 2, under same setting with Figure 4, the patterns at different time $ t $ of SH model under global refinement with the parameter $ \nu = 1 $ in $ \rm(17) $ and the discrete set increasing from $ n_Z = 18^2 $ to $ n_Z = 35^2 $ in $ \rm(18) $ as show in Figure 8 (a)

Download: Full-size image PowerPoint slide

Figure 5. In Example 3, when use global refinement strategy with discrete sets in the domain as in Figure 8 (b) and the domain growth function as $ \rho(t) = 1+9\sin(\pi t/1000) $, patterns generated by $ D_u = 1, \ D_v = 10, \ a = 0.1, \ b = 0.9, \ \gamma = 10, \ m = 4 $ and $ \Delta t = 0.005 $

Download: Full-size image PowerPoint slide

Figure 6. In Example 4, in the hexagon domain, when use global refinement strategy with discrete sets in the domain as in Figure 8 (c) and the domain growth function as $ \rho(t) = \exp(0.001t) $, patterns generated by $ D_u = 1, \ D_v = 10, \ a = 0.1, \ b = 0.9, \ \gamma = 114, \ m = 4 $ and $ \Delta t = 0.005 $

Download: Full-size image PowerPoint slide

Figure 7. In Example 5, in the star-shape domain, when use global refinement strategy with discrete sets in the domain as in Figure 8 (d) and the domain growth function as $ \rho(t) = \exp(0.001t) $, patterns generated by $ D_u = 1, \ D_v = 10, \ a = 0.1, \ b = 0.9, \ \gamma = 10, \ m = 4 $ and $ \Delta t = 0.005 $

Download: Full-size image PowerPoint slide

Figure 8. For the SH model, the change of trial centers $ N_t $ or $ \sqrt{N_t} $ as number of time steps $ n_T $ increases under different global refinement settings for different examples: (a) for EX2, in the square domain the $ \nu = 1 $ in $ \rm(17) $; (b) for EX3, in the square domain, $ \nu = 5 $ in $ \rm(17) $; (c) for EX4, in the hexagon domain, $ \nu = 1 $ in $ \rm(17) $; (d) for EX5, in the star-shape domain, $ \nu = 2 $ in $ \rm(17) $

Download: Full-size image PowerPoint slide

Table 1. When $ \Delta t = 0.005 $, $ T = 750 $ and $ m = 6, \ \epsilon = 5 $ in SH model, $ L^2(\Omega) $ errors and convergence rates comparison between our scheme and [8,Example 1]

$ N $	$ e_h $ error	Rate	$ e_h $ ($ r=3 $ in [8,Example 1])	Rate
$ 10^2 $	$ 0.807*10^{-3} $		$ 0.171*10^{-3} $
$ 20^2 $	$ 0.489*10^{-4} $	$ 4.042 $	$ 0.106*10^{-4} $	$ 4.001 $
$ 30^2 $	$ 0.807*10^{-5} $	$ 4.443 $	$ 0.209*10^{-5} $	$ 4.002 $
