## Global stability of HIV/HTLV co-infection model with CTL-mediated immunity

 1 Department of Mathematics, Faculty of Science, King Abdulaziz University, P.O. Box 80203, Jeddah 21589, Saudi Arabia 2 Department of Mathematics, Faculty of Science, Al-Azhar University, Assiut Branch, Assiut, Egypt 3 Department of Mathematics, Faculty of Science, University of Jeddah, P. O. Box 80327, Jeddah 21589, Saudi Arabia

* Corresponding author: A. M. Elaiw

Received  July 2020 Revised  November 2020 Early access April 2021

Mathematical modeling of human immunodeficiency virus (HIV) and human T-lymphotropic virus type Ⅰ (HTLV-I) mono-infections has received considerable attention during the last decades. These two viruses share the same way of transmission between individuals; through direct contact with certain contaminated body fluids. Therefore, a person can be co-infected with both viruses. In the present paper, we construct and analyze a new HIV/HTLV-I co-infection model under the effect of Cytotoxic T lymphocytes (CTLs) immune response. The model describes the interaction between susceptible CD$4^{+}$T cells, silent HIV-infected cells, active HIV-infected cells, silent HTLV-infected cells, Tax-expressing (active) HTLV-infected cells, free HIV particles, HIV-specific CTLs and HTLV-specific CTLs. The HIV can spread by two routes of transmission, virus-to-cell (VTC) and cell-to-cell (CTC). Both active and silent HIV-infected cells can infect the susceptible CD$4^{+}$T cells by CTC mechanism. On the other side, HTLV-I has only one mode of transmission via direct cell-to-cell contact. The well-posedness of the model is established by showing that the solutions of the model are nonnegative and bounded. We calculate all possible equilibria and define the key threshold parameters which govern the existence and stability of all equilibria of the model. We explore the global asymptotic stability of all equilibria by utilizing Lyapunov function and LaSalle's invariance principle. We have discussed the influence of CTL immune response on the co-infection dynamics. We have presented numerical simulations to justify the applicability and effectiveness of the theoretical results. In addition, we evaluate the effect of HTLV-I infection on the HIV dynamics and vice versa.

Citation: A. M. Elaiw, N. H. AlShamrani. Global stability of HIV/HTLV co-infection model with CTL-mediated immunity. Discrete & Continuous Dynamical Systems - B, doi: 10.3934/dcdsb.2021108
##### References:
 [1] L. Agosto, M. Herring, W. Mothes and A. Henderson, HIV-1-infected CD4+ T cells facilitate latent infection of resting CD4+ T cells through cell-cell contact, Cell, 24 (2018), 2088-2100.   Google Scholar [2] C. R. M. Bangham, CTL quality and the control of human retroviral infections, European Journal of Immunology, 39 (2009), 1700-1712.   Google Scholar [3] E. A. Barbashin, Introduction to the Theory of Stability, Wolters-Noordhoff, Groningen, 1970.  Google Scholar [4] M. A. Beilke, K. P. Theall, M. O'Brien, J. L. Clayton, S. M. Benjamin, E. L. Winsor and P. J. Kissinger, Clinical outcomes and disease progression among patients coinfected with HIV and human T lymphotropic virus types 1 and 2, Clinical Infectious Diseases, 39 (2004), 256-263.   Google Scholar [5] C. Brites, J. Sampalo and A. Oliveira, HIV/human T-cell lymphotropic virus coinfection revisited: Impact on AIDS progression, AIDS Reviews, 11 (2009), 8-16.   Google Scholar [6] D. S. Callaway and A. S. Perelson, HIV-1 infection and low steady state viral loads, Bulletin of Mathematical Biology, 64 (2002), 29-64.   Google Scholar [7] C. Casoli, E. Pilotti and U. Bertazzoni, Molecular and cellular interactions of HIV-1/HTLV coinfection and impact on AIDS progression, AIDS Reviews, 9 (2007), 140-149.   Google Scholar [8] A. G. Cervantes-Perez and E. Avila-Vales, Dynamical analysis of multipathways and multidelays of general virus dynamics model, International Journal of Bifurcation and Chaos, 29 (2019), 1950031. doi: 10.1142/S0218127419500317.  Google Scholar [9] T.-W. Chun, L. Stuyver, S. B. Mizell, L. A. Ehler, J. A. M. Mican, M. Baseler, A. L. Lloyd, M. A. Nowak and A. S. Fauci, Presence of an inducible HIV-1 latent reservoir during highly active antiretroviral therapy, Proceedings of the National Academy of Sciences of the USA, 94 (1997), 13193-13197.   Google Scholar [10] A. M. Elaiw, Global properties of a class of HIV models, Nonlinear Analysis: Real World Applications, 11 (2010), 2253-2263.  doi: 10.1016/j.nonrwa.2009.07.001.  Google Scholar [11] A. M. Elaiw and N. A. Almuallem, Global dynamics of delay-distributed HIV infection models with differential drug efficacy in cocirculating target cells, Mathematical Methods in the Applied Sciences, 39 (2016), 4-31.  doi: 10.1002/mma.3453.  Google Scholar [12] A. M. Elaiw and N. H. AlShamrani, Stability of a general CTL-mediated immunity HIV infection model with silent infected cell-to-cell spread, Advances in Difference Equations, 2020 (2020), Art. No. 355. doi: 10.1186/s13662-020-02818-3.  Google Scholar [13] A. M. Elaiw and S. A. Azoz, Global properties of a class of HIV infection models with Beddington-DeAngelis functional response, Mathematical Methods in the Applied Sciences, 36 (2013), 383-394.  doi: 10.1002/mma.2596.  Google Scholar [14] A. M. Elaiw and E. K. Elnahary, Analysis of general humoral immunity HIV dynamics model with HAART and distributed delays, Mathematics, 7 (2019), Art. No. 157. Google Scholar [15] A. M. Elaiw, I. A. Hassanien and S. A. Azoz, Global stability of HIV infection models with intracellular delays, Journal of the Korean Mathematical Society, 49 (2012), 779-794.  doi: 10.4134/JKMS.2012.49.4.779.  Google Scholar [16] A. M. Elaiw, A. A. Raezah and S. A. Azoz, Stability of delayed HIV dynamics models with two latent reservoirs and immune impairment, Advances in Difference Equations, 2018 (2018), 25 pp. doi: 10.1186/s13662-018-1869-3.  Google Scholar [17] V. E. V. Geddes, D. P. José, F. E. Leal, D. F. Nixond, A. Tanuri and R. S. Aguiar, HTLV-1 Tax activates HIV-1 transcription in latency models, Virology, 504 (2017), 45-51.   Google Scholar [18] H. Gomez-Acevedo and M. Y. Li, Backward bifurcation in a model for HTLV-I infection of CD4$^{+}$ T cells, Bulletin of Mathematical Biology, 67 (2005), 101-114.  doi: 10.1016/j.bulm.2004.06.004.  Google Scholar [19] H. Gomez-Acevedo, M. Y. Li and S. Jacobson, Multi-stability in a model for CTL response to HTLV-I infection and its consequences in HAM/TSP development, and prevention, Bulletin of Mathematical Biology, 72 (2010), 681-696.  doi: 10.1007/s11538-009-9465-z.  Google Scholar [20] T. Guo, Z. Qiu and L. Rong, Analysis of an HIV model with immune responses and cell-to-cell transmission, Bulletin of the Malaysian Mathematical Sciences Society, 43 (2020), 581-607.  doi: 10.1007/s40840-018-0699-5.  Google Scholar [21] T. Inoue, T. Kajiwara and T. Saski, Global stability of models of humoral immunity against multiple viral strains, Journal of Biological Dynamics, 4 (2010), 282-295.  doi: 10.1080/17513750903180275.  Google Scholar [22] C. Isache, M. Sands, N. Guzman and D. Figueroa, HTLV-1 and HIV-1 co-infection: A case report and review of the literature, IDCases, 4 (2016), 53-55.   Google Scholar [23] S. Iwami, J. S. Takeuchi, S. Nakaoka, F. Mammano, F. Clavel, H. Inaba, T. Kobayashi, N. Misawa, K. Aihara, Y. Koyanagi and K. Sato, Cell-to-cell infection by HIV contributes over half of virus infection, Elife, 4 (2015), e08150. Google Scholar [24] C. Jolly and Q. Sattentau, Retroviral spread by induction of virological synapses, Traffic, 5 (2004), 643-650.   Google Scholar [25] N. L. Komarova and D. Wodarz, Virus dynamics in the presence of synaptic transmission, Mathematical Biosciences, 242 (2013), 161-171.  doi: 10.1016/j.mbs.2013.01.003.  Google Scholar [26] A. Korobeinikov, Global properties of basic virus dynamics models, Bulletin of Mathematical Biology, 66 (2004), 879-883.  doi: 10.1016/j.bulm.2004.02.001.  Google Scholar [27] J. P. LaSalle, The Stability of Dynamical Systems, SIAM, Philadelphia, 1976.  Google Scholar [28] F. Li and W. Ma, Dynamics analysis of an HTLV-1 infection model with mitotic division of actively infected cells and delayed CTL immune response, Mathematical Methods in the Applied Sciences, 41 (2018), 3000-3017.  doi: 10.1002/mma.4797.  Google Scholar [29] M. Y. Li and A. G. Lim, Modelling the role of tax expression in HTLV-1 persisence in vivo, Bulletin of Mathematical Biology, 73 (2011), 3008-3029.  doi: 10.1007/s11538-011-9657-1.  Google Scholar [30] M. Y. Li and H. Shu, Global dynamics of a mathematical model for HTLV-I infection of CD4+ T cells with delayed CTL response, Nonlinear Analysis: Real World Applications, 13 (2012), 1080-1092.  doi: 10.1016/j.nonrwa.2011.02.026.  Google Scholar [31] S. Li and Y. Zhou, Backward bifurcation of an HTLV-I model with immune response, Discrete and Continuous Dynamical Systems Series B, 21 (2016), 863-881.  doi: 10.3934/dcdsb.2016.21.863.  Google Scholar [32] X. Li and S. Fu, Global stability of a virus dynamics model with intracellular delay and CTL immune response, Mathematical Methods in the Applied Sciences, 38 (2015), 420-430.  doi: 10.1002/mma.3078.  Google Scholar [33] A. G. Lim and P. K. Maini, HTLV-Iinfection: A dynamic struggle between viral persistence and host immunity, Journal of Theoretical Biology, 352 (2014), 92-108.  doi: 10.1016/j.jtbi.2014.02.022.  Google Scholar [34] Y. Liu and X. Liu, Global properties and bifurcation analysis of an HIV-1 infection model with two target cells, Computational and Applied Mathematics, 37 (2018), 3455-3472.  doi: 10.1007/s40314-017-0523-0.  Google Scholar [35] C. Lv, L. Huang and Z. Yuan, Global stability for an HIV-1 infection model with Beddington-DeAngelis incidence rate and CTL immune response, Communications in Nonlinear Science and Numerical Simulation, 19 (2014), 121-127.  doi: 10.1016/j.cnsns.2013.06.025.  Google Scholar [36] A. M. Lyapunov, The General Problem of the Stability of Motion, Taylor & Francis, Ltd., London, 1992.  Google Scholar [37] Y. Muroya, Y. Enatsu and H. Li, Global stability of a delayed HTLV-I infection model with a class of nonlinear incidence rates and CTLs immune response, Applied Mathematics and Computation, 219 (2013), 10559-10573.  doi: 10.1016/j.amc.2013.03.081.  Google Scholar [38] M. A. Nowak and R. M. May, Virus Dynamics: Mathematical Principles of Immunology and Virology, Oxford University Press, Oxford, 2000.   Google Scholar [39] M. A. Nowak and C. R. M. Bangham., Population dynamics of immune responses to persistent viruses, Science, 272 (1996), 74-79.   Google Scholar [40] X. Pan, Y. Chen and H. Shu, Rich dynamics in a delayed HTLV-I infection model: Stability switch, multiple stable cycles, and torus, Journal of Mathematical Analysis and Applications, 479 (2019), 2214-2235.  doi: 10.1016/j.jmaa.2019.07.051.  Google Scholar [41] A. S. Perelson, P. Essunger, Y. Cao, M. Vesanen, A. Hurley, K. Saksela, M. Markowitz and D. D. Ho, Decay characteristics of HIV-1-infected compartments during combination therapy, Nature, 387 (1997), 188-191.   Google Scholar [42] H. Sato, J. Orenstein, D. Dimitrov and M. Martin, Cell-to-cell spread of HIV-1 occurs within minutes and may not involve the participation of virus particles, Virology, 186 (1992), 712-724.   Google Scholar [43] X. Shi, X. Zhou and X. Song, Dynamical behavior of a delay virus dynamics model with CTL immune response, Nonlinear Analysis: Real World Applications, 11 (2010), 1795-1809.  doi: 10.1016/j.nonrwa.2009.04.005.  Google Scholar [44] H. Shu, L. Wang and J. Watmough, Global stability of a nonlinear viral infection model with infinitely distributed intracellular delays and CTL imune responses, SIAM Journal of Applied Mathematics, 73 (2013), 1280-1302.  doi: 10.1137/120896463.  Google Scholar [45] A. Sigal, J. T. Kim, A. B. Balazs, E. Dekel, A. Mayo, R. Milo and D. Baltimore, Cell-to-cell spread of HIV permits ongoing replication despite antiretroviral therapy, Nature, 477 (2011), 95-98.   Google Scholar [46] X. Song and Y. Li, Global stability and periodic solution of a model for HTLV-1 infection and ATL progression, Applied Mathematics and Computation, 180 (2006), 401-410.  doi: 10.1016/j.amc.2005.12.022.  Google Scholar [47] M. Sourisseau, N. Sol-Foulon, F. Porrot, F. Blanchet and O. Schwartz, Inefficient human immunodeficiency virus replication in mobile lymphocytes, Journal of Virology, 81 (2007), 1000-1012.   Google Scholar [48] M. Tulius Silva, O. de Melo Espíndola, A. C. Bezerra Leite and A. Araújo, Neurological aspects of HIV/human T lymphotropic virus coinfection, AIDS Reviews, 11 (2009), 71-78.   Google Scholar [49] A. Vandormael, F. Rego, S. Danaviah, L. C. J. Alcantara, D. R. Boulware and T. de Oliveira, CD4+ T-cell count may not be a useful strategy to monitor antiretroviral therapy response in HTLV-1/HIV co-infected patients, Current HIV Research, 15 (2017), 225-231.   Google Scholar [50] C. Vargas-De-Leon, The complete classification for global dynamics of amodel for the persistence of HTLV-1 infection, Applied Mathematics and Computation, 237 (2014), 489-493.  doi: 10.1016/j.amc.2014.03.138.  Google Scholar [51] J. Wang, M. Guo, X. Liu and Z. Zhao, Threshold dynamics of HIV-1 virus model with cell-to-cell transmission, cell-mediated immune responses and distributed delay, Applied Mathematics and Computation, 291 (2016) 149–161. doi: 10.1016/j.amc.2016.06.032.  Google Scholar [52] L. Wang, M. Y. Li and D. Kirschner, Mathematical analysis of the global dynamics of a model for HTLV-I infection and ATL progression, Mathematical Biosciences, 179 (2002), 207-217.  doi: 10.1016/S0025-5564(02)00103-7.  Google Scholar [53] L. Wang, Z. Liu, Y. Li and D. Xu, Complete dynamical analysis for a nonlinear HTLV-I infection model with distributed delay, CTL response and immune impairment, Discrete & Continuous Dynamical Systems, 25 (2020), 917-933.  doi: 10.3934/dcdsb.2019196.  Google Scholar [54] W. Wang, X. Wang, K. Guo and W. Ma, Global analysis of a diffusive viral model with cell-to-cell infection and incubation period, Mathematical Methods in the Applied Sciences, 43 (2020), 5963-5978.  doi: 10.1002/mma.6339.  Google Scholar [55] Y. Wang, J. Liu and J. M. Heffernan, Viral dynamics of an HTLV-I infection model with intracellular delay and CTL immune response delay, Journal of Mathematical Analysis and Applications, 459 (2018), 506-527.  doi: 10.1016/j.jmaa.2017.10.027.  Google Scholar [56] D. Wodarz and C. R. M. Bangham, Evolutionary dynamics of HTLV-I, Journal of Molecular Evolution, 50 (2000), 448-455.   Google Scholar [57] J. K. Wong, M. Hezareh, H. F. Gunthard, D. V. Havlir, C. C. Ignacio, C. A. Spina and D. D. Richman, Recovery of replication-competent HIV despite prolonged suppression of plasma viremia, Science, 278 (1997), 1291-1295.   Google Scholar [58] H. Yan, Y. Xiao, Q. Yan and X. Liu, Dynamics of an HIV-1 virus model with both virus-to-cell and cell-to-cell transmissions, general incidence rate, intracellular delay, and CTL immune responses, Mathematical Methods in the Applied Sciences, 42 (2019), 6385-6406.  doi: 10.1002/mma.5747.  Google Scholar [59] N. Yamamoto, M. Okada, Y. Koyanagi, M. Kannagi and Y. Hinuma, Transformation of human leukocytes by cocultivation with an adult T cell leukemia virus producer cell line, Science, 217 (1982), 737-739.   Google Scholar

show all references

##### References:
 [1] L. Agosto, M. Herring, W. Mothes and A. Henderson, HIV-1-infected CD4+ T cells facilitate latent infection of resting CD4+ T cells through cell-cell contact, Cell, 24 (2018), 2088-2100.   Google Scholar [2] C. R. M. Bangham, CTL quality and the control of human retroviral infections, European Journal of Immunology, 39 (2009), 1700-1712.   Google Scholar [3] E. A. Barbashin, Introduction to the Theory of Stability, Wolters-Noordhoff, Groningen, 1970.  Google Scholar [4] M. A. Beilke, K. P. Theall, M. O'Brien, J. L. Clayton, S. M. Benjamin, E. L. Winsor and P. J. Kissinger, Clinical outcomes and disease progression among patients coinfected with HIV and human T lymphotropic virus types 1 and 2, Clinical Infectious Diseases, 39 (2004), 256-263.   Google Scholar [5] C. Brites, J. Sampalo and A. Oliveira, HIV/human T-cell lymphotropic virus coinfection revisited: Impact on AIDS progression, AIDS Reviews, 11 (2009), 8-16.   Google Scholar [6] D. S. Callaway and A. S. Perelson, HIV-1 infection and low steady state viral loads, Bulletin of Mathematical Biology, 64 (2002), 29-64.   Google Scholar [7] C. Casoli, E. Pilotti and U. Bertazzoni, Molecular and cellular interactions of HIV-1/HTLV coinfection and impact on AIDS progression, AIDS Reviews, 9 (2007), 140-149.   Google Scholar [8] A. G. Cervantes-Perez and E. Avila-Vales, Dynamical analysis of multipathways and multidelays of general virus dynamics model, International Journal of Bifurcation and Chaos, 29 (2019), 1950031. doi: 10.1142/S0218127419500317.  Google Scholar [9] T.-W. Chun, L. Stuyver, S. B. Mizell, L. A. Ehler, J. A. M. Mican, M. Baseler, A. L. Lloyd, M. A. Nowak and A. S. Fauci, Presence of an inducible HIV-1 latent reservoir during highly active antiretroviral therapy, Proceedings of the National Academy of Sciences of the USA, 94 (1997), 13193-13197.   Google Scholar [10] A. M. Elaiw, Global properties of a class of HIV models, Nonlinear Analysis: Real World Applications, 11 (2010), 2253-2263.  doi: 10.1016/j.nonrwa.2009.07.001.  Google Scholar [11] A. M. Elaiw and N. A. Almuallem, Global dynamics of delay-distributed HIV infection models with differential drug efficacy in cocirculating target cells, Mathematical Methods in the Applied Sciences, 39 (2016), 4-31.  doi: 10.1002/mma.3453.  Google Scholar [12] A. M. Elaiw and N. H. AlShamrani, Stability of a general CTL-mediated immunity HIV infection model with silent infected cell-to-cell spread, Advances in Difference Equations, 2020 (2020), Art. No. 355. doi: 10.1186/s13662-020-02818-3.  Google Scholar [13] A. M. Elaiw and S. A. Azoz, Global properties of a class of HIV infection models with Beddington-DeAngelis functional response, Mathematical Methods in the Applied Sciences, 36 (2013), 383-394.  doi: 10.1002/mma.2596.  Google Scholar [14] A. M. Elaiw and E. K. Elnahary, Analysis of general humoral immunity HIV dynamics model with HAART and distributed delays, Mathematics, 7 (2019), Art. No. 157. Google Scholar [15] A. M. Elaiw, I. A. Hassanien and S. A. Azoz, Global stability of HIV infection models with intracellular delays, Journal of the Korean Mathematical Society, 49 (2012), 779-794.  doi: 10.4134/JKMS.2012.49.4.779.  Google Scholar [16] A. M. Elaiw, A. A. Raezah and S. A. Azoz, Stability of delayed HIV dynamics models with two latent reservoirs and immune impairment, Advances in Difference Equations, 2018 (2018), 25 pp. doi: 10.1186/s13662-018-1869-3.  Google Scholar [17] V. E. V. Geddes, D. P. José, F. E. Leal, D. F. Nixond, A. Tanuri and R. S. Aguiar, HTLV-1 Tax activates HIV-1 transcription in latency models, Virology, 504 (2017), 45-51.   Google Scholar [18] H. Gomez-Acevedo and M. Y. Li, Backward bifurcation in a model for HTLV-I infection of CD4$^{+}$ T cells, Bulletin of Mathematical Biology, 67 (2005), 101-114.  doi: 10.1016/j.bulm.2004.06.004.  Google Scholar [19] H. Gomez-Acevedo, M. Y. Li and S. Jacobson, Multi-stability in a model for CTL response to HTLV-I infection and its consequences in HAM/TSP development, and prevention, Bulletin of Mathematical Biology, 72 (2010), 681-696.  doi: 10.1007/s11538-009-9465-z.  Google Scholar [20] T. Guo, Z. Qiu and L. Rong, Analysis of an HIV model with immune responses and cell-to-cell transmission, Bulletin of the Malaysian Mathematical Sciences Society, 43 (2020), 581-607.  doi: 10.1007/s40840-018-0699-5.  Google Scholar [21] T. Inoue, T. Kajiwara and T. Saski, Global stability of models of humoral immunity against multiple viral strains, Journal of Biological Dynamics, 4 (2010), 282-295.  doi: 10.1080/17513750903180275.  Google Scholar [22] C. Isache, M. Sands, N. Guzman and D. Figueroa, HTLV-1 and HIV-1 co-infection: A case report and review of the literature, IDCases, 4 (2016), 53-55.   Google Scholar [23] S. Iwami, J. S. Takeuchi, S. Nakaoka, F. Mammano, F. Clavel, H. Inaba, T. Kobayashi, N. Misawa, K. Aihara, Y. Koyanagi and K. Sato, Cell-to-cell infection by HIV contributes over half of virus infection, Elife, 4 (2015), e08150. Google Scholar [24] C. Jolly and Q. Sattentau, Retroviral spread by induction of virological synapses, Traffic, 5 (2004), 643-650.   Google Scholar [25] N. L. Komarova and D. Wodarz, Virus dynamics in the presence of synaptic transmission, Mathematical Biosciences, 242 (2013), 161-171.  doi: 10.1016/j.mbs.2013.01.003.  Google Scholar [26] A. Korobeinikov, Global properties of basic virus dynamics models, Bulletin of Mathematical Biology, 66 (2004), 879-883.  doi: 10.1016/j.bulm.2004.02.001.  Google Scholar [27] J. P. LaSalle, The Stability of Dynamical Systems, SIAM, Philadelphia, 1976.  Google Scholar [28] F. Li and W. Ma, Dynamics analysis of an HTLV-1 infection model with mitotic division of actively infected cells and delayed CTL immune response, Mathematical Methods in the Applied Sciences, 41 (2018), 3000-3017.  doi: 10.1002/mma.4797.  Google Scholar [29] M. Y. Li and A. G. Lim, Modelling the role of tax expression in HTLV-1 persisence in vivo, Bulletin of Mathematical Biology, 73 (2011), 3008-3029.  doi: 10.1007/s11538-011-9657-1.  Google Scholar [30] M. Y. Li and H. Shu, Global dynamics of a mathematical model for HTLV-I infection of CD4+ T cells with delayed CTL response, Nonlinear Analysis: Real World Applications, 13 (2012), 1080-1092.  doi: 10.1016/j.nonrwa.2011.02.026.  Google Scholar [31] S. Li and Y. Zhou, Backward bifurcation of an HTLV-I model with immune response, Discrete and Continuous Dynamical Systems Series B, 21 (2016), 863-881.  doi: 10.3934/dcdsb.2016.21.863.  Google Scholar [32] X. Li and S. Fu, Global stability of a virus dynamics model with intracellular delay and CTL immune response, Mathematical Methods in the Applied Sciences, 38 (2015), 420-430.  doi: 10.1002/mma.3078.  Google Scholar [33] A. G. Lim and P. K. Maini, HTLV-Iinfection: A dynamic struggle between viral persistence and host immunity, Journal of Theoretical Biology, 352 (2014), 92-108.  doi: 10.1016/j.jtbi.2014.02.022.  Google Scholar [34] Y. Liu and X. Liu, Global properties and bifurcation analysis of an HIV-1 infection model with two target cells, Computational and Applied Mathematics, 37 (2018), 3455-3472.  doi: 10.1007/s40314-017-0523-0.  Google Scholar [35] C. Lv, L. Huang and Z. Yuan, Global stability for an HIV-1 infection model with Beddington-DeAngelis incidence rate and CTL immune response, Communications in Nonlinear Science and Numerical Simulation, 19 (2014), 121-127.  doi: 10.1016/j.cnsns.2013.06.025.  Google Scholar [36] A. M. Lyapunov, The General Problem of the Stability of Motion, Taylor & Francis, Ltd., London, 1992.  Google Scholar [37] Y. Muroya, Y. Enatsu and H. Li, Global stability of a delayed HTLV-I infection model with a class of nonlinear incidence rates and CTLs immune response, Applied Mathematics and Computation, 219 (2013), 10559-10573.  doi: 10.1016/j.amc.2013.03.081.  Google Scholar [38] M. A. Nowak and R. M. May, Virus Dynamics: Mathematical Principles of Immunology and Virology, Oxford University Press, Oxford, 2000.   Google Scholar [39] M. A. Nowak and C. R. M. Bangham., Population dynamics of immune responses to persistent viruses, Science, 272 (1996), 74-79.   Google Scholar [40] X. Pan, Y. Chen and H. Shu, Rich dynamics in a delayed HTLV-I infection model: Stability switch, multiple stable cycles, and torus, Journal of Mathematical Analysis and Applications, 479 (2019), 2214-2235.  doi: 10.1016/j.jmaa.2019.07.051.  Google Scholar [41] A. S. Perelson, P. Essunger, Y. Cao, M. Vesanen, A. Hurley, K. Saksela, M. Markowitz and D. D. Ho, Decay characteristics of HIV-1-infected compartments during combination therapy, Nature, 387 (1997), 188-191.   Google Scholar [42] H. Sato, J. Orenstein, D. Dimitrov and M. Martin, Cell-to-cell spread of HIV-1 occurs within minutes and may not involve the participation of virus particles, Virology, 186 (1992), 712-724.   Google Scholar [43] X. Shi, X. Zhou and X. Song, Dynamical behavior of a delay virus dynamics model with CTL immune response, Nonlinear Analysis: Real World Applications, 11 (2010), 1795-1809.  doi: 10.1016/j.nonrwa.2009.04.005.  Google Scholar [44] H. Shu, L. Wang and J. Watmough, Global stability of a nonlinear viral infection model with infinitely distributed intracellular delays and CTL imune responses, SIAM Journal of Applied Mathematics, 73 (2013), 1280-1302.  doi: 10.1137/120896463.  Google Scholar [45] A. Sigal, J. T. Kim, A. B. Balazs, E. Dekel, A. Mayo, R. Milo and D. Baltimore, Cell-to-cell spread of HIV permits ongoing replication despite antiretroviral therapy, Nature, 477 (2011), 95-98.   Google Scholar [46] X. Song and Y. Li, Global stability and periodic solution of a model for HTLV-1 infection and ATL progression, Applied Mathematics and Computation, 180 (2006), 401-410.  doi: 10.1016/j.amc.2005.12.022.  Google Scholar [47] M. Sourisseau, N. Sol-Foulon, F. Porrot, F. Blanchet and O. Schwartz, Inefficient human immunodeficiency virus replication in mobile lymphocytes, Journal of Virology, 81 (2007), 1000-1012.   Google Scholar [48] M. Tulius Silva, O. de Melo Espíndola, A. C. Bezerra Leite and A. Araújo, Neurological aspects of HIV/human T lymphotropic virus coinfection, AIDS Reviews, 11 (2009), 71-78.   Google Scholar [49] A. Vandormael, F. Rego, S. Danaviah, L. C. J. Alcantara, D. R. Boulware and T. de Oliveira, CD4+ T-cell count may not be a useful strategy to monitor antiretroviral therapy response in HTLV-1/HIV co-infected patients, Current HIV Research, 15 (2017), 225-231.   Google Scholar [50] C. Vargas-De-Leon, The complete classification for global dynamics of amodel for the persistence of HTLV-1 infection, Applied Mathematics and Computation, 237 (2014), 489-493.  doi: 10.1016/j.amc.2014.03.138.  Google Scholar [51] J. Wang, M. Guo, X. Liu and Z. Zhao, Threshold dynamics of HIV-1 virus model with cell-to-cell transmission, cell-mediated immune responses and distributed delay, Applied Mathematics and Computation, 291 (2016) 149–161. doi: 10.1016/j.amc.2016.06.032.  Google Scholar [52] L. Wang, M. Y. Li and D. Kirschner, Mathematical analysis of the global dynamics of a model for HTLV-I infection and ATL progression, Mathematical Biosciences, 179 (2002), 207-217.  doi: 10.1016/S0025-5564(02)00103-7.  Google Scholar [53] L. Wang, Z. Liu, Y. Li and D. Xu, Complete dynamical analysis for a nonlinear HTLV-I infection model with distributed delay, CTL response and immune impairment, Discrete & Continuous Dynamical Systems, 25 (2020), 917-933.  doi: 10.3934/dcdsb.2019196.  Google Scholar [54] W. Wang, X. Wang, K. Guo and W. Ma, Global analysis of a diffusive viral model with cell-to-cell infection and incubation period, Mathematical Methods in the Applied Sciences, 43 (2020), 5963-5978.  doi: 10.1002/mma.6339.  Google Scholar [55] Y. Wang, J. Liu and J. M. Heffernan, Viral dynamics of an HTLV-I infection model with intracellular delay and CTL immune response delay, Journal of Mathematical Analysis and Applications, 459 (2018), 506-527.  doi: 10.1016/j.jmaa.2017.10.027.  Google Scholar [56] D. Wodarz and C. R. M. Bangham, Evolutionary dynamics of HTLV-I, Journal of Molecular Evolution, 50 (2000), 448-455.   Google Scholar [57] J. K. Wong, M. Hezareh, H. F. Gunthard, D. V. Havlir, C. C. Ignacio, C. A. Spina and D. D. Richman, Recovery of replication-competent HIV despite prolonged suppression of plasma viremia, Science, 278 (1997), 1291-1295.   Google Scholar [58] H. Yan, Y. Xiao, Q. Yan and X. Liu, Dynamics of an HIV-1 virus model with both virus-to-cell and cell-to-cell transmissions, general incidence rate, intracellular delay, and CTL immune responses, Mathematical Methods in the Applied Sciences, 42 (2019), 6385-6406.  doi: 10.1002/mma.5747.  Google Scholar [59] N. Yamamoto, M. Okada, Y. Koyanagi, M. Kannagi and Y. Hinuma, Transformation of human leukocytes by cocultivation with an adult T cell leukemia virus producer cell line, Science, 217 (1982), 737-739.   Google Scholar
The schematic diagram of the HIV/HTLV-I co-infection dynamics in vivo
The behavior of solution trajectories of system (4) when $\Re_{1}\leq1$ and $\Re_{2}\leq1$
The behavior of solution trajectories of system (4) when $\Re_{1} > 1$, $\Re_{2}/\Re_{1}\leq1$ and $\Re_{3}\leq1$
The behavior of solution trajectories of system (4) when $\Re_{2} > 1$, $\Re_{1}/\Re_{2}\leq1$ and $\Re_{4}\leq1$
The behavior of solution trajectories of system (4) when $\Re_{3} > 1$ and $\Re_{5}\leq1$
The behavior of solution trajectories of system (4) when $\Re_{4} > 1$ and $\Re_{6}\leq1$
The behavior of solution trajectories of system (4) when $\Re_{5}^{\ast} > 1$, $\Re_{5} > 1$, $\Re_{8}\leq1$ and $\Re_{1}/\Re_{2} > 1$
The behavior of solution trajectories of system (4) when $\Re_{6} > 1$, $\Re_{7}\leq1$ and $\Re_{2}/\Re_{1} > 1$
The behavior of solution trajectories of system (4) when $\Re_{7} > 1$ and $\Re_{8} > 1$

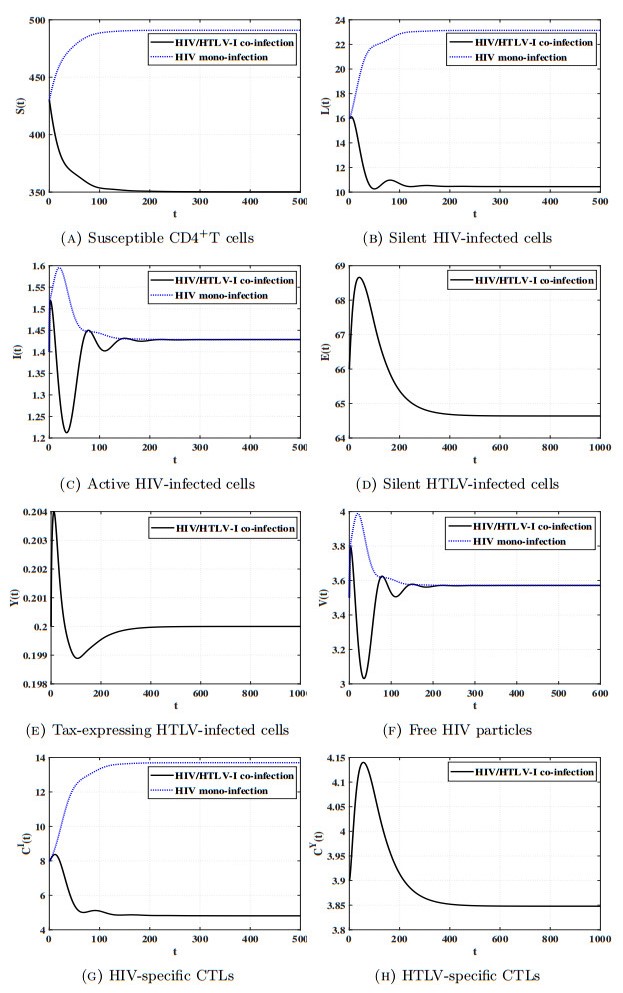

The influence of HTLV-I infection rate ($\eta_{4}\neq0$) on HIV mono-infection dynamics (31) will cause a chronic HIV/HTLV-I co-infection
