An AIMMS-based decision-making model for optimizing the intelligent stowage of export containers in a single bay

Jian Jin; Weijian Mi

doi:10.3934/dcdss.2019076

Article Contents

2019, Volume 12, Issue 4&5: 1101-1115. Doi: 10.3934/dcdss.2019076 open access

This issue Previous Article Estimation of normal distribution parameters and its application to carbonation depth of concrete girder bridges Next Article Research on regional clustering and two-stage SVM method for container truck recognition

An AIMMS-based decision-making model for optimizing the intelligent stowage of export containers in a single bay

Jian Jin^1,2, and
Weijian Mi^1,3, ,

1.
Scientific Research Academy, Shanghai Maritime University, China
2.
Jiujiang Port Co. Ltd of Shanghai International Port Group, Jiangxi Province, China
3.
Container Supply Chain Tech. Engineering Research Center, Shanghai Maritime University, China

* Corresponding author: Weijian Mi
* Corresponding author: Weijian Mi

Received: May 31, 2017

Revised: October 31, 2017

Published: March 2019

Abstract Full Text(HTML) Figure(8) / Table(1) Related Papers Cited by

Abstract

Stowage operations in container terminals are an important part of a port's operational system, as the quality of stowage operations will directly affect the efficiency of port loading and discharge operations, and the scheduling of container shipping liners. The intelligent stowage of containers in container ships was studied in this work. A multi-objective integer programming model was constructed with the minimization of container rehandling, yard crane movements, and the sum of weight differences between stacked container pairs as its objective functions, to address the need for intelligent optimization of single bay export container stowage on a ship's deck. This model also satisfies the stability requirements of preliminary stowage plans drawn by shipping companies, and the operational requirements of container terminals. Linear computational methods were then constructed to transform non-linear constraints into linear ones for better AIMMS solution. Through numerous case analyses and systematic tests, it was shown that our system is able to rapidly solve for stowage planning optimization problems with complex preliminary stowage data, thus proving the applicability and effectiveness of this model. In particular, the application of this model will simultaneously address the safety of ship voyages, the transportation quality of shipping containers and other forms of cargo, and the cost efficiency of ship operations. In addition, this model will also contribute to the optimization of loading and discharge processes in container terminals. Therefore, our model has immense practical value for improving port productivity, as it will contribute to the organization of port operations in a rational, orderly and effective manner.

Keywords:

Mathematics Subject Classification: 68U35.

Citation:

FullText(HTML)

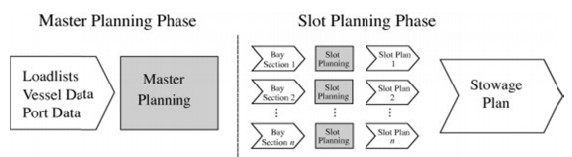

Figure 1. A schematic diagram of the decision making processes in stowage planning

Download: Full-size image PowerPoint slide

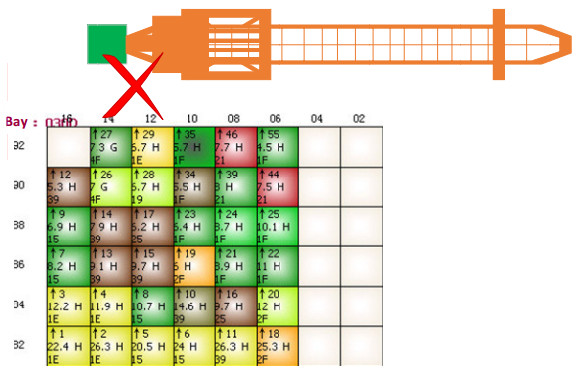

Figure 2. The permissible stacking limit of each stack

Download: Full-size image PowerPoint slide

Figure 3. The permissible weight limits of each slot

Download: Full-size image PowerPoint slide

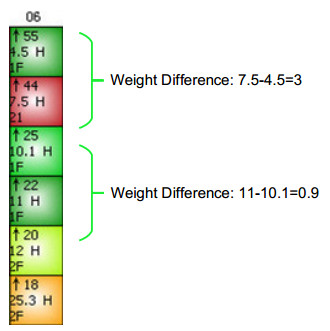

Figure 4. The constraint in the tolerable difference in weight between stacked container pairs

Download: Full-size image PowerPoint slide

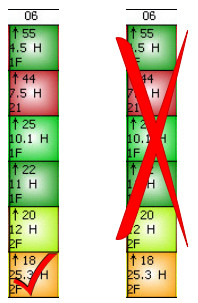

Figure 5. The "bottom-to-top" constraint

Download: Full-size image PowerPoint slide

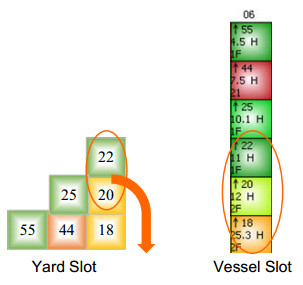

Figure 6. A schematic of container rehandling in yard stacks

Download: Full-size image PowerPoint slide

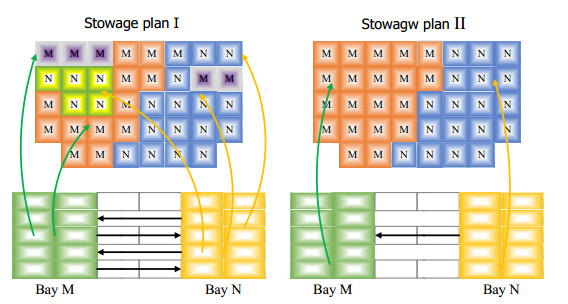

Figure 7. The effects of stowage plans on the number of yard crane movements

Download: Full-size image PowerPoint slide

Figure 8. Line chart for comparing computational efficiency

Download: Full-size image PowerPoint slide

Table 1. Computational efficiency tests

Test Number	Containers to be Stowed	Num. of Ship Slots	Num. of Sequences	Num. of Variable Nodes	Solution Time(s)	Memory Usage(M)
1	5	5	5	125	0.1	0.9
2	10	10	10	1000	0.2	1
3	15	15	15	3375	0.3	1.1
4	20	20	20	8000	0.5	1.1
5	25	25	25	15625	0.6	1.2
6	30	30	30	27000	0.9	1.4
7	35	35	35	42875	1.2	1.7
8	40	40	40	64000	1.4	2
9	45	45	45	91125	1.9	2.4
10	50	50	50	125000	2.5	2.8

| Show Table

DownLoad: CSV
