Efficient high-order implicit solvers for the dynamic of thin-walled beams with open cross section under external arbitrary loadings

Ahmed El Kaimbillah; Oussama Bourihane; Bouazza Braikat; Mohammad Jamal; Foudil Mohri; Noureddine Damil

doi:10.3934/dcdss.2019113

Article Contents

2019, Volume 12, Issue 6: 1685-1708. Doi: 10.3934/dcdss.2019113

This issue Previous Article Direct construction of symmetry-breaking directions in bifurcation problems with spherical symmetry Next Article Approximation of semi-groups in the sense of Trotter and asymptotic mathematical modeling in physics of continuous media

Efficient high-order implicit solvers for the dynamic of thin-walled beams with open cross section under external arbitrary loadings

1.
Laboratoire d'Ingénierie et Matériaux (LIMAT), Faculté des Sciences Ben M'Sik, Hassan Ⅱ University of Casablanca, Avenue Cdt Driss El Harti B.P. 7955, Sidi Othman, Casablanca, Morocco
2.
Laboratoire de Génie Mécanique (LGM), Faculté des Sciences et Techniques, Fès, Université Sidi Mohamed Ben Abdellah, Route d'Imouzzer B.P. 2202, Fès, Maroc
3.
Laboratoire d'Étude des Microstructures et de Mécanique des Matériaux (LEM3), Université de Lorraine, Metz, CNRS UMR 7239, Ile du Saulcy, 57057, France

* Corresponding author: Bouazza Braikat
* Corresponding author: Bouazza Braikat

Received: October 31, 2017

Revised: March 31, 2018

Published: April 2019

Abstract Full Text(HTML) Figure(9) / Table(4) Related Papers Cited by

Abstract

This paper aims to investigate, in large displacement and torsion context, the nonlinear dynamic behavior of thin-walled beams with open cross section subjected to various loadings by high-order implicit solvers. These homotopy transformations consist to modify the nonlinear discretized dynamic problem by introducing an arbitrary invertible pre-conditioner $ [K^\star] $ and an arbitrary path following parameter. The nonlinear strongly coupled equations of these structures are derived by using a $ 3D $ nonlinear dynamic model which accounts for large displacements and large torsion without any assumption on torsion angle amplitude. Coupling complex structural phenomena such that warping, bending-bending, and flexural-torsion are taken into account.

Two examples of great practical interest of nonlinear dynamic problems of various thin-walled beams with open section are presented to validate the efficiency and accuracy of high-order implicit solvers. The obtained results show that the proposed homotopy transformations reveal a few number of matrix triangulations. A comparison with Abaqus code is presented.

Keywords:

Citation:

Full Text(HTML)

Figure 1. Thin-walled beam with open cross section, co-ordinates of the point $M$ on the cross section contour

Download: Full-size image PowerPoint slide

Figure 2. Axial force $N$, bending moments $M_{y}$ and $M_{z}$, bimoment $B_{\omega}$ and St-Venant torsion moment $M_{sv}$

Download: Full-size image PowerPoint slide

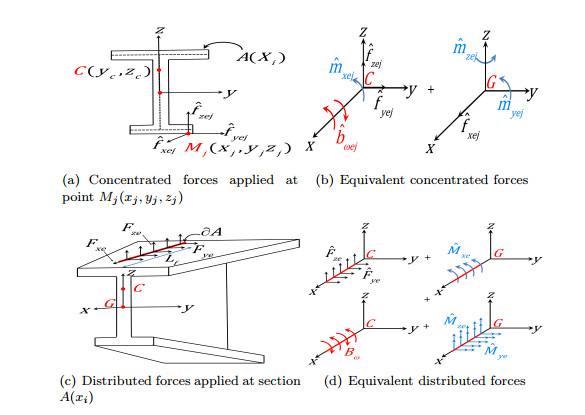

Figure 3. Section beam under concentrated and distributed forces

Download: Full-size image PowerPoint slide

Figure 4. External dynamical loading and its time evolution applied on the U-mono-symmetrical thin-walled beam with open cross section

Download: Full-size image PowerPoint slide

Figure 5. Geometrical characteristics of sections $A$ and $B$

Download: Full-size image PowerPoint slide

Figure 6. Response curves obtained by the high-order implicit solver $Alg_3$ and by Abaqus code, Time evolution of displacement components $(u(L, t), v(L, t), w(L, t), \theta_x(L, t))$

Download: Full-size image PowerPoint slide

Figure 7. Cantilever bi-symmetrical beam with steel I cross section under eccentric loading and its time evolution

Download: Full-size image PowerPoint slide

Figure 8. Thin-walled beam with steel I cross section under transverse eccentric force $F_{z}(t)$ and its point of application

Download: Full-size image PowerPoint slide

Figure 9. Response curves obtained by the high-order implicit solver $Alg_3$, by Abaqus code and by Sapountzakis: Time evolution of components $(u(L, t), v(L, t), w(L, t), \theta_x(L, t))$

Download: Full-size image PowerPoint slide

Table 1. Comparison between three solvers $Alg_1$, $Alg_2$ and $Alg_3$: Influence of time step

Solvers	$Alg_1$		$Alg_2$		$Alg_3$
$\Delta t$	Optimal order	$Log\|Res\|$	Optimal order	$Log\|Res\|$	Optimal order	$Log\|Res\|$
$10^{-3}$	$10$	$-3.73$	$9$	$-3.71$	$8$	$-3.71$
$2\, 10^{-3}$	$12$	$-3.72$	$10$	$-3.71$	$9$	$-3.70$
$3\, 10^{-3}$	$13$	$-3.69$	$11$	$-3.67$	$10$	$-3.65$

| Show Table

DownLoad: CSV

Table 2. Comparison between three solvers $Alg_1$, $Alg_2$ and $Alg_3$: Effect of truncation order

Solver	$Alg_1$			$Alg_2$			$Alg_3$
$p$	$IM$	$RHS$	$CPU(s)$	$IM$	$RHS$	$CPU(s)$	$IM$	$RHS$	$CPU(s)$
$7$	$a_{max}<1$			$a_{max}<1$			$a_{max}<1$
$8$	$a_{max}<1$			$a_{max}<1$			$2995$	$32000$	$3890$
$9$	$a_{max}<1$			$2810$	$36000$	$4252$	$2711$	$36000$	$4102$
$10$	2850	40000	4900	$2600$	$40000$	$4470$	$2480$	$40000$	$4262$
$15$	630	60000	12376	$612$	$60000$	$12023$	$520$	$60000$	$10210$
$20$	$320$	$80000$	$25896$	$309$	$80000$	$25000$	$280$	$80000$	$22640$

| Show Table

DownLoad: CSV

Table 3. Comparison between three solvers $Alg_1$, $Alg_2$ and $Alg_3$: Influence of time step

Solver	$Alg_1$		$Alg_2$		$Alg_3$
$\Delta t$	Optimal order	$Log\|Res\|$	Optimal order	$Log\|Res\|$	Optimal order	$Log\|Res\|$
$10^{-3}$	$6$	$-5.23$	$4$	$-5.2$	$3$	$-5.13$
$2\, 10^{-3}$	$12$	$-5.10$	$9$	$-4.80$	$7$	$-4.62$
$3\, 10^{-3}$	$14$	$-4.91$	$11$	$-4.79$	$8$	$-4.60$
$4\, 10^{-3}$	$15$	$-4.88$	$12$	$-4.70$	$10$	$-4.55$

| Show Table

DownLoad: CSV

Table 4. Comparison between three solvers $Alg_1$, $Alg_2$ and $Alg_3$: Effect of truncation order

Solver	$Alg_1$			$Alg_2$			$Alg_3$
$p$	$IM$	$RHS$	$CPU(s)$	$IM$	$RHS$	$CPU(s)$	$IM$	$RHS$	$CPU(s)$
$2$	$a_{max}<1$			$a_{max}<1$			$a_{max}<1$
$3$	$a_{max}<1$			$a_{max}<1$			$12$	$600$	$26$
$4$	$a_{max}<1$			$13$	$800$	$42$	$11$	$800$	$30$
$5$	$a_{max}<1$			$8$	$1000$	$46$	$6$	$1000$	$34$
$6$	$15$	$1200$	$102$	$7$	$1200$	$54$	$5$	$1200$	$36$
$7$	$4$	$1400$	$126$	$2$	$1400$	$65$	$1$	$1400$	$40$

| Show Table

DownLoad: CSV
