Informing the structure of complex Hadamard matrix spaces using a flow

1.

Department of Mathematics, Duke University, Box 90320, Durham, NC 27708-0320, USA

2.

Colorado State University, 1874 Campus Delivery, Fort Collins, CO 80523-1874, USA

Received  July 2016 Revised  December 2016 Published  January 2019

A complex Hadamard matrix $ H $ may be isolated or may lie in a higher-dimensional space of Hadamards. We provide an upper bound for this dimension as the dimension of the center subspace of a gradient flow and apply the Center Manifold Theorem of dynamical systems theory to study local structure in spaces of complex Hadamard matrices. Through examples, we provide several applications of our methodology including the construction of affine families of Hadamard matrices.

Citation: Francis C. Motta, Patrick D. Shipman. Informing the structure of complex Hadamard matrix spaces using a flow. Discrete and Continuous Dynamical Systems - S, 2019, 12 (8) : 2349-2364. doi: 10.3934/dcdss.2019147
References:
[1]

A. A. Agaian, Hadamard Matrices and their Applications, Springer-Verlag, Berlin, 1985. doi: 10.1007/BFb0101073.

[2]

N. Barros e Sá and I. Bengtsson, Families of complex Hadamard matrices, Lin. Alg. Appl., 438 (2013), 2929-2957.  doi: 10.1016/j.laa.2012.10.029.

[3]

K. Beauchamp and R. Nicoara, Orthogonal maximal abelian *-subalgebras of the 6 × 6 matrices, Lin. Alg. Appl., 428 (2008), 1833-1853.  doi: 10.1016/j.laa.2007.10.023.

[4]

R. Craigen, Equivalence Classes of Inverse Orthogonal and Unit Hadamard, Bull. Austral. Math. Soc., 44 (1991), 109-115.  doi: 10.1017/S0004972700029506.

[5]

P. Diţǎ, Some results on the parametrization of complex Hadamard matrices, J. Phys. A, 20 (2004), 5355-5374.  doi: 10.1088/0305-4470/37/20/008.

[6]

D. Goyeneche, A new method to construct families of complex Hadamard matrices in even dimensions, J. Math. Phys., 54 (2013), 032201, 18pp.  doi: 10.1063/1.4794068.

[7]

U. Haagerup, Orthogonal maximal abelian *-subalgebras of the $n\times n$ matrices and cyclic n-roots, Operator Algebras and Quantum Field Theory (Rome), Cambridge, MA International Press, (1997), 296-322.

[8]

J. Hadamard, Resolution d'une question relative aux determinants, Bull. des Sci. Math., 17 (1893), 240-246.

[9]

A. S. Hedayat, N. J. A. Sloane and J. Stufken, Orthogonal Arrays, Springer Series in Statistics, New York, Springer, 1999. doi: 10.1007/978-1-4612-1478-6.

[10]

I. JexS. Stenholm and A. Zeilinger, Hamiltonian theory of a symmetric multiport, Opt. Commun., 117 (1995), 95-101.  doi: 10.1016/0030-4018(95)00078-M.

[11]

B. R. Karlsson, BCCB complex Hadamard matrices of order 9, and MUBs, Lin. Alg. Appl., 504 (2016), 309-324.  doi: 10.1016/j.laa.2016.04.012.

[12]

B. R. Karlsson, Two-parameter complex Hadamard matrices for N = 6, J. Math. Phys., 50 (2009), 082104, 8pp.  doi: 10.1063/1.3198230.

[13]

B. R. Karlsson, Three-parameter complex Hadamard matrices of order 6, Lin. Alg. Appl., 434 (2011), 247-258.  doi: 10.1016/j.laa.2010.08.020.

[14]

P. H. J. LampioF. Szöllősi and P. R. J. Östergård, The quaternary complex Hadamard matrices of orders 10, 12, and 14, Discrete Mathematics, 313 (2013), 189-206.  doi: 10.1016/j.disc.2012.10.001.

[15]

T. K. Leen, A coordinate-independent center manifold reduction, Phys. Lett. A, 174 (1993), 89-93.  doi: 10.1016/0375-9601(93)90548-E.

[16]

D. W. Leung, Simulation and reversal of n-qubit Hamiltonians using Hadamard matrices, J. Mod. Opt., 49 (2002), 1199-1217.  doi: 10.1080/09500340110109674.

[17]

M. MatolcsiJ. Réffy and F. Szöllősi, Constructions of complex Hadamard matrices via tiling abelian groups, Open Syst. Inf. Dyn., 14 (2007), 247-263.  doi: 10.1007/s11080-007-9050-6.

[18]

D. McNulty and S. Weigert, Isolated Hadamard matrices from mutually unbiased product bases, J. Math. Phys., 53 (2012), 122202, 16pp..  doi: 10.1063/1.4764884.

[19]

J. Meiss, Differential Dynamical Systems, SIAM, (2007).  doi: 10.1137/1.9780898718232.

[20]

M. ReckA. ZeilingerH. J. Bernstein and P. Bertani, Experimental realization of any discrete unitary operator, Phys. Rev. Lett., 73 (1994), 58-61.  doi: 10.1103/PhysRevLett.73.58.

[21]

F. Szöllősi and M. Matolcsi, Towards a classification of 6 × 6 complex Hadamard matrices, Open Syst. Inf. Dyn., 15 (2008), 93-108.  doi: 10.1142/S1230161208000092.

[22]

F. Szöllősi, Complex Hadamard matrices of order 6: a four-parameter family, J. London Math. Soc., 85 (2012), 616-32.  doi: 10.1112/jlms/jdr052.

[23]

F. Szöllősi, Parametrizing complex Hadamard matrices, European J. Combin., 29 (2008), 1219-1234.  doi: 10.1016/j.ejc.2007.06.009.

[24]

W. Tadej and K. Życzkowski, A concise guide to complex Hadamard matrices, Open Syst. Inform. Dyn., 13 (2006), 133-177.  doi: 10.1007/s11080-006-8220-2.

[25]

W. Tadej and K. Życzkowski, Defect of a unitary matrix, Lin. Alg. Appl., 429 (2008), 447-481.  doi: 10.1016/j.laa.2008.02.036.

[26]

F. Verhulst, Nonlinear Differential Equations and Dynamical Systems, Springer-Verlag, Berlin, 1990. doi: 10.1007/978-3-642-97149-5.

[27]

R. F. Werner, All teleportation and dense coding schemes, J. Phys. A: Math. Gen., 34 (2001), 7081-7094.  doi: 10.1088/0305-4470/34/35/332.

show all references

References:
[1]

A. A. Agaian, Hadamard Matrices and their Applications, Springer-Verlag, Berlin, 1985. doi: 10.1007/BFb0101073.

[2]

N. Barros e Sá and I. Bengtsson, Families of complex Hadamard matrices, Lin. Alg. Appl., 438 (2013), 2929-2957.  doi: 10.1016/j.laa.2012.10.029.

[3]

K. Beauchamp and R. Nicoara, Orthogonal maximal abelian *-subalgebras of the 6 × 6 matrices, Lin. Alg. Appl., 428 (2008), 1833-1853.  doi: 10.1016/j.laa.2007.10.023.

[4]

R. Craigen, Equivalence Classes of Inverse Orthogonal and Unit Hadamard, Bull. Austral. Math. Soc., 44 (1991), 109-115.  doi: 10.1017/S0004972700029506.

[5]

P. Diţǎ, Some results on the parametrization of complex Hadamard matrices, J. Phys. A, 20 (2004), 5355-5374.  doi: 10.1088/0305-4470/37/20/008.

[6]

D. Goyeneche, A new method to construct families of complex Hadamard matrices in even dimensions, J. Math. Phys., 54 (2013), 032201, 18pp.  doi: 10.1063/1.4794068.

[7]

U. Haagerup, Orthogonal maximal abelian *-subalgebras of the $n\times n$ matrices and cyclic n-roots, Operator Algebras and Quantum Field Theory (Rome), Cambridge, MA International Press, (1997), 296-322.

[8]

J. Hadamard, Resolution d'une question relative aux determinants, Bull. des Sci. Math., 17 (1893), 240-246.

[9]

A. S. Hedayat, N. J. A. Sloane and J. Stufken, Orthogonal Arrays, Springer Series in Statistics, New York, Springer, 1999. doi: 10.1007/978-1-4612-1478-6.

[10]

I. JexS. Stenholm and A. Zeilinger, Hamiltonian theory of a symmetric multiport, Opt. Commun., 117 (1995), 95-101.  doi: 10.1016/0030-4018(95)00078-M.

[11]

B. R. Karlsson, BCCB complex Hadamard matrices of order 9, and MUBs, Lin. Alg. Appl., 504 (2016), 309-324.  doi: 10.1016/j.laa.2016.04.012.

[12]

B. R. Karlsson, Two-parameter complex Hadamard matrices for N = 6, J. Math. Phys., 50 (2009), 082104, 8pp.  doi: 10.1063/1.3198230.

[13]

B. R. Karlsson, Three-parameter complex Hadamard matrices of order 6, Lin. Alg. Appl., 434 (2011), 247-258.  doi: 10.1016/j.laa.2010.08.020.

[14]

P. H. J. LampioF. Szöllősi and P. R. J. Östergård, The quaternary complex Hadamard matrices of orders 10, 12, and 14, Discrete Mathematics, 313 (2013), 189-206.  doi: 10.1016/j.disc.2012.10.001.

[15]

T. K. Leen, A coordinate-independent center manifold reduction, Phys. Lett. A, 174 (1993), 89-93.  doi: 10.1016/0375-9601(93)90548-E.

[16]

D. W. Leung, Simulation and reversal of n-qubit Hamiltonians using Hadamard matrices, J. Mod. Opt., 49 (2002), 1199-1217.  doi: 10.1080/09500340110109674.

[17]

M. MatolcsiJ. Réffy and F. Szöllősi, Constructions of complex Hadamard matrices via tiling abelian groups, Open Syst. Inf. Dyn., 14 (2007), 247-263.  doi: 10.1007/s11080-007-9050-6.

[18]

D. McNulty and S. Weigert, Isolated Hadamard matrices from mutually unbiased product bases, J. Math. Phys., 53 (2012), 122202, 16pp..  doi: 10.1063/1.4764884.

[19]

J. Meiss, Differential Dynamical Systems, SIAM, (2007).  doi: 10.1137/1.9780898718232.

[20]

M. ReckA. ZeilingerH. J. Bernstein and P. Bertani, Experimental realization of any discrete unitary operator, Phys. Rev. Lett., 73 (1994), 58-61.  doi: 10.1103/PhysRevLett.73.58.

[21]

F. Szöllősi and M. Matolcsi, Towards a classification of 6 × 6 complex Hadamard matrices, Open Syst. Inf. Dyn., 15 (2008), 93-108.  doi: 10.1142/S1230161208000092.

[22]

F. Szöllősi, Complex Hadamard matrices of order 6: a four-parameter family, J. London Math. Soc., 85 (2012), 616-32.  doi: 10.1112/jlms/jdr052.

[23]

F. Szöllősi, Parametrizing complex Hadamard matrices, European J. Combin., 29 (2008), 1219-1234.  doi: 10.1016/j.ejc.2007.06.009.

[24]

W. Tadej and K. Życzkowski, A concise guide to complex Hadamard matrices, Open Syst. Inform. Dyn., 13 (2006), 133-177.  doi: 10.1007/s11080-006-8220-2.

[25]

W. Tadej and K. Życzkowski, Defect of a unitary matrix, Lin. Alg. Appl., 429 (2008), 447-481.  doi: 10.1016/j.laa.2008.02.036.

[26]

F. Verhulst, Nonlinear Differential Equations and Dynamical Systems, Springer-Verlag, Berlin, 1990. doi: 10.1007/978-3-642-97149-5.

[27]

R. F. Werner, All teleportation and dense coding schemes, J. Phys. A: Math. Gen., 34 (2001), 7081-7094.  doi: 10.1088/0305-4470/34/35/332.

Figure 1.  Plot of the eigenvalues of the linearization of $ \Phi_4 $ at $ {\boldsymbol \theta}(a) $ for $ a \in [0,\pi] $. $ \lambda_1(a) $ (blue), $ \lambda_3(a) $ (green), and $ \lambda_6(a) $ (red) simultaneously vanish at $ a = \pi/2 $, while all other eigenvalues (gray) are strictly negative for all $ a \in [0,\pi] $

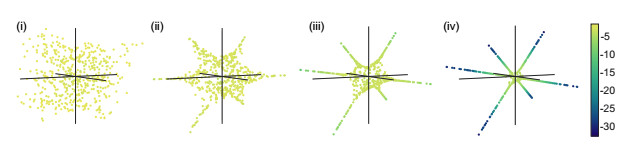

Figure 2.  Snapshots of 500 initial phases, drawn from $ \mathbb{R}^{9} $ uniformly at random from a neighborhood of the core phases corresponding to $ F(\pi/2) $, as they evolve under the flow defined by $ \Phi_4({\boldsymbol \theta}) $, at times (ⅰ) 5, (ⅱ) 20, (ⅲ) 70, and (ⅳ) 500. Each point cloud has been projected onto its top three principal components, and each point $ {\boldsymbol \theta} $ is colored by $ \log_{10} $ of the magnitude of the vector field $ \Phi_4({\boldsymbol \theta}) $
