Time-delay optimal control of a fed-batch production involving multiple feeds

Chongyang Liu; Meijia Han

doi:10.3934/dcdss.2020099

Article Contents

2020, Volume 13, Issue 6: 1697-1709. Doi: 10.3934/dcdss.2020099

This issue Previous Article Time-scaling transformation for optimal control problem with time-varying delay Next Article Optimal control of hybrid manufacturing systems by log-exponential smoothing aggregation

Time-delay optimal control of a fed-batch production involving multiple feeds

Chongyang Liu^1, , and
Meijia Han^2,

1.
School of Mathematics and Information Science, Shandong Technology and Business University, Yantai 264005, China
2.
School of Computer Science and Technology, Shandong Technology and Business University, Yantai 264005, China

^* Corresponding author: Chongyang Liu
^* Corresponding author: Chongyang Liu

Received: February 28, 2018

Revised: August 31, 2018

Published: April 2020

Abstract Full Text(HTML) Figure(3) / Table(3) Related Papers Cited by

Abstract

In this paper, we consider time-delay optimal control of 1, 3-propan-ediol (1, 3-PD) fed-batch production involving multiple feeds. First, we propose a nonlinear time-delay system involving feeds of glycerol and alkali to formulate the production process. Then, taking the feeding rates of glycerol and alkali as well as the terminal time of process as the controls, we present a time-delay optimal control model subject to control and state constraints to maximize 1, 3-PD productivity. By a time-scaling transformation, we convert the optimal control problem into an equivalent problem with fixed terminal time. Furthermore, by applying control parameterization and constraint transcription techniques, we approximate the equivalent problem by a sequence of finite-dimensional optimization problems. An improved particle swarm optimization algorithm is developed to solve the resulting optimization problems. Finally, numerical results show that 1, 3-PD productivity increases considerably using the obtained optimal control strategy.

Keywords:

Mathematics Subject Classification: Primary: 49J21, 49M37; Secondary: 34K34.

Citation:

Full Text(HTML)

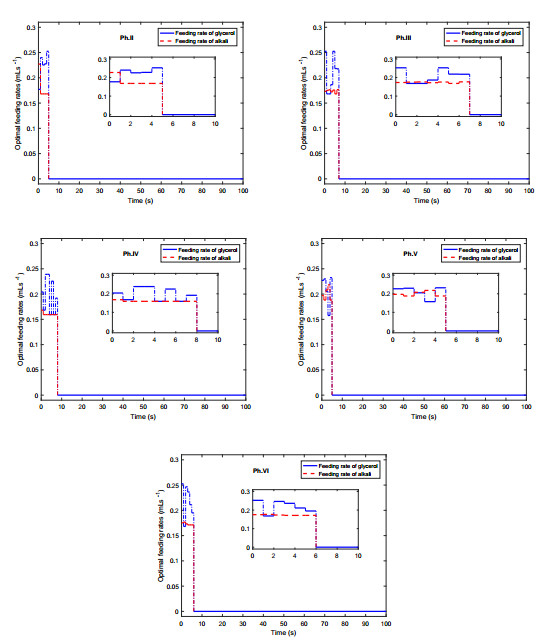

Figure 1. Optimal feeding rates of glycerol and alkali in Phs. Ⅱ-Ⅵ
