A novel model for the contamination of a system of three artificial lakes

Veysel Fuat Hatipoğlu

doi:10.3934/dcdss.2020176

Article Contents

2021, Volume 14, Issue 7: 2261-2272. Doi: 10.3934/dcdss.2020176

This issue Previous Article Dynamical behaviors and oblique resonant nonlinear waves with dual-power law nonlinearity and conformable temporal evolution Next Article A wavelet method for nonlinear variable-order time fractional 2D Schrödinger equation

A novel model for the contamination of a system of three artificial lakes

Veysel Fuat Hatipoğlu

Muğla Sıtkı Koçman University, Muğla, 48300, Turkey

Received: March 31, 2019

Revised: April 30, 2019

Early access: December 2019

Published: July 2021

Abstract Full Text(HTML) Figure(7) / Table(6) Related Papers Cited by

Abstract

In this study, a new model has been developed to monitor the contamination in connected three lakes. The model has been motivated by two biological models, i.e. cell compartment model and lake pollution model. Haar wavelet collocation method has been proposed for the numerical solutions of the model containing a system of three linear differential equations. In addition to the solutions of the system, convergence analysis has been briefly given for the proposed method. The contamination in each lake has been investigated by considering three different pollutant input cases, namely impulse imposed pollutant source, exponentially decaying imposed pollutant source, and periodic imposed pollutant source. Each case has been illustrated with a numerical example and results are compared with the exact ones. Regarding the results in each case it has been seen that, Haar wavelet collocation method is an efficient algorithm to monitor the contamination of a system of lakes problem.

Keywords:

Mathematics Subject Classification: Primary: 34A30, 65L05; Secondary: 92-08.

Citation:

Full Text(HTML)

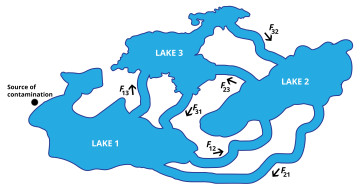

Figure 1. Illustration of the interconnected Lakes 1, 2, 3, and flow $ F_{12} $, $ F_{13} $, $ F_{21} $, $ F_{23} $, $ F_{31} $, $ F_{32} $

Download: Full-size image PowerPoint slide

Figure 2. Graphical representation of approximate and exact solutions of Example 4.1 for $ m = 8 $ of (a) the function $ u_1(t) $ (pollution in Lake 1), (b) the function $ u_2(t) $ (pollution in Lake 2), and (c) the function $ u_3(t) $ (pollution in Lake 3)

Download: Full-size image PowerPoint slide

Figure 3. Graphical representation of approximate and exact solutions of Example 4.1 for $ m = 256 $ of (a) the function $ u_1(t) $ (pollution in Lake 1), (b) the function $ u_2(t) $ (pollution in Lake 2), and (c) the function $ u_3(t) $ (pollution in Lake 3)

Download: Full-size image PowerPoint slide

Figure 4. Graphical representation of approximate and exact solutions of Example 4.2 for $ m = 8 $ of (a) the function $ u_1(t) $ (pollution in Lake 1), (b) the function $ u_2(t) $ (pollution in Lake 2), and (c) the function $ u_3(t) $ (pollution in Lake 3)

Download: Full-size image PowerPoint slide

Figure 5. Graphical representation of approximate and exact solutions of Example 4.2 for $ m = 256 $ of (a) the function $ u_1(t) $ (pollution in Lake 1), (b) the function $ u_2(t) $ (pollution in Lake 2), and (c) the function $ u_3(t) $ (pollution in Lake 3)

Download: Full-size image PowerPoint slide

Figure 6. Graphical representation of approximate and exact solutions of Example 4.3 for $ m = 8 $ of (a) the function $ u_1(t) $ (pollution in Lake 1), (b) the function $ u_2(t) $ (pollution in Lake 2), and (c) the function $ u_3(t) $ (pollution in Lake 3)

Download: Full-size image PowerPoint slide

Figure 7. Graphical representation of approximate and exact solutions of Example 4.3 for $ m = 256 $ of (a) the function $ u_1(t) $ (pollution in Lake 1), (b) the function $ u_2(t) $ (pollution in Lake 2), and (c) the function $ u_3(t) $ (pollution in Lake 3)

Download: Full-size image PowerPoint slide

Table 1. Numerical results for the case of the impulse input imposed pollutant source for $ m = 8 $

$ t $	App. sol. of $ u_1 $	Abs. error in $ u_1 $	App. sol. of $ u_2 $	Abs. error in $ u_2 $	App. sol. of $ u_3 $	Abs. error in $ u_3 $
0	0	0	0	0	0	0
0.2	22.9684	3.00002	0.0164893	0.0000103978	0.0151401	$ 5.40755\times 10^{-6} $
0.4	41.8738	2.00003	0.0657719	0.0000194067	0.0604641	0.0000101545
0.6	57.7167	1.99995	0.147536	0.0000303268	0.135809	0.0000159672
0.8	76.4975	2.99994	0.26148	0.0000389783	0.241017	0.0000206502
1	99.2168	0.0000745642	0.407297	0.0000486384	0.375927	0.0000259258

| Show Table

DownLoad: CSV

Table 2. Numerical results for the case of the impulse input imposed pollutant source for $ m = 256 $

$ t $	App. sol. of $ u_1 $	Abs. error in $ u_1 $	App. sol. of $ u_2 $	Abs. error in $ u_2 $	App. sol. of $ u_3 $	Abs. error in $ u_3 $
0	0	0	0	0	0	0
0.2	20.0309	0.0625	0.0164996	$ 9.84289\times 10^{-9} $	0.0151455	$ 5.11793\times 10^{-9} $
0.4	39.78	0.09375	0.0657913	$ 1.95302\times 10^{-8} $	0.0604743	$ 1.02186\times 10^{-8} $
0.6	59.8104	0.09375	0.147566	$ 2.90455\times 10^{-8} $	0.135825	$ 1.52923\times 10^{-8} $
0.8	79.4349	0.0624999	0.261519	$ 3.83733\times 10^{-8} $	0.241038	$ 2.03287\times 10^{-8} $
1	99.2167	$ 7.28163\times 10^{-8} $	0.407345	$ 4.74981\times 10^{-8} $	0.375953	$ 2.53183\times 10^{-8} $

| Show Table

DownLoad: CSV

Table 3. Numerical results for the case of the pollutant source is exponential decaying for $ m = 8 $

$ t $	App. sol. of $ u_1 $	Abs. error in $ u_1 $	App. sol. of $ u_2 $	Abs. error in $ u_2 $	App. sol. of $ u_3 $	Abs. error in $ u_3 $
0	0	0	0	0	0	0
0.2	21.1544	3.89703	0.0158795	0.00284471	0.0145808	0.00261002
0.4	21.6476	2.10907	0.0445744	0.00499602	0.0409975	0.00459647
0.6	15.2365	4.55673	0.0747691	0.00702142	0.0688998	0.00647562
0.8	13.554	6.22018	0.104924	0.00900802	0.0968779	0.00832662
1	18.4945	1.2239	0.134828	0.0109746	0.124735	0.0101665

| Show Table

DownLoad: CSV

Table 4. Numerical results for the case of the pollutant source is exponential decaying for $ m = 256 $

$ t $	App. sol. of $ u_1 $	Abs. error in $ u_1 $	App. sol. of $ u_2 $	Abs. error in $ u_2 $	App. sol. of $ u_3 $	Abs. error in $ u_3 $
0	0	0	0	0	0	0
0.2	17.3813	0.123881	0.0187212	$ 3.00622\times 10^{-6} $	0.0171881	$ 2.75854\times 10^{-6} $
0.4	19.3498	0.188703	0.0495652	$ 5.197\times 10^{-6} $	0.0455892	$ 4.78187\times 10^{-6} $
0.6	19.9795	0.18621	0.0817833	$ 7.25942\times 10^{-6} $	0.0753687	$ 6.69578\times 10^{-6} $
0.8	19.6479	0.126229	0.113923	$ 9.28787\times 10^{-6} $	0.105196	$ 8.58611\times 10^{-6} $
1	19.7171	0.00124969	0.145791	0.0000112953	0.134891	0.0000104645

| Show Table

DownLoad: CSV

Table 5. Numerical results for the case of the periodic imposed pollutant source for $ m = 8 $

$ t $	App. sol. of $ u_1 $	Abs. error in $ u_1 $	App. sol. of $ u_2 $	Abs. error in $ u_2 $	App. sol. of $ u_3 $	Abs. error in $ u_3 $
0	0	0	0	0	0	0
0.2	0.249602	0.0300057	0.000178068	$ 2.08508\times 10^{-6} $	0.000163497	$ 1.96112\times 10^{-6} $
0.4	0.497558	0.0200493	0.000748935	$ 3.8634\times 10^{-6} $	0.000688452	$ 3.6487\times 10^{-6} $
0.6	0.751366	0.0199072	0.0017721	$ 5.90008\times 10^{-6} $	0.001631	$ 5.59805\times 10^{-6} $
0.8	1.06715	0.0298126	0.00330008	$ 7.43142\times 10^{-6} $	0.00304105	$ 7.08325\times 10^{-6} $
1	1.44966	0.000281844	0.00537877	$ 8.97633\times 10^{-6} $	0.00496263	$ 8.59806\times 10^{-6} $

| Show Table

DownLoad: CSV

Table 6. Numerical results for the case of the periodic imposed pollutant source for $ m = 256 $

$ t $	App. sol. of $ u_1 $	Abs. error in $ u_1 $	App. sol. of $ u_2 $	Abs. error in $ u_2 $	App. sol. of $ u_3 $	Abs. error in $ u_3 $
0	0	0	0	0	0	0
0.2	0.220221	0.000625009	0.000175985	$ 1.97563\times 10^{-9} $	0.000161538	$ 1.8579\times 10^{-9} $
0.4	0.476572	0.000937457	0.000745076	$ 3.87845\times 10^{-9} $	0.000684807	$ 3.66306\times 10^{-9} $
0.6	0.77221	0.0009376	0.00176621	$ 5.66633\times 10^{-9} $	0.00162541	$ 5.37572\times 10^{-9} $
0.8	1.09634	0.000624822	0.00329265	$ 7.30236\times 10^{-9} $	0.00303397	$ 6.96049\times 10^{-9} $
1	1.44937	$ 2.75122\times 10^{-7} $	0.0053698	$ 8.75757\times 10^{-9} $	0.00495404	$ 8.38886\times 10^{-9} $

| Show Table

DownLoad: CSV
