Local meshless differential quadrature collocation method for time-fractional PDEs

Imtiaz Ahmad; null Siraj-ul-Islam; null Mehnaz; Sakhi Zaman

doi:10.3934/dcdss.2020223

Article Contents

2020, Volume 13, Issue 10: 2641-2654. Doi: 10.3934/dcdss.2020223

This issue Previous Article Special issue dedicated to Professor David Paul Mason Next Article Conservation laws and line soliton solutions of a family of modified KP equations

Local meshless differential quadrature collocation method for time-fractional PDEs

1.
Department of Mathematics, University of Swabi, Khyber Pakhtunkhwa 23430, Pakistan
2.
Department of Basic Sciences, University of Engineering and Technology, Peshawar, Pakistan
3.
Shaheed Benazir Bhutto Women University, Peshawar, Pakistan

^* Corresponding authors: imtiazkakakhil@gmail.com (Imtiaz Ahmad)
^* Corresponding authors: imtiazkakakhil@gmail.com (Imtiaz Ahmad);
^* Corresponding authors: imtiazkakakhil@gmail.com (Imtiaz Ahmad)^* Corresponding authors: siraj.islam@gmail.com (Siraj-ul-Islam)
^* Corresponding authors: siraj.islam@gmail.com (Siraj-ul-Islam)

Received: January 31, 2019

Revised: June 30, 2019

Early access: December 2019

Published: July 2020

Abstract Full Text(HTML) Figure(15) / Table(4) Related Papers Cited by

Abstract

This paper is concerned with the numerical solution of time- fractional partial differential equations (PDEs) via local meshless differential quadrature collocation method (LMM) using radial basis functions (RBFs). For the sake of comparison, global version of the meshless method is also considered. The meshless methods do not need mesh and approximate solution on scattered and uniform nodes in the domain. The local and global meshless procedures are used for spatial discretization. Caputo derivative is used in the temporal direction for both the values of $ \alpha \in (0,1) $ and $ \alpha\in(1,2) $. To circumvent spurious oscillation casued by convection, an upwind technique is coupled with the LMM. Numerical analysis is given to asses accuracy of the proposed meshless method for one- and two-dimensional problems on rectangular and non-rectangular domains.

Keywords:

Mathematics Subject Classification: Primary: 65M99, 35K55, 35K57; Secondary: 35R11.

Citation:

Full Text(HTML)

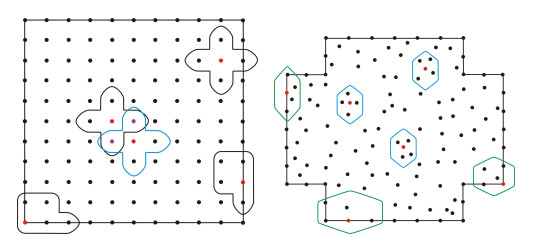

Figure 1. Schematics of central local supported domain in 2D geometry for $ n_i = 5 $

Download: Full-size image PowerPoint slide

Figure 2. Schematic of upwind local supported domain in 1D (row 1) and 2D (row 2) geometry for $ n_i = 3 $ and $ n_i = 5 $ respectively

Download: Full-size image PowerPoint slide

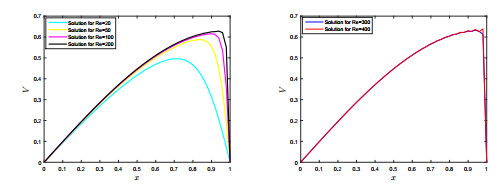

Figure 3. Numerical solutions of the GMM for Test Problem 2

Download: Full-size image PowerPoint slide

Figure 4. Numerical solutions of the LMM with out upwind technique (left), with upwind technique (right) for Test Problem 2

Download: Full-size image PowerPoint slide

Figure 5. Numerical solutions of the LMM with upwind technique for Test Problem 2

Download: Full-size image PowerPoint slide

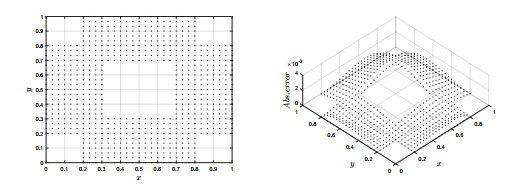

Figure 6. Computational domain and absolute error for Test Problem 3

Download: Full-size image PowerPoint slide

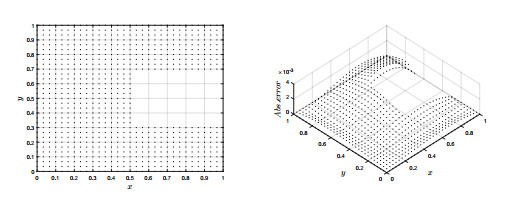

Figure 7. Computational domain and absolute error for Test Problem 3

Download: Full-size image PowerPoint slide

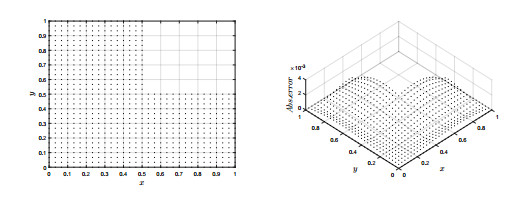

Figure 8. Computational domain and absolute error for Test Problem 3

Download: Full-size image PowerPoint slide

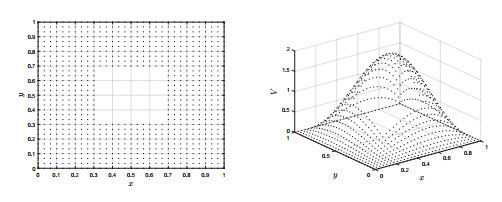

Figure 9. Computational domain and numerical solution for Test Problem 3

Download: Full-size image PowerPoint slide

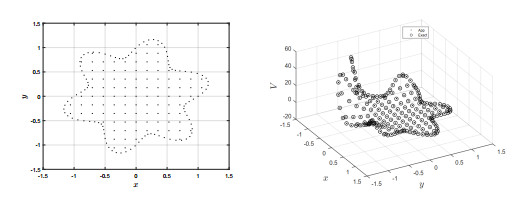

Figure 10. Computational domain, approximate and exact solution for Test Problem 3

Download: Full-size image PowerPoint slide

Figure 11. Numerical solution of the GMM for $ Re = 200 $ (left) and $ Re = 300 $ (right) for Test Problem 4

Download: Full-size image PowerPoint slide

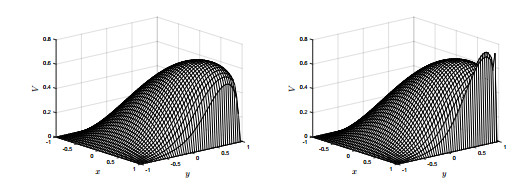

Figure 12. Numerical solution of the LMM for $ Re = 100 $ (left) and $ Re = 150 $ (right) for Test Problem 4

Download: Full-size image PowerPoint slide

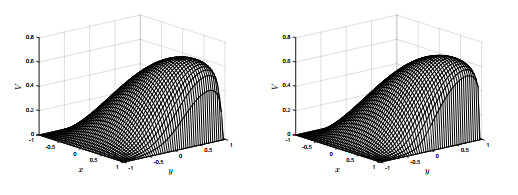

Figure 13. Results of the LMM using upwind technique for $ Re = 150 $ (left) and $ Re = 1000 $ (right) for Test Problem 4

Download: Full-size image PowerPoint slide

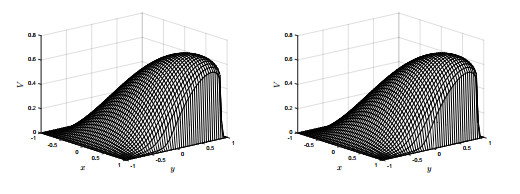

Figure 14. Results of the LMM using upwind technique for $ Re = 10^{10} $ (left) and $ Re = 10^{17} $ (right) for Test Problem 4

Download: Full-size image PowerPoint slide

Figure 15. CPU time comparison of the LMM and the GMM for Test Problem 4

Download: Full-size image PowerPoint slide

Table 1. Comparison of the LMM with different local sub-domain $ n_i $ and the method reported in [8] for Test Problem 1

Time	t=1	t=2	t=2.5	t=3
Max. abs. error[8]	4.632e-03	5.267e-03	5.569e-03	5.857e-03
LMM ($ L_{\infty} $)
$ n_i=3 $	3.6104e-04	6.3774e-04	7.8362e-04	9.2358e-04
$ n_i=5 $	1.6807e-05	2.5918e-05	2.8962e-05	3.3891e-05
$ n_i=7 $	7.4546e-06	1.1882e-05	1.3669e-05	1.5306e-05
$ n_i=9 $	6.5724e-06	1.0753e-05	1.2321e-05	1.3640e-05
$ n_i=11 $	6.4933e-06	1.0749e-05	1.2303e-05	1.3355e-05

| Show Table

DownLoad: CSV

Table 2. $ Ave.L_{abs} $ error norms of the LMM for Test Problem 3

N	5	10	15	20
$ \alpha=1.5 $	2.7911e-03	3.3331e-04	6.3412e-05	1.1145e-05
$ \alpha=1.8 $	2.8124e-03	3.5870e-04	8.4685e-05	2.7917e-05

| Show Table

DownLoad: CSV

Table 3. Numerical results of the LMM and the method reported in [28] for Test Problem 3

$ \alpha=1.5 $			$ \alpha=1.8 $
$ \tau $	$ Ave.L_{abs} $	$ Ave.L_{abs} $ [28]	$ \tau $	$ Ave.L_{abs} $	$ Ave.L_{abs} $ [28]
1/10	4.3826e-02	1.2550e-02	1/10	2.9099e-02	2.0496e-02
1/20	1.2592e-02	6.6277e-03	1/20	9.2610e-03	1.0696e-02
1/30	6.3054e-03	4.5292e-03	1/30	4.4599e-03	7.2811e-03
1/40	3.5999e-03	3.4518e-03	1/40	2.3587e-03	5.5407e-03
1/50	2.1402e-03	2.7951e-03	1/50	1.1993e-03	4.4822e-03
1/60	1.2811e-03	2.3526e-03	1/60	5.8970e-04	3.7688e-03
1/70	8.3729e-04	2.0338e-03	1/70	4.7926e-04	3.2548e-03

| Show Table

DownLoad: CSV

Table 4. $ Ave.L_{abs} $ of the LMM for Test Problem 3

$ \alpha $	Regular nodes			Chebyshev nodes
$ \alpha $	Explicit	CN	Implicit	Explicit	CN	Implicit
1.5	8.0527e-05	2.2050e-04	4.1275e-04	2.4177e-04	3.4777e-04	4.5997e-04
1.6	8.1357e-05	2.2263e-04	4.1881e-04	2.3932e-04	3.4587e-04	4.5902e-04
1.7	8.2287e-05	2.2266e-04	4.2312e-04	2.3691e-04	3.4459e-04	4.5928e-04
1.8	8.3535e-05	2.2109e-04	4.2679e-04	2.3405e-04	3.4367e-04	4.6080e-04

| Show Table

DownLoad: CSV
