Marangoni forced convective Casson type nanofluid flow in the presence of Lorentz force generated by Riga plate

Ghulam Rasool; Anum Shafiq; Chaudry Masood Khalique

doi:10.3934/dcdss.2021059

Article Contents

2021, Volume 14, Issue 7: 2517-2533. Doi: 10.3934/dcdss.2021059

This issue Previous Article Darcy-Forchheimer relation in Magnetohydrodynamic Jeffrey nanofluid flow over stretching surface Next Article Optimal control strategy for an age-structured SIR endemic model

Marangoni forced convective Casson type nanofluid flow in the presence of Lorentz force generated by Riga plate

1.
Binjiang College, Nanjing University of Information Science and Technology, Wuxi 214105, Jiangsu, China
2.
School of Mathematics and Statistics, Nanjing University of Information Science and Technology, Nanjing, Jiangsu, China
3.
International Institute for Symmetry Analysis and Mathematical Modelling, Department of Mathematical Sciences, North-West University, Mafikeng Campus, Private Bag X 2046, Mmabatho 2735, South Africa

^* Corresponding author: Anum Shafiq
^* Corresponding author: Anum Shafiq

Received: May 31, 2019

Revised: November 30, 2020

Early access: May 2021

Published: July 2021

Abstract Full Text(HTML) Figure(13) / Table(2) Related Papers Cited by

Abstract

The present communication aims to investigate Marangoni based convective Casson modeled nanofluid flow influenced by the presence of Lorentz forces instigated into the model by an aligned array of magnets in the form of Riga pattern. The exponentially decaying Lorentz force is considered using the Grinberg term. On the liquid - gas or liquid - liquid interface, a realistic temperature and concentration distribution is considered with the assumption that temperature and concentration distributions are variable functions of $ x $. The set of so-formulated governing problems under the umbrella of Navier Stokes equations is transformed into nonlinear ODEs using suitable transformations. Homotopy approach is implemented to achieve convergent series solutions for the said problem. Influence of active fluid parameters such as Casson parameter, Brownian diffusion, Prandtl number, Thermophoresis and others on flow profiles is analyzed graphically. The fluctuation in local physical quantities such as heat and mass flux rates, is noticed to check the significance of current fluid model in many industrial as well as engineering procedures using nanofluids. The outcomes indicate that the effective Lorentz force assists the fluid motion that results in an augmented velocity profile with incremental values of modified Hartman number. Furthermore, incremental data of Casson parameter motivates significant reduction in velocity profile.

Keywords:

Mathematics Subject Classification: Primary: 58F15, 58F17; Secondary: 53C35.

Citation:

Full Text(HTML)

Figure 1. Geometry of the problem

Download: Full-size image PowerPoint slide

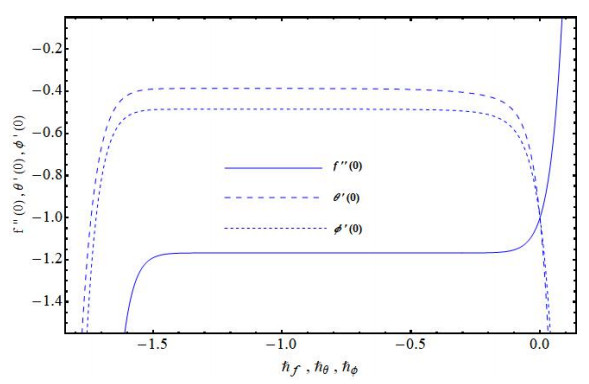

Figure 2. HAM Curves

Download: Full-size image PowerPoint slide

Figure 3. Variations noted in $ f'(\eta) $ for incremental $ \beta $

Download: Full-size image PowerPoint slide

Figure 4. Variations noted in $ f'(\eta) $ for incremental $ Q_1 $

Download: Full-size image PowerPoint slide

Figure 5. Variations noted in $ f'(\eta) $ for incremental $ r $

Download: Full-size image PowerPoint slide

Figure 6. Variations noted in $ \theta(\eta) $ for incremental $ Q_1 $

Download: Full-size image PowerPoint slide

Figure 7. Variations noted in $ \theta(\eta) $ for incremental $ N_b $

Download: Full-size image PowerPoint slide

Figure 8. Variations noted in $ \theta(\eta) $ for incremental $ Nt $

Download: Full-size image PowerPoint slide

Figure 9. Variations noted in $ \theta(\eta) $ for incremental $ Ec $

Download: Full-size image PowerPoint slide

Figure 10. Variations noted in $ \phi(\eta) $ for incremental $ Sc $

Download: Full-size image PowerPoint slide

Figure 11. Variations noted in $ \phi(\eta) $ for incremental $ Nt $

Download: Full-size image PowerPoint slide

Figure 12. Variations noted in Nusselt number for incremental $ Nt $

Download: Full-size image PowerPoint slide

Figure 13. Variations noted in Sherwood number for incremental $ Sc $

Download: Full-size image PowerPoint slide

Table Ⅰ. Convergence

Orders	$-f^{\prime \prime }$	$-\theta ^{\prime }$	$-\phi ^{\prime }$
$1$	$1.141912$	$0.8995612$	$1.5211265$
$5$	$1.256923$	$0.9566101$	$1.3211122$
$10$	$1.300122$	$1.1223114$	$1.1886111$
$15$	$1.300222$	$1.2623532$	$0.9956332$
$20$	$1.300222$	$1.3112112$	$0.8915622$
$25$	$1.300222$	$1.3112211$	$0.8915512$
$30$	$1.300222$	$1.3112211$	$0.8915512$
$35$	$1.300222$	$1.3112211$	$0.8915512$
$40$	$1.300222$	$1.3112211$	$0.8915512$
$50$	$1.300222$	$1.3112211$	$0.8915512$

| Show Table

DownLoad: CSV

Table Ⅱ. Comparison of Nusselt and Sherwood numbers with Hayat et al. [11]

$\beta$	$Q_1 $	$Sc$	$Nb$	$Nt$	$Pr$	$Ec$	${Re}_{x}^{-1/2}Nu_{x}$	${Re}_{x}^{-1/2}Nu_{x} $	${Re}_{x}^{-1/2}Sh_{x}$
							Current	Hayat et al. [11]
$0.35$	$0.1$	$0.1$	$0.5$	$0.5$	$0.3$	$0.2$	$0.7801$	$0.7799$	$0.6232$
$0.4$							$0.7810$	$0.7816$	$0.6200$
$0.6$							$0.7820$	$0.7833$	$0.6155$
$0.6$	$0.0$	$0.1$	$0.5$	$0.5$	$0.3$	$0.2$	$0.7790$	$0.7855$	$0.5662$
	$0.2$						$0.7770$	$0.7829$	$0.5524$
	$0.4$						$0.7720$	$0.7778$	$0.5412$
$0.6$	$0.1$	$0.0$	$0.5$	$0.5$	$0.3$	$0.2$	$0.7901$	$0.8100$	$0.7100$
		$0.2$					$0.7799$	$0.7836$	$0.7100$
		$0.4$					$0.7400$	$0.7566$	$0.7101$
$0.6$	$0.1$	$0.1$	$0.1$	$0.5$	$0.3$	$0.2$	$0.8101$	$--$	$0.6525$
			$0.3$				$0.8002$	$--$	$0.6580$
			$1.5$				$0.7800$	$--$	$0.6612$
$0.6$	$0.1$	$0.1$	$0.5$	$0.1$	$0.3$	$0.2$	$0.8536$	$--$	$0.5412$
				$0.3$			$0.8825$	$--$	$0.5300$
				$0.5$			$0.9122$	$--$	$0.5121$
$0.6$	$0.1$	$0.1$	$0.5$	$0.5$	$1.2$	$0.2$	$1.1121$	$1.1532$	$1.0021$
					$2.2$		$1.2112$	$1.4241$	$1.1121$
					$3.2$		$1.3001$	$1.6521$	$1.2231$
$0.6$	$0.1$	$0.1$	$0.5$	$0.5$	$0.3$	$0.2$	$0.7921$	$0.8081$	$0.7101$
						$0.3$	$0.7600$	$0.7833$	$0.7200$
						$0.4$	$0.7401$	$0.7586$	$0.7405$

| Show Table

DownLoad: CSV
