Optimal control problem of variable-order delay system of advertising procedure: Numerical treatment

Nasser H. Sweilam; Taghreed A. Assiri; Muner M. Abou Hasan

doi:10.3934/dcdss.2021085

Article Contents

2022, Volume 15, Issue 5: 1247-1268. Doi: 10.3934/dcdss.2021085

This issue Previous Article Blow up of negative initial-energy solutions of a system of nonlinear wave equations with variable-exponent nonlinearities Next Article Boundary observability and exact controllability of strongly coupled wave equations

Optimal control problem of variable-order delay system of advertising procedure: Numerical treatment

1.
Department of Mathematics, Faculty of Science, Cairo University, Giza, Egypt
2.
Department of Mathematics, Faculty of Science, Umm Al-Qura University, Saudi Arabia
3.
Department of Engineering Mathematics and Physics, Future University in Egypt, Egypt

Received: February 28, 2021

Revised: April 30, 2021

Early access: July 2021

Published: May 2022

Abstract Full Text(HTML) Figure(9) / Table(2) Related Papers Cited by

Abstract

This paper presents an optimal control problem of the general variable-order fractional delay model of advertising procedure. The problem describes the flow of the clients from the unaware people group to the conscious or bought band. The new formulation generalizes the model that proposed by Muller. Two control variables are considered to increase the number of customers who purchased the products. An efficient nonstandard difference approach is used to study numerically the behavior of the solution of the mentioned problem. Properties of the proposed system were introduced analytically and numerically. The proposed difference schema maintains the properties of the analytic solutions as boundedness and the positivity. Numerical examples, for testing the applicability of the utilized method and to show the simplicity, accuracy and efficiency of this approximation approach, are presented with some comprising with standard difference methods.

Keywords:

Mathematics Subject Classification: 26A33, 49M25, 65L03.

Citation:

Full Text(HTML)

Figure 1. Approximations of the control variables with different final time

Download: Full-size image PowerPoint slide

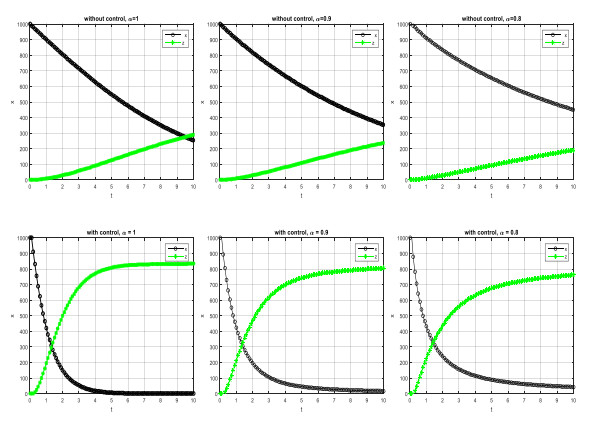

Figure 2. Comparison between the solutions of $ x,\ z $ with control and without control when $ \alpha(t) $ takes different constant values

Download: Full-size image PowerPoint slide

Figure 3. Solutions of $ x $ and $ z $ when $ \tau $ and $ \alpha(t) $ have different values

Download: Full-size image PowerPoint slide

Figure 4. Solutions of $ x $ and $ z $ when $ \tau $ and $ \alpha(t) $ have different values

Download: Full-size image PowerPoint slide

Figure 5. Solutions of $ x $ and $ z $ when $ \tau $ has different values

Download: Full-size image PowerPoint slide

Figure 6. Solutions of $ x $ and $ z $ when $ \tau $ has different values

Download: Full-size image PowerPoint slide

Figure 7. Solutions of $ x $ and $ z $ when $ \tau $ has different values

Download: Full-size image PowerPoint slide

Figure 8. Solutions of $ x $ and $ z $ when $ \tau $ has different values

Download: Full-size image PowerPoint slide

Figure 9. Relation between the variables $ x(t) $ and $ x(t-\tau) $

Download: Full-size image PowerPoint slide

Table 1. Notations in the proposed model (1)-(2) with their definition

Symbol	Definition
$ N(t) $	The whole number of the population, $ N(t)=x(t)+y(t)+z(t). $ (summation of all unknowns)
$ ^{c}_{0}D^{\alpha(t)}_{t} $	Fractional variable order derivative operator in Caputo sense.
$ \alpha(t) $	The order of variable fractional derivative.
$ t $	$ t\geq 0 $, time.
$ x(t) $	The cardinality of the set of persons who did not realize anything about the goods.
$ u $	Awareness, which switches the persons from $ x(t) $, the group who do not aware, into
	the prospective one $ y(t) $ by letting them know the goods.
$ y(t) $	The cardinality of the set of persons who realize the goods but they did not purchase it till now.
$ v $	Trial advertisement, which switches the people from $ y(t) $, the prospective group, into
	the bought set $ z(t) $ by encouraging them to buy the goods.
$ z(t) $	The cardinality of the set of individuals who really bought the goods.
$ a $	First purchase, (Trial rate).
$ k $	Contact rate.
$ r $	Discount rate.
$ \delta $	Switching rate.
$ c $	$ c=p(r+\delta+g) $.
$ p $	Net price.
$ g $	Repeat purchase.
$ \mu_{_b} $	Birth rate.
$ \mu_{_d} $	Death rate.

| Show Table

DownLoad: CSV

Table 2. Final values of the states variables and the values of objective functional using NSFDM and SFDM when $ t_{final} = 10 $ and different $ \alpha(t) $

$ \alpha(t) $	NSFDM
$ \alpha(t) $	$ J $	$ x $	$ z $
1	$ 286.14 $	0	834
0.9	$ 267.09 $	17	804
$ 0.5+0.5e^{-(t)^2-1} $	$ 248.98 $	42	762
$ \frac{5+cos^2(t)}{10} $	$ 256.74 $	77	709

| Show Table

DownLoad: CSV
