Multi-fidelity generative deep learning turbulent flows

Nicholas Geneva; Nicholas Zabaras

doi:10.3934/fods.2020019

Article Contents

2020, Volume 2, Issue 4: 391-428. Doi: 10.3934/fods.2020019

This issue Previous Article Multilevel Ensemble Kalman Filtering based on a sample average of independent EnKF estimators Next Article Observations on the bias of nonnegative mechanisms for differential privacy

Multi-fidelity generative deep learning turbulent flows

Nicholas Geneva and
Nicholas Zabaras^,

Scientific Computing and Artificial Intelligence (SCAI) Laboratory, University of Notre Dame, 311 Cushing Hall, Notre Dame, IN 46556, USA

^*Corresponding author: Nicholas Zabaras
^*Corresponding author: Nicholas Zabaras

Received: September 30, 2020

Early access: December 2020

Published: December 2020

Abstract Full Text(HTML) Figure(29) / Table(7) Related Papers Cited by

Abstract

In computational fluid dynamics, there is an inevitable trade off between accuracy and computational cost. In this work, a novel multi-fidelity deep generative model is introduced for the surrogate modeling of high-fidelity turbulent flow fields given the solution of a computationally inexpensive but inaccurate low-fidelity solver. The resulting surrogate is able to generate physically accurate turbulent realizations at a computational cost magnitudes lower than that of a high-fidelity simulation. The deep generative model developed is a conditional invertible neural network, built with normalizing flows, with recurrent LSTM connections that allow for stable training of transient systems with high predictive accuracy. The model is trained with a variational loss that combines both data-driven and physics-constrained learning. This deep generative model is applied to non-trivial high Reynolds number flows governed by the Navier-Stokes equations including turbulent flow over a backwards facing step at different Reynolds numbers and turbulent wake behind an array of bluff bodies. For both of these examples, the model is able to generate unique yet physically accurate turbulent fluid flows conditioned on an inexpensive low-fidelity solution.

Keywords:

Mathematics Subject Classification: Primary: 68T07, 68T37; Secondary: 37N10.

Citation:

Full Text(HTML)

Figure 1. Comparison between traditional hybrid VLES-LES simulation (left) and the proposed multi-fidelity deep generative turbulence model (right) for studying the wake behind a wall-mounted cube

Download: Full-size image PowerPoint slide

Figure 2. Comparison of the forward and backward passes of various INN structures including (left to right) the standard INN, conditional INN (CINN) [76] and transient multi-fidelity Glow (TM-Glow) introduced in Section 3.2

Download: Full-size image PowerPoint slide

Figure 3. Unfolded computational graph of a recurrent neural network model for which the arrows show functional dependence

Download: Full-size image PowerPoint slide

Figure 4. TM-Glow model. This model is comprised of a low-fidelity encoder that conditions a generative flow model to produce samples of high-fidelity field snapshots. LSTM affine blocks are introduced to pass information between time-steps using recurrent connections. Boxes with rounded corners in (a) indicate a stack of the elements inside and should not be confused with plate notation. Arrows illustrate the forward pass of the INN. (For interpretation of the colors in the figure(s), the reader is referred to the web version of this article.)

Download: Full-size image PowerPoint slide

Figure 5. The unrolled computational graph of the TM-Glow model for a model depth of $ k_{d} = 3 $

Download: Full-size image PowerPoint slide

Figure 6. The LSTM affine block used in TM-Glow consisting of $ k_{c} $ affine coupling layers including an unnormalized conditional affine block (UnNorm Block), a stack of conditional affine blocks (Conditional Block) and a conditional LSTM affine block (LSTM Block)

Download: Full-size image PowerPoint slide

Figure 7. The two variants of affine coupling layers used in TM-Glow with an input and output denoted as $ \mathit{\boldsymbol{h}}_{k-1} = \left\{\mathit{\boldsymbol{h}}_{k-1}^{1}, \mathit{\boldsymbol{h}}_{k-1}^{2}\right\} $ and $ \mathit{\boldsymbol{h}}_{k} = \left\{\mathit{\boldsymbol{h}}_{k}^{1}, \mathit{\boldsymbol{h}}_{k}^{2}\right\} $, respectively. Time-step superscripts have been omitted for clarity of presentation

Download: Full-size image PowerPoint slide

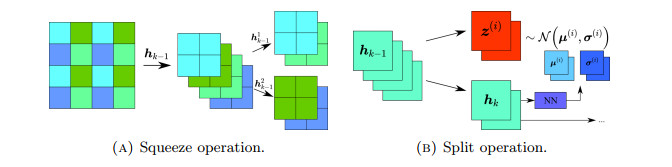

Figure 8. Squeeze and split forward operations used to manipulate the dimensionality of the features in TM-Glow. (Left) The squeeze operation compresses the input feature map $ \mathit{\boldsymbol{h}}_{k-1} $ using a checkerboard pattern halving the spatial dimensionality and increasing the number of channels by four. (Right) The split operation factors out half of an input $ \mathit{\boldsymbol{h}}_{k-1} $ which are then taken to be latent random variable $ \mathit{\boldsymbol{z}}^{(i)} $. The remaining features, $ \mathit{\boldsymbol{h}}_{k} $ are sent deeper in the network. Time-step superscripts have been omitted for clarity of presentation

Download: Full-size image PowerPoint slide

Figure 9. Dense block with a growth rate and length of $ 2 $. Residual connections between convolutions progressively stack feature maps resulting in $ 12 $ output channels in this schematic. Standard batch-normalization [25] and Rectified Linear Unit (ReLU) activation functions are used [11] in junction with the convolutional operations. Convolutions are denoted by the kernel size $ k $, stride $ s $ and padding $ p $

Download: Full-size image PowerPoint slide

Figure 10. (Left to right) Velocity magnitude MSE and turbulent kinetic energy (TKE) test MSE for TM-Glow models containing $ k_{d}\cdot k_{c} $ affine coupling layers

Download: Full-size image PowerPoint slide

Figure 11. Reliability diagrams of the predicted x-velocity, y-velocity and pressure fields predicted with TM-Glow evaluated over $ 12000 $ model predictions. The black dashed line indicates matching empirical distributions between the model's samples and observed validation data

Download: Full-size image PowerPoint slide

Figure 12. Flow over a backwards step. The green region indicates the recirculation region TM-Glow will be used to predict. All domain boundaries are no-slip with the exceptions of the uniform inlet and zero gradient outlet. The total outlet simulation length is made to be double that of the prediction range to negate effects of the boundary condition on this zone

Download: Full-size image PowerPoint slide

Figure 13. Computational mesh around the backwards step used for the low- and high-fidelity CFD simulations solved with OpenFOAM [27]

Download: Full-size image PowerPoint slide

Figure 14. (Left to right) Flow over backwards step velocity magnitude and turbulent kinetic energy (TKE) error during training of TM-Glow on different data set sizes. Error values were average over five model samples

Download: Full-size image PowerPoint slide

Figure 15. (Top to bottom) Velocity magnitude of the high-fidelity target, low-fidelity input, $ 3 $ TM-Glow samples and standard deviation for two test flows

Download: Full-size image PowerPoint slide

Figure 16. (Top to bottom) Q-criterion of the high-fidelity target, low-fidelity input and three TM-Glow samples for two test flows

Download: Full-size image PowerPoint slide

Figure 17. TM-Glow time-series samples of $ x- $velocity, $ y- $velocity and pressure fields for a backwards step test case at $ Re = 7500 $. For each field (top to bottom) the high-fidelity ground truth, low-fidelity input, three TM-Glow samples and the resulting standard deviation are plotted

Download: Full-size image PowerPoint slide

Figure 18. (Top to bottom) Time averaged x-velocity, y-velocity and pressure profiles for two different test cases at (left to right) $ Re = 7500 $ and $ Re = 47500 $. TM-Glow expectation (TM-Glow) and confidence interval (TM-Glow $ 2\sigma $) are computed using $ 20 $ time-series samples

Download: Full-size image PowerPoint slide

Figure 19. (Top to bottom) Turbulent kinetic energy and Reynolds shear stress profiles for two different test cases at (left to right) $ Re = 7500 $ and $ Re = 47500 $. TM-Glow expectation (TM-Glow) and confidence interval (TM-Glow $ 2\sigma $) are computed using $ 20 $ time-series samples

Download: Full-size image PowerPoint slide

Figure 20. Flow around array of bluff bodies. The red region indicates the area for which the bodies can be placed randomly. The green region indicates the wake zone that we will use TM-Glow to predict a high-fidelity response from a low-fidelity simulation

Download: Full-size image PowerPoint slide

Figure 21. Velocity magnitude of the low-fidelity and high-fidelity simulations for two different cylinder arrays. (Left to right) Cylinder array configuration and the corresponding (top to bottom) high-fidelity and low-fidelity finite volume simulation results at several time-steps

Download: Full-size image PowerPoint slide

Figure 22. Computational mesh around the cylinder array used for the low- and high-fidelity CFD simulations solved with OpenFOAM [27]

Download: Full-size image PowerPoint slide

Figure 23. (Left to right) Cylinder array velocity magnitude and turbulent kinetic energy (TKE) error during training of TM-Glow on different data set sizes. Error values were average over five model samples

Download: Full-size image PowerPoint slide

Figure 24. (Top to bottom) Velocity magnitude of the high-fidelity target, low-fidelity input, three TM-Glow samples and standard deviation for two test cases

Download: Full-size image PowerPoint slide

Figure 25. TM-Glow time-series samples of $ x- $velocity, $ y- $velocity and pressure fields for a cylinder array test case. For each field (top to bottom) the high-fidelity ground truth, low-fidelity input, three TM-Glow samples and the resulting standard deviation are plotted

Download: Full-size image PowerPoint slide

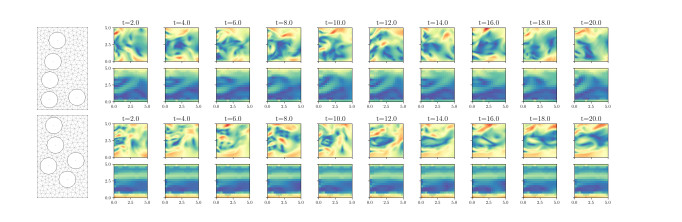

Figure 26. TM-Glow time-series samples of $ x- $velocity, $ y- $velocity and pressure fields for a cylinder array test case. For each field (top to bottom) the high-fidelity ground truth, low-fidelity input, three TM-Glow samples and the resulting standard deviation are plotted

Download: Full-size image PowerPoint slide

Figure 27. Time-averaged flow profiles for two test flows. TM-Glow expectation (TM-Glow) and confidence interval (TM-Glow $ 2\sigma $) are computed using $ 20 $ time-series samples

Download: Full-size image PowerPoint slide

Figure 28. Turbulent statistic profiles for two test flows. TM-Glow expectation (TM-Glow) and confidence interval (TM-Glow $ 2\sigma $) are computed using $ 20 $ time-series samples

Download: Full-size image PowerPoint slide

Figure 29. Computational requirement for training TM-Glow given training data-sets of various sizes. Computation is quantified using Service Units (SU) defined in Table 6

Download: Full-size image PowerPoint slide

Table 1. Invertible operations used in the generative normalizing flow method of TM-Glow. Being consistent with the notation in [31], we assume the inputs and outputs of each operation are of dimension $ \mathit{\boldsymbol{h}}_{k-1}, \mathit{\boldsymbol{h}}_{k} \in \mathbb{R}^{c\times h \times w} $ with $ c $ channels and a feature map size of $ \left[h \times w\right] $. Indexes over the spatial domain of the feature map are denoted by $ \mathit{\boldsymbol{h}}(x, y)\in \mathbb{R}^{c} $. The coupling neural network and convolutional LSTM are abbreviated as $ NN $ and $ LSTM $, respectively. Time-step superscripts have been neglected for clarity of presentation

Operation	Forward	Inverse	Log Jacobian
Conditional Affine Layer	$\begin{aligned} \left\{\boldsymbol{h}_{k-1}^{1}, \boldsymbol{h}_{k-1}^{2}\right\} = \boldsymbol{h}_{k-1}\\ (\log \boldsymbol{s}, \boldsymbol{t}) = NN(\boldsymbol{h}_{i-1}^{1}, \boldsymbol{\xi}^{(i)})\\ \boldsymbol{h}_{k}^{2}=\exp\left(\log \boldsymbol{s}\right)\odot \boldsymbol{h}_{k-1}^{2} + \boldsymbol{t}\\ \boldsymbol{h}{h}_{k}^{1} = \boldsymbol{h}_{k-1}^{1}\\ \boldsymbol{h}{h}_{k} = \left\{\boldsymbol{h}_{k}^{1}, \boldsymbol{h}_{k}^{2}\right\} \end{aligned}$	$\begin{aligned} \left\{\boldsymbol{h}_{k}^{1}, \boldsymbol{h}_{k}^{2}\right\} = \boldsymbol{h}_{k} \\ (\log \boldsymbol{s}, \boldsymbol{t}) = NN(\boldsymbol{h}_{k}^{1}, \boldsymbol{\xi}^{(i)})\\ \boldsymbol{h}{h}_{k-1}^{2}= \left(\boldsymbol{h}_{k}^{2} - \boldsymbol{t}\right)/\exp\left(\log \boldsymbol{s}\right)\\ \boldsymbol{h}_{k-1}^{1} = \boldsymbol{h}_{k}^{1}\\ \boldsymbol{h}{h}_{k-1} = \left\{\boldsymbol{h}_{k-1}^{1}, \boldsymbol{h}_{k-1}^{2}\right\} \end{aligned}$	$\textrm{sum}\left(\log \left\|\boldsymbol{s}\right\|\right)$
LSTM Affine Layer	$\begin{aligned} \left\{\boldsymbol{h}_{k-1}^{1}, \boldsymbol{h}_{k-1}^{2}\right\} = \boldsymbol{h}_{i-1}\\ \boldsymbol{a}^{(i)}_{out}, \boldsymbol{c}^{(i)}_{out} = LSTM\left(\boldsymbol{h}_{k-1}^{1}, \boldsymbol{\xi}^{(i)}, \boldsymbol{a}^{(i)}_{in}, \boldsymbol{c}^{(i)}_{in}\right)\\ (\log \boldsymbol{s}, \boldsymbol{t}) = NN(\boldsymbol{h}_{k-1}^{1}, \boldsymbol{\xi}^{(i)}, \boldsymbol{a}^{(i)}_{out})\\ \boldsymbol{h}{h}_{k}^{2}=\exp\left(\log \boldsymbol{s}\right)\odot \boldsymbol{h}_{k-1}^{2} + \boldsymbol{t}\\ \boldsymbol{h}{h}_{k}^{1} = \boldsymbol{h}_{k-1}^{1}\\ \boldsymbol{h}{h}_{k} = \left\{\boldsymbol{h}_{k}^{1}, \boldsymbol{h}_{k}^{2}\right\} \end{aligned}$	$\begin{aligned} \left\{\boldsymbol{h}_{k}^{1}, \boldsymbol{h}_{k}^{2}\right\} = \boldsymbol{h}_{k} \\ \boldsymbol{h}{a}^{(i)}_{out}, \boldsymbol{c}^{(i)}_{out} = LSTM\left(\boldsymbol{h}_{k}^{1}, \boldsymbol{\xi}^{(i)}, \boldsymbol{a}^{(i)}_{in}, \boldsymbol{c}^{(i)}_{in}\right)\\ (\log \boldsymbol{s}, \boldsymbol{t}) = NN(\boldsymbol{h}_{k}^{1}, \boldsymbol{\xi}^{(i)}, \boldsymbol{a}^{(i)}_{out})\\ \boldsymbol{h}_{k-1}^{2}= \left(\boldsymbol{h}_{k}^{2} - \boldsymbol{t}\right)/\exp\left(\log \boldsymbol{s}\right)\\ \boldsymbol{h}_{k-1}^{1} = \boldsymbol{h}_{k}^{1}\\ \boldsymbol{h}{h}_{k-1} = \left\{\boldsymbol{h}_{k-1}^{1}, \boldsymbol{h}_{k-1}^{2}\right\} \end{aligned}$	$\textrm{sum}\left(\log \left\|\boldsymbol{s}\right\|\right)$
ActNorm	$\forall x,y\quad \boldsymbol{h}_{k}(x,y)=\boldsymbol{s}\odot \boldsymbol{h}_{k-1}(x,y) + \boldsymbol{b}$	$\forall x,y\quad \boldsymbol{h}_{k-1}(x,y)=(\boldsymbol{h}_{k}(x,y)-\boldsymbol{b})/\boldsymbol{s}$	$h\cdot w \cdot \textrm{sum}\left(\log \left\|\boldsymbol{s}\right\|\right)$
$1\times 1$ Convolution	$\forall x,y\quad \boldsymbol{h}_{k}(x,y)=\boldsymbol{W}\boldsymbol{h}_{k-1}(x,y) \quad \boldsymbol{W}\in\mathbb{R}^{c\times c}$	$\forall x,y\quad \boldsymbol{h}_{k-1}(x,y) =\boldsymbol{W}^{-1}\boldsymbol{h}_{k}(x,y)$	$h\cdot w \cdot \log\left(\det \left\|\boldsymbol{W}\right\|\right)$
Split	$\begin{aligned} \left\{\boldsymbol{h}_{k-1}^{1}, \boldsymbol{h}_{k-1}^{2}\right\} = \boldsymbol{h}_{k-1} \\ \left(\boldsymbol{\mu},\boldsymbol{\sigma}\right) = NN\left(\boldsymbol{h}_{k-1}^{1}\right) \\ p_{\boldsymbol{\theta}}(\boldsymbol{z}_{k}) = \mathcal{N}\left(\boldsymbol{h}_{k-1}^{2}\| \boldsymbol{\mu}, \boldsymbol{\sigma} \right)\\ \boldsymbol{h}{h}_{k} = \boldsymbol{h}_{k-1}^{1} \end{aligned}$	$\begin{aligned} \boldsymbol{h}_{k-1}^{1} = \boldsymbol{h}_{k} \\ \left(\boldsymbol{\mu},\boldsymbol{\sigma}\right) = NN\left(\boldsymbol{h}_{k-1}^{1}\right)\\ \boldsymbol{h}{h}_{k-1}^{2} \sim \mathcal{N}\left(\boldsymbol{\mu},\boldsymbol{\sigma} \right)\\ \boldsymbol{h}{h}_{k-1} = \left\{\boldsymbol{h}_{k-1}^{1}, \boldsymbol{h}_{k-1}^{2}\right\} \end{aligned}$	N/A

| Show Table

DownLoad: CSV

Table 2. TM-Glow model and training parameters used for both numerical test cases. For the parameters that vary between test cases the superscript $ \dagger $ and $ \ddagger $ to denote numerical examples in Sections 5 and 6, respectively. Hyper-parameter differences are due to memory constraints imposed from the varying predictive domain sizes

TM-Glow		Training
Model Depth, $ k_{d} $	$ 3 $	Optimizer	ADAM [29]
Conditional Features, $ \mathit{\boldsymbol{\xi}}^{(i)} $	$ 32 $	Weight Decay	$ 1e-6 $
Recurrent Features, $ \mathit{\boldsymbol{a}}^{(i)}_{in}, \mathit{\boldsymbol{c}}^{(i)}_{in} $	$ 64, 64 $	Epochs	$ 400 $
Affine Coupling Layers, $ k_{c} $	$ 16 $	Mini-batch Size	$ 32^{\dagger}, 64^{\ddagger} $
Coupling NN Layers	$ 2 $	BPTT	$ 10 $ time-steps
		Inverse Temp., $ \beta $	200

| Show Table

DownLoad: CSV

Table 3. Ablation study of the impact of different parts of the backward KL loss. As a base-line we also train TM-Glow using the standard maximum likelihood estimation (MLE) approach. The mean square error (MSE) of various flow field quantities for various loss formulations are listed. The lowest values for each error are bolded

MLE	$ V_{Pres} $	$ V_{Div} $	$ V_{L2} $	$ V_{RMS} $	$ MSE\left(\overline{\mathit{\boldsymbol{u}}}_{x}\right) $	$ MSE\left(\overline{\mathit{\boldsymbol{u}}}_{y}\right) $	$ MSE\left(\overline{\mathit{\boldsymbol{p}}}\right) $	$ MSE\left(\sqrt{\overline{\left(\mathit{\boldsymbol{u}}^{'}_{x}\right)^{2}}}\right) $	$ MSE\left(\sqrt{\overline{\left(\mathit{\boldsymbol{u}}^{'}_{y}\right)^{2}}}\right) $	$ MSE\left(\sqrt{\overline{\left(\mathit{\boldsymbol{p}}^{'}\right)^{2}}}\right) $	$ \overline{V_{Div}} $	$ \overline{V_{Pres}} $
✔	✘	✘	✘	✘	0.0589	0.0085	0.0135	0.0204	0.0486	0.0137	0.0019	0.0615
✘	✔	✔	✔	✔	0.0490	0.0115	0.0188	0.0168	0.0292	0.0125	0.0012	0.0192
✘	✘	✔	✔	✔	0.0390	0.0078	0.0189	0.0162	0.0251	0.0106	0.0013	0.0402
✘	✘	✘	✔	✔	0.0463	0.0113	0.0158	0.0166	0.0256	0.0129	0.0012	0.0424
✘	✘	✘	✔	✘	0.0435	0.0089	0.0140	0.0168	0.0272	0.0131	0.0012	0.0366

| Show Table

DownLoad: CSV

Table 4. Backwards step test error of various normalized time-averaged flow field quantities of the low-fidelity solution interpolated to the high-fidelity mesh and TM-Glow trained on various training data set sizes. Lower is better. TM-Glow errors were averaged over $ 20 $ samples from the model. The training wall-clock (WC) time of each data set size is also listed

	$ MSE\left(\overline{\mathit{\boldsymbol{u}}}_{x}/u_{0}\right) $	$ MSE\left(\overline{\mathit{\boldsymbol{u}}}_{y}/u_{0}\right) $	$ MSE\left(\overline{\mathit{\boldsymbol{p}}}/u^{2}_{0}\right) $	$ MSE\left(\sqrt{\overline{\left(\mathit{\boldsymbol{u}}^{'}_{x}\right)^{2}}}/u_{0}\right) $	$ MSE\left(\sqrt{\overline{\left(\mathit{\boldsymbol{u}}^{'}_{y}\right)^{2}}}/u_{0}\right) $	$ MSE\left(\sqrt{\overline{\left(\mathit{\boldsymbol{p}}^{'}\right)^{2}}}/u^{2}_{0}\right) $	WC Hrs.
Low-Fidelity	0.1212	0.0224	0.0199	0.0237	0.0177	0.0124	-
$ 8 $ Flows	0.0182	0.0036	0.0023	0.0053	0.0059	0.0034	6.5
$ 16 $ Flows	0.0185	0.0031	0.0021	0.0030	0.0033	0.0023	10.0
$ 32 $ Flows	0.0091	0.0019	0.0014	0.0022	0.0022	0.0014	12.1
$ 48 $ Flows	0.0074	0.0017	0.0014	0.0021	0.0022	0.0013	16.6

| Show Table

DownLoad: CSV

Table 5. Cylinder array test error of various time-averaged flow field quantities of the low-fidelity solution interpolated to the high-fidelity mesh and TM-Glow trained on different training data set sizes. Lower is better. TM-Glow errors were averaged over $ 20 $ samples from the model. The training wall-clock (WC) time of each data set size is also listed

	$ MSE\left(\overline{\mathit{\boldsymbol{u}}}_{x}\right) $	$ MSE\left(\overline{\mathit{\boldsymbol{u}}}_{y}\right) $	$ MSE\left(\overline{\mathit{\boldsymbol{p}}}\right) $	$ MSE\left(\sqrt{\overline{\left(\mathit{\boldsymbol{u}}^{'}_{x}\right)^{2}}}\right) $	$ MSE\left(\sqrt{\overline{\left(\mathit{\boldsymbol{u}}^{'}_{y}\right)^{2}}}\right) $	$ MSE\left(\sqrt{\overline{\left(\mathit{\boldsymbol{p}}^{'}\right)^{2}}}\right) $	WC Hrs.
Low-Fidelity	0.1033	0.0081	0.0179	0.0655	0.0981	0.02156	-
$ 16 $ Flows	0.0461	0.0078	0.0292	0.0116	0.0191	0.00096	4.3
$ 32 $ Flows	0.0461	0.0078	0.0166	0.0128	0.0185	0.0093	4.9
$ 64 $ Flows	0.0409	0.0062	0.0118	0.0107	0.0172	0.0084	6.8
$ 96 $ Flows	0.0386	0.0059	0.0128	0.0100	0.0152	0.0074	10.3

| Show Table

DownLoad: CSV

Table 6. Hardware used to run the low-fidelity and high-fidelity CFD simulations as well as the training and prediction of TM-Glow for both numerical examples

	CPU Cores	CPU Model	GPUs	GPU Model	SU Hour
Low-Fidelity	1	Intel Xeon E5-2680	-	-	1
High-Fidelity	8	Intel Xeon E5-2680	-	-	8
TM-Glow	1	Intel Xeon Gold 6226	4	NVIDIA Tesla V100	8

| Show Table

DownLoad: CSV

Table 7. Prediction cost of the surrogate compared to the high-fidelity simulator for flow over a backwards step (left) and flow around a cylinder array (right).

Backwards Step	SU Hours	Wall-clock (mins)
Low-Fidelity	0.06	4.5
TM-Glow 20 Samples	0.03	0.75
Surrogate Prediction	0.09	5.25
High-Fidelity Prediction	5.6	42

| Show Table

DownLoad: CSV
