Time-invariant radon transform by generalized Fourier slice theorem

Ali Gholami; Mauricio D. Sacchi

doi:10.3934/ipi.2017023

Article Contents

2017, Volume 11, Issue 3: 501-519. Doi: 10.3934/ipi.2017023

This issue Previous Article Ambient noise correlation-based imaging with moving sensors Next Article Recovering the boundary corrosion from electrical potential distribution using partial boundary data

Time-invariant radon transform by generalized Fourier slice theorem

Ali Gholami^1, , and
Mauricio D. Sacchi^2,

1.
Institute of Geophysics, University of Tehran, Tehran, Iran
2.
Department of Physics, University of Alberta, Edmonton, AB, Canada

* Corresponding author: Ali Gholami
* Corresponding author: Ali Gholami

Received: April 2015

Revised: January 2017

Published: August 2017

Abstract Full Text(HTML) Figure(11) / Table(3) Related Papers Cited by

Abstract

Time-invariant Radon transforms play an important role in many fields of imaging sciences, whereby a function is transformed linearly by integrating it along specific paths, e.g. straight lines, parabolas, etc. In the case of linear Radon transform, the Fourier slice theorem establishes a simple analytic relationship between the 2-D Fourier representation of the function and the 1-D Fourier representation of its Radon transform. However, the theorem can not be utilized for computing the Radon integral along paths other than straight lines. We generalize the Fourier slice theorem to make it applicable to general time-invariant Radon transforms. Specifically, we derive an analytic expression that connects the 1-D Fourier coefficients of the function to the 2-D Fourier coefficients of its general Radon transform. For discrete data, the model coefficients are defined over the data coefficients on non-Cartesian points. It is shown numerically that a simple linear interpolation provide satisfactory results and in this case implementations of both the inverse operator and its adjoint are fast in the sense that they run in $O(N \;\text{log}\; N)$ flops, where $N$ is the maximum number of samples in the data space or model space. These two canonical operators are utilized for efficient implementation of the sparse Radon transform via the split Bregman iterative method. We provide numerical examples showing high-performance of this method for noise attenuation and wavefield separation in seismic data.

Keywords:

Mathematics Subject Classification: Primary: 44A12; Secondary: 86A15.

Citation:

Full Text(HTML)

Figure 1. Graphical representation of the Fourier slice theorem. The seismogram $v$ includes a linear event. The projection of $v$ along the slope of the event is the red line shown in $u$ which is the IFT of the radial slice taken from $\hat{v}$ using relation $k_x=fp$

Download: Full-size image PowerPoint slide

Figure 2. Graphical representation of the generalized Fourier slice theorem. The seismogram $v$ includes a linear event. The Fourier transform of a trace at offset $x$ is the same as the radical slice taken through the 2-D Fourier transform of its linear Radon transform $u$ using the relation $k_p=f x$

Download: Full-size image PowerPoint slide

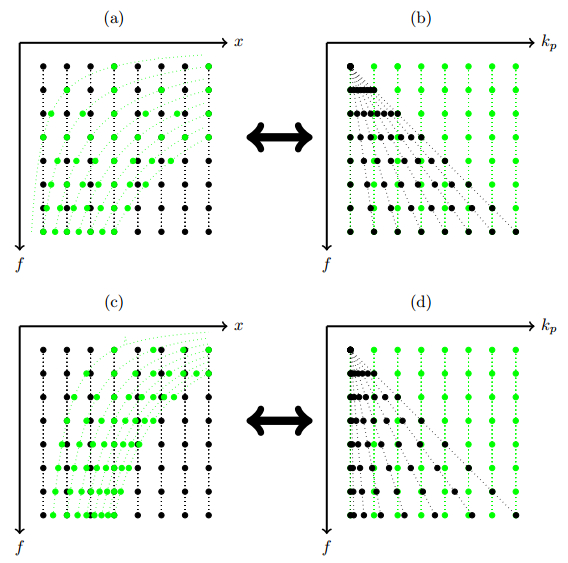

Figure 3. Relation between the grid points of the Radon plane $\hat{u}(f,k_p)$ (in green) and those of the data $\hat{v}(f,x)$ (in black) corresponding to the forward linear (a) and parabolic (c) Radon transforms. (b) and (d) show the grid points for the inverse transformations

Download: Full-size image PowerPoint slide

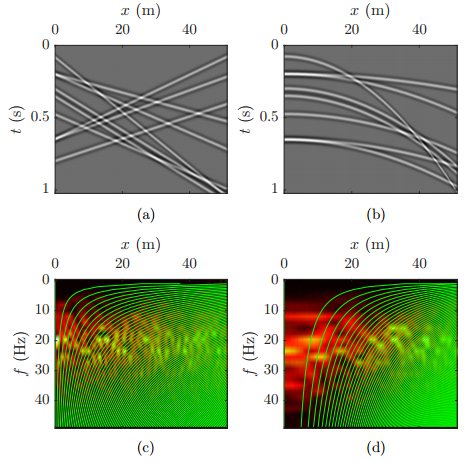

Figure 4. Simulated 2-D data sets including linear (a) and parabolic (b) events. For both data sets $N_t=N_x=1024$. (c) and (d) are the $f-x$ representation of the data (absolute value). The green paths show constant wavenumber of the corresponding Radon panel. The proposed non-sparse and sparse Radon transforms have been applied to these data and the results are shown in Figures 5 and 6

Download: Full-size image PowerPoint slide

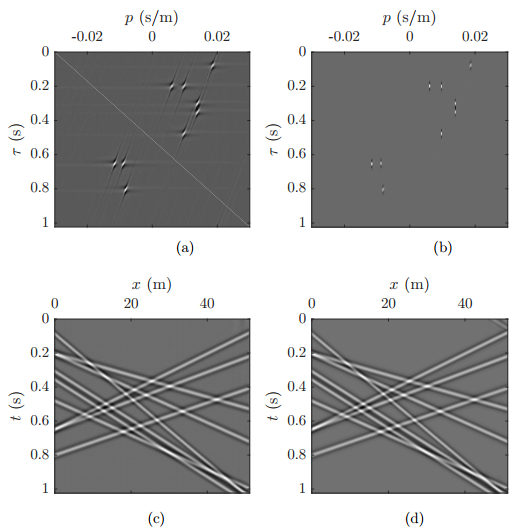

Figure 5. Non-sparse (a) and sparse (b) linear Radon transform of the data shown in Figure 4(a). (c) and (d) show the predicted data. The sparse solution has been obtained via 20 Bregman iterations with computational time = 1.2 seconds

Download: Full-size image PowerPoint slide

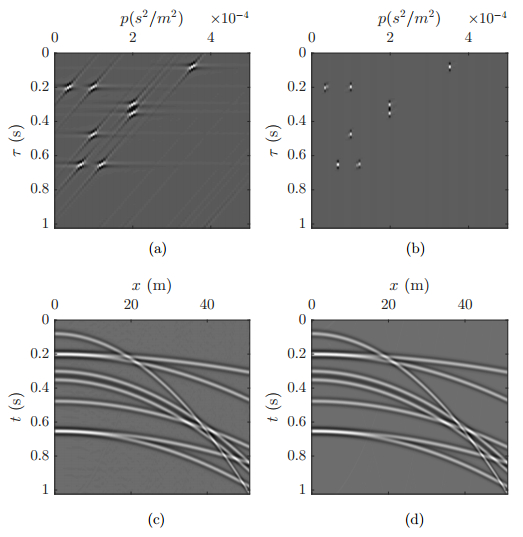

Figure 6. Non-sparse (a) and sparse (b) parabolic Radon transforms of the data shown in Figure 4(b). (c) and (d) show the predicted data. The sparse solution has been obtained by 20 Bregman iterations with computational time = 1.2 seconds

Download: Full-size image PowerPoint slide

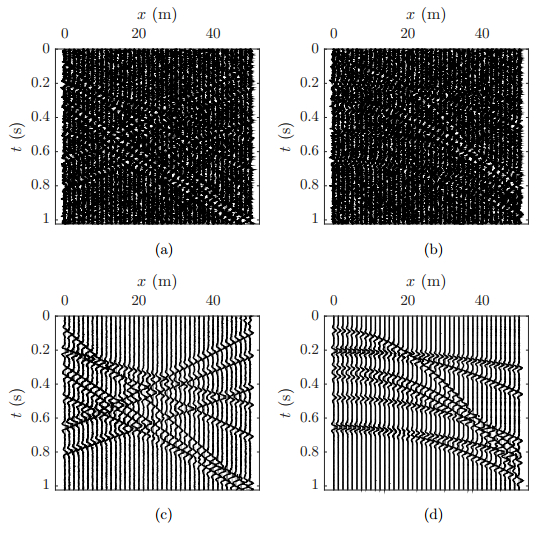

Figure 7. (a) and (b) show wiggle plot of the noise contaminated seismic data shown in Figure 4 (SNR=-5 dB). (c) and (d) show denoised data by the proposed sparse Radon transform

Download: Full-size image PowerPoint slide

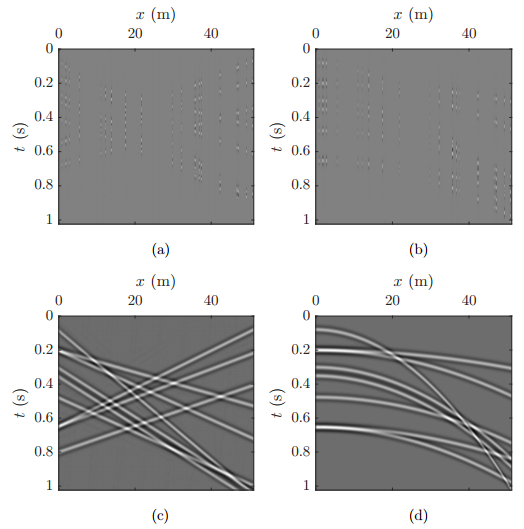

Figure 8. (a) and (b) show decimated seismic data shown in Figure 4, generated by randomly removing 98 percent of the traces (1000 out of 1024). (c) and (d) show reconstructed data by the proposed sparse Radon transforms

Download: Full-size image PowerPoint slide

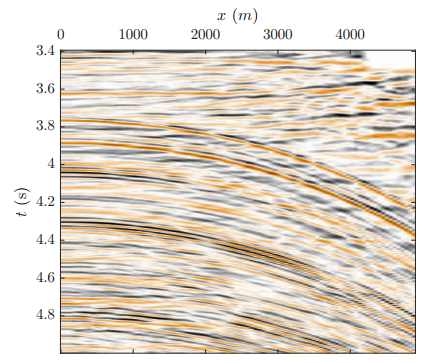

Figure 9. A field CMP gather, NMO corrected using the velocity of primaries. Note that the primary waves are flatted (with $p$ values clustered around zero) but multiples show parabolic moveouts

Download: Full-size image PowerPoint slide

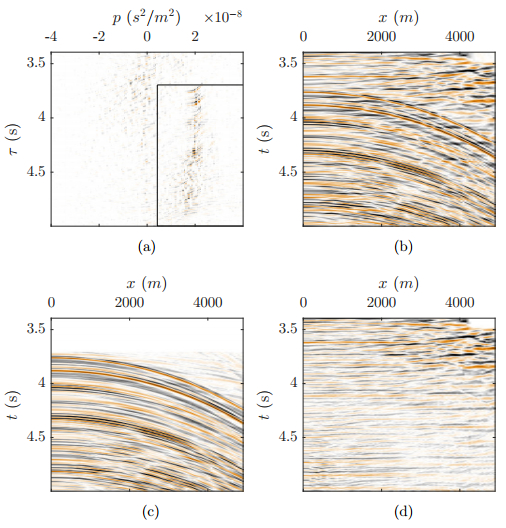

Figure 10. (a) Sparse parabolic Radon transform of the field data (Figure 7), obtained by generalized Fourier slice theorem, and (b) the corresponding predicted data. (c) Separated multiples, corresponding to the coefficients enclosed by the rectangle in (a). (d) Separated primaries, obtained by subtraction of (c) from the original wavefield

Download: Full-size image PowerPoint slide

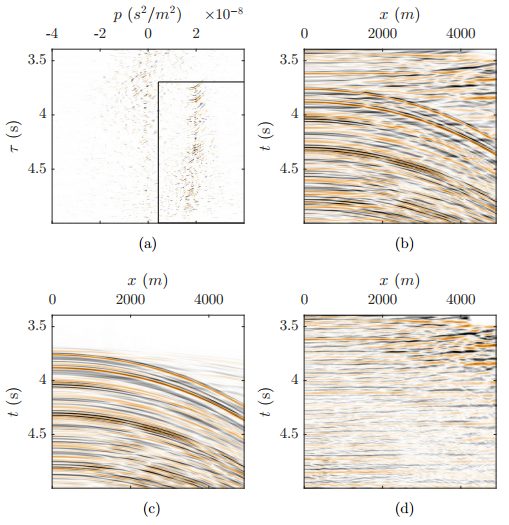

Figure 11. (a) Sparse parabolic Radon transform of the field data (Figure 7), obtained by direct method and FISTA, and (b) the corresponding predicted data. (c) Separated multiples, corresponding to the coefficients enclosed by the rectangle in (a). (d) Separated primaries, obtained by subtraction of (c) from the original wavefield

Download: Full-size image PowerPoint slide

Table 1. Computational time (in sec) for the (non-sparse or least squares) forward parabolic Radon transform via the generalized Fourier slice theorem (GFST) and three linear solvers: Backslash, Levinson, and preconditioned conjugate gradient method with the Chan preconditioner, the speed-up gained over these solvers, and the mean-squared-error compared to the Backslash method.$N_t$ refers to the time length of the square data matrices for the experiments

	Backslash	Levinson	PCG-Chan	GFST
$N_t$	Time	Time	Time	Time	speed-up			Error
$N_t$	Time	Time	Time	Time	Backslash	Levinson	PCG-Chan	Error
$2^9$	4.6480	6.3021	1.2668	0.0181	256	348	69	43e-7
$2^{10}$	49.485	32.273	8.3074	0.0615	804	524	135	24e-7
$2^{11}$	595.83	179.41	33.672	0.2447	2434	733	137	11e-7
$2^{12}$	7707.0	1384.2	290.30	1.0561	7297	1310	274	60e-8

| Show Table

DownLoad: CSV

Table 2. Number of iterations, average time per iteration, and total computational time (in sec) for the sparse parabolic Radon transform via Algorithm 1.$N_t$ refers to the time length of the square data matrices for the experiments

$N_t$	Number of iterations	Average time per iteration	Total time
$2^9$	83	0.0332	2.7516
$2^{10}$	70	0.1589	11.122
$2^{11}$	65	0.6638	43.150
$2^{12}$	58	2.4840	144.07

| Show Table

DownLoad: CSV

Table 3. Computational time (in sec) for the inverse parabolic Radon transform via direct sums and the generalized Fourier slice theorem (GFST), speed-up, and mean-squared-error compared to the direct method.$N_t$ refers to the time length of the square data matrices for the experiments

$N_t$	Time		Speed-up	Error
$N_t$	Direct sums	GFST	Speed-up	Error
$2^9$	0.2844	0.0112	25	12e-5
$2^{10}$	2.5050	0.0497	50	11e-6
$2^{11}$	17.926	0.2139	84	33e-7
$2^{12}$	137.45	0.8475	162	34e-7

| Show Table

DownLoad: CSV
