A discrete Liouville identity for numerical reconstruction of Schrödinger potentials

Liliana Borcea; Fernando Guevara Vasquez; Alexander V. Mamonov

doi:10.3934/ipi.2017029

Article Contents

2017, Volume 11, Issue 4: 623-641. Doi: 10.3934/ipi.2017029

This issue Previous Article Landmark-guided elastic shape analysis of human character motions Next Article Convergence and stability of iteratively reweighted least squares for low-rank matrix recovery

A discrete Liouville identity for numerical reconstruction of Schrödinger potentials

1.
Mathematics, University of Michigan, 2074 E Hall, 530 Church St, Ann Arbor, MI 48109-1043, USA
2.
Mathematics, University of Utah, 155 S 1400 E RM 233, Salt Lake City, UT 84112-0090, USA
3.
Mathematics, University of Houston, 4800 Calhoun Rd., Houston, TX, 77004, USA

* Corresponding author: F. Guevara Vasquez
* Corresponding author: F. Guevara Vasquez

Received: December 31, 2015

Revised: March 31, 2017

Published: October 2017

LB acknowledges partial support from ONR Grant N00014-14-1-0077 and NSF grant DMS-1510429. The work of FGV was partially supported by the National Science Foundation grant DMS-1411577. The work of AVM was partially supported by the National Science Foundation grant DMS-1619821.

Abstract Full Text(HTML) Figure(8) Related Papers Cited by

Abstract

We propose a discrete approach for solving an inverse problem for the two-dimensional Schrödinger equation, where the unknown potential is to be determined from the Dirichlet to Neumann map. In the continuum, the problem for absorptive potentials can be transformed with the Liouville identity into a conductivity inverse problem. Its discrete analogue is to find a resistor network matching the measurements, and is well understood. Here we use a discrete Liouville identity to transform its solution to that of Schrödinger's problem. The discrete Schrödinger potential given by the discrete Liouville identity can be used to reconstruct the potential in the continuum in two ways. First, we can obtain a direct but coarse reconstruction by interpreting the values of the discrete Schrödinger potential as averages of the continuum Schrödinger potential on a special sensitivity grid. Second, the discrete Schrödinger potential may be used to reformulate the conventional nonlinear output least squares formulation of the inverse Schrödinger problem. Instead of minimizing the boundary measurement misfit, we minimize the misfit between discrete Schrödinger potentials. This results in a better behaved optimization problem converging in a single Gauss-Newton iteration, and gives good quality reconstructions of the potential, as illustrated by the numerical results.

Keywords:

Mathematics Subject Classification: Primary: 05C22, 35R30, 35J10; Secondary: 05C50, 78A46.

Citation:

Full Text(HTML)

Figure 1. Graphs of class $C(m, n)$, where $n$ the number of boundary nodes and $m$ is equal to the number of edges from the center in a fixed radial direction, plus the number of concentric layers of $n$ edges each. The boundary nodes are shown as circles and the interior nodes as filled (black) circles. Both graphs are critical since $n = 2m+1$

Download: Full-size image PowerPoint slide

Figure 2. A graph $\mathcal{G}$ in black and its line graph $\widetilde{\mathcal{G}}$ in red

Download: Full-size image PowerPoint slide

Figure 3. Conductivities $\sigma^{(i)}$, corresponding to different Schrödinger potentials $q^{(i)}$, $i=1, 2$

Download: Full-size image PowerPoint slide

Figure 4. Sensitivity functions for $n=17$, $q = 1$, i.e. the ''rows'' of $D\mathit{\boldsymbol{Q}}[\mathit{\boldsymbol{M}}(q)] D\mathit{\boldsymbol{M}}[q]$. The other sensitivity functions can be obtained by rotations of integer multiples of $2\pi/17$

Download: Full-size image PowerPoint slide

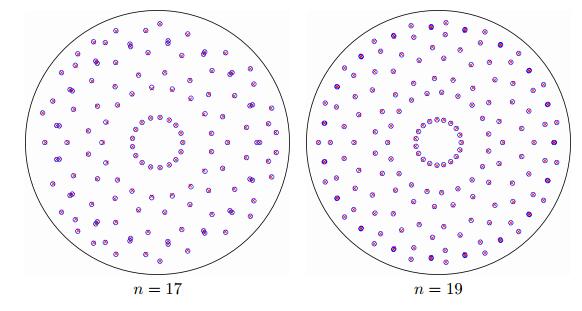

Figure 5. Sensitivity grids. The ''x'' are for $q=1$ and the ''$\circ$'' for $q=3$
