The regularized monotonicity method: Detecting irregular indefinite inclusions

Henrik Garde; Stratos Staboulis

doi:10.3934/ipi.2019006

Article Contents

2019, Volume 13, Issue 1: 93-116. Doi: 10.3934/ipi.2019006

This issue Previous Article Recovering two coefficients in an elliptic equation via phaseless information Next Article Nonconvex TGV regularization model for multiplicative noise removal with spatially varying parameters

The regularized monotonicity method: Detecting irregular indefinite inclusions

Henrik Garde^1, and
Stratos Staboulis^2,

1.
Department of Mathematical Sciences, Aalborg University, Skjernvej 4A, 9220 Aalborg, Denmark
2.
Eniram Oy (A Wärtsilä company), Itälahdenkatu 22a, 00210 Helsinki, Finland

Received: December 31, 2017

Revised: July 31, 2018

Published: December 2018

This research is funded by grant 4002-00123 Improved Impedance Tomography with Hybrid Data from The Danish Council for Independent Research | Natural Sciences.

Abstract Full Text(HTML) Figure(7) Related Papers Cited by

Abstract

In inclusion detection in electrical impedance tomography, the support of perturbations (inclusion) from a known background conductivity is typically reconstructed from idealized continuum data modelled by a Neumann-to-Dirichlet map. Only few reconstruction methods apply when detecting indefinite inclusions, where the conductivity distribution has both more and less conductive parts relative to the background conductivity; one such method is the monotonicity method of Harrach, Seo, and Ullrich [17,15]. We formulate the method for irregular indefinite inclusions, meaning that we make no regularity assumptions on the conductivity perturbations nor on the inclusion boundaries. We show, provided that the perturbations are bounded away from zero, that the outer support of the positive and negative parts of the inclusions can be reconstructed independently. Moreover, we formulate a regularization scheme that applies to a class of approximative measurement models, including the Complete Electrode Model, hence making the method robust against modelling error and noise. In particular, we demonstrate that for a convergent family of approximative models there exists a sequence of regularization parameters such that the outer shape of the inclusions is asymptotically exactly characterized. Finally, a peeling-type reconstruction algorithm is presented and, for the first time in literature, numerical examples of monotonicity reconstructions for indefinite inclusions are presented.

Keywords:

Mathematics Subject Classification: Primary: 35R30, 35Q60, 35R05; Secondary: 65N21.

Citation:

Full Text(HTML)

Figure 1. Illustration of case (a) in the proof of Theorem 2.3.(ⅱ).

Download: Full-size image PowerPoint slide

Figure 2. Profile of a conductivity distribution $\gamma$ which does not satisfy the assumption $\sup({{\kappa _ - }})<\inf(\gamma_0)$

Download: Full-size image PowerPoint slide

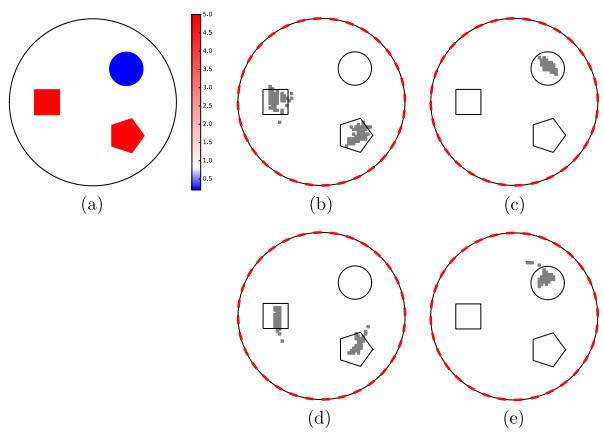

Figure 3. (a) Two dimensional numerical phantom with positive part ${{D_ + }}$ (square and pentagon) and negative part ${{D_ - }}$ (ball). (b) Reconstruction of ${{D_ + }}$ from noiseless datum with $\alpha_0 = 6.56\times 10^{-4}$. (c) Reconstruction of ${{D_ - }}$ from noiseless datum with $\alpha_0 = 2.36\times 10^{-3}$. (d) Reconstruction of ${{D_ + }}$ with $0.5\%$ noise and $\alpha_0 = 5.00\times 10^{-3}$. (e) Reconstruction of ${{D_ - }}$ with $0.5\%$ noise and $\alpha_0 = 2.30\times 10^{-3}$

Download: Full-size image PowerPoint slide

Figure 4. (a) Two dimensional numerical phantom with positive part ${{D_ + }}$ (wedge) and negative part ${{D_ - }}$ (ball). (b) Reconstruction of ${{D_ + }}$ from noiseless datum with $\alpha_0 = 9.00\times 10^{-4}$. (c) Reconstruction of ${{D_ - }}$ from noiseless datum with $\alpha_0 = 6.72\times 10^{-4}$. (d) Reconstruction of ${{D_ + }}$ with $0.5\%$ noise and $\alpha_0 = 4.20\times 10^{-3}$. (e) Reconstruction of ${{D_ - }}$ with $0.5\%$ noise and $\alpha_0 = 3.26\times 10^{-3}$

Download: Full-size image PowerPoint slide

Figure 5. (a) Three dimensional numerical phantom with positive part ${{D_ + }}$ (ball) and negative part ${{D_ - }}$ (L-shape). (b) Reconstruction of ${{D_ + }}$ from noiseless datum with $\alpha_0 = 7.50\times 10^{-5}$. (c) Reconstruction of ${{D_ - }}$ from noiseless datum with $\alpha_0 = 2.90\times 10^{-4}$. (d) Reconstruction of ${{D_ + }}$ with $0.5\%$ noise and $\alpha_0 = 2.40\times 10^{-4}$. (e) Reconstruction of ${{D_ - }}$ with $0.5\%$ noise and $\alpha_0 = 2.50\times 10^{-4}$

Download: Full-size image PowerPoint slide

Figure 6. For $k = 8$, $16$, and $32$ electrodes of size $\pi/k$, upper bounds of reconstructions of ${{D_ + }}$ are shown, using regularization parameter $\alpha_0 = 0$. ${{D_ + }}$ is the ball outlined on the right side of the domain and ${{D_ - }}$ is on the left

Download: Full-size image PowerPoint slide

Figure 7. For $k = 4, 5, \dots, 64$ electrodes of size $\pi/k$, the distance $d_k$ from $\partial\Omega$ to upper bounds of reconstructions of ${{D_ + }}$ is plotted (cf. Figure 6). $h = 2\pi/k$ is the corresponding maximal extended electrode diameter from [20] and [9,Theorems 2 and 3]
