An augmented lagrangian method for solving a new variational model based on gradients similarity measures and high order regulariation for multimodality registration

Anis Theljani; Ke Chen

doi:10.3934/ipi.2019016

Article Contents

2019, Volume 13, Issue 2: 309-335. Doi: 10.3934/ipi.2019016

This issue Previous Article Incorporating structural prior information and sparsity into EIT using parallel level sets Next Article Propagation of boundary-induced discontinuity in stationary radiative transfer and its application to the optical tomography

An augmented lagrangian method for solving a new variational model based on gradients similarity measures and high order regulariation for multimodality registration

Anis Theljani and
Ke Chen^,

Department of Mathematical Sciences and EPSRC Liverpool Centre for Mathematics in Healthcare, The University of Liverpool, Liverpool L69 7ZL, UK

^* Corresponding author: Ke Chen http://www.liverpool.ac.uk/~cmchenke
^* Corresponding author: Ke Chen http://www.liverpool.ac.uk/~cmchenke

Received: February 28, 2018

Revised: September 30, 2018

Published: March 2019

Both authors are supported by the UK EPSRC grant EP/N014499/1.

Abstract Full Text(HTML) Figure(12) / Table(3) Related Papers Cited by

Abstract

In this work we propose a variational model for multi-modal image registration. It minimizes a new functional based on using reformulated normalized gradients of the images as the fidelity term and higher-order derivatives as the regularizer. We first present a theoretical analysis of the proposed model. Then, to solve the model numerically, we use an augmented Lagrangian method (ALM) to reformulate it to a few more amenable subproblems (each giving rise to an Euler-Lagrange equation that is discretized by finite difference methods) and solve iteratively the main linear systems by the fast Fourier transform; a multilevel technique is employed to speed up the initialisation and avoid likely local minima of the underlying functional. Finally we show the convergence of the ALM solver and give numerical results of the new approach. Comparisons with some existing methods are presented to illustrate its effectiveness and advantages.

Keywords:

Mathematics Subject Classification: Primary: 65M32, 35Q68, 94A08; Secondary: 65M22, 35G15.

Citation:

Full Text(HTML)

Figure 1. Example of Reference and Template images where $ \nabla_n T\cdot \nabla_n R = 0 $ (or one of $ \nabla_n T, \ \nabla_n R $ is zero) a.e in $ \Omega $

Download: Full-size image PowerPoint slide

Figure 2. Three examples of the triangle inequality for triangles with sides $ X $, $ Y $ and $ Z $. The left example shows a case where $ |Z| $ is much less than the sum $ |X| +|Y| $ of the other two sides, and the right example shows a case where $ |Z| $ is only slightly less than $ |X| +|Y| $

Download: Full-size image PowerPoint slide

Figure 3. Example of a multilevel representation of images

Download: Full-size image PowerPoint slide

Figure 4. Example 1: Comparison of three different models. Clearly only Our Model works while NGF, MI fail completely

Download: Full-size image PowerPoint slide

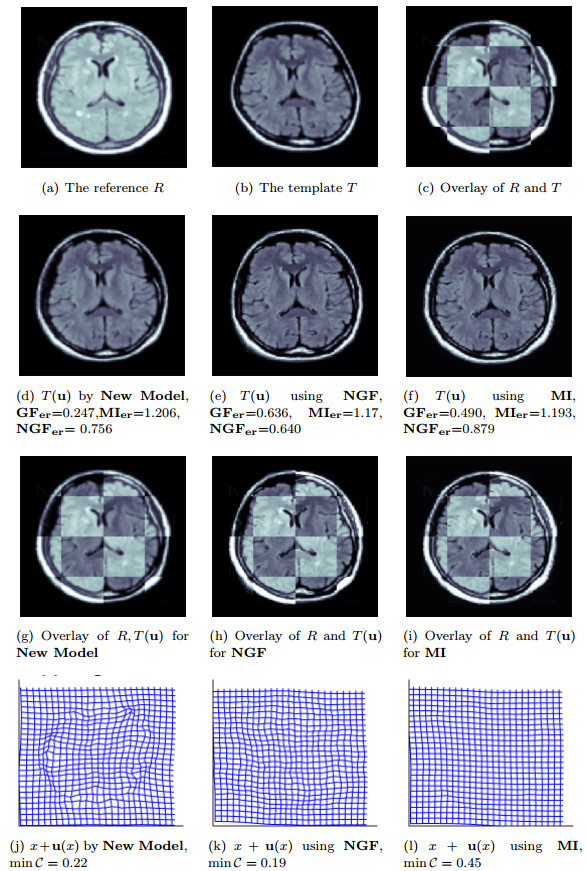

Figure 5. Example 2: Comparison of different models to register T-1 and T2-MRI images. New Model performs the best

Download: Full-size image PowerPoint slide

Figure 6. Example 3: Registration of a second pair of MRI images (T1 and T2). New Model performs the best

Download: Full-size image PowerPoint slide

Figure 7. Comparison of $ 3 $ different models to register the MRI images fin Fig. 6. Example 3 zoomed in the red squares (see Fig. 6): From left to right; Zooms in the reference $ R $ and the registered $ T(\mathbf u) $ using New model, NGF and MI, respectively.

Download: Full-size image PowerPoint slide

Figure 8. Example 4: High-b- and Low-b-value Diffusion-weighted MRIs (of $ 256\times 256 $) using different models. New Model performs the best

Download: Full-size image PowerPoint slide

Figure 9. Example 5: a pair of MRI images of higher resolution $ 512\times 512 $ by $ 3 $ different models. New Model and MI perform identically, both better than NGF

Download: Full-size image PowerPoint slide

Figure 10. Left: Log scale plot of the residual errors for $ \mathbf u $ versus ALM iteration numbers for examples 2-5. Right: Plot of the error $ S_{er} $ values versus ALM iteration numbers for examples 2-5

Download: Full-size image PowerPoint slide

Figure 11. Left: Log scale plot of the distance D_m versus ALM iteration numbers for examples 2-5

Download: Full-size image PowerPoint slide

Figure 12. Example 6: Registering a PET image to an MRI vimage. New model performs better than others in this example

Download: Full-size image PowerPoint slide

Table 1. Run time comparison for all models for the pair of MRI images in Fig. 6

	Resolution
	$64 \times 64$	$128 \times 128$	$256 \times 256$	$512 \times 512$
Time (s) for New Model	29.836	49.931	117.342	272.578
Time (s) for MI Model	14.794	21.437	48.881	76.398
Time (s) for NGF Model	22.003	42.845	100.961	264.388

| Show Table

DownLoad: CSV

Table 2. Registration results of the different models for processing Examples 1-6. The errors are computed using formula (38), (40) and (39). Here, #N is the ratio of the number of pixels where $\nabla_n T\cdot \nabla_n R \neq 0$ over the total number of pixels, whereas #G is the ratio of number pixels where GF(T, R)+TM(T, R) ≠ 0 over the total number of pixels.

Compared Models			NGF			New Model
	#G	#N	GF_er	NGF_er	MI_er	GF_er	NGF_er	MI_er
Ex 1	0.2%	.02%	0.540	0.964	0.446	0.032	0.932	0.993
Ex 2	49%	24%	0.636	0.640	1.170	0.247	0.756	1.206
Ex 3	49%	23%	0.336	0.491	1.265	0.238	0.389	1.290
Ex 4	49%	20%	0.901	0.856	1.150	0.674	0.800	1.184
Ex 5	43%	37%	0.741	0.656	1.163	0.454	0.623	1.178
Ex 6	48%	23%	0.952	0.957	1.187	0.801	0.920	1.341

Compared Models			MI
	#G	#N	GF_er	NGF_er	MI_er	Note:
Ex 1	0.2%	.02%	0.370	0.97	0.381	for GF_er and NGF_er, the smaller the better.
Ex 2	49%	24%	0.490	0.879	1.193	for GF_er and NGF_er, the smaller the better.
Ex 3	49%	23%	0.463	0.579	1.265	But for MI_er, The larger the better.
Ex 4	49%	20%	0.765	0.849	1.154
Ex 5	43%	37%	0.454	0.631	1.163
Ex 6	48%	23%	0.836	0.970	1.254

| Show Table

DownLoad: CSV

Table 3. Registration results for $ \frac{\alpha_1}{\lambda} $-dependence tests of New Model for processing Example 3. The relative errors are computed using the normalized gradient fitting formula (38). In all cases, we set $ \alpha = 0.01\alpha_1 $

$\frac{\alpha_1}{\lambda}$	0.1	0.05	0.025	0.017	0.0125	0.01	0.0075	0.005
Error	0.238	0.237	0.237	0.236	0.237	0.237	0.238	0.24

| Show Table

DownLoad: CSV
