A parallel domain decomposition algorithm for large scale image denoising

Rongliang Chen; Jizu Huang; Xiao-Chuan Cai

doi:10.3934/ipi.2019055

Article Contents

2019, Volume 13, Issue 6: 1259-1282. Doi: 10.3934/ipi.2019055

This issue Previous Article Stability for determination of Riemannian metrics by spectral data and Dirichlet-to-Neumann map limited on arbitrary subboundary Next Article Microlocal analysis of Doppler synthetic aperture radar

A parallel domain decomposition algorithm for large scale image denoising

1.
Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences, Shenzhen, Guangdong 518055, China
2.
LSEC, ICMSEC, Academy of Mathematics and Systems Science, Chinese Academy of Sciences, Beijing 100190, China
3.
Department of Computer Science, University of Colorado Boulder, Boulder, CO 80309, USA

^* Corresponding author: Xiao-Chuan Cai
^* Corresponding author: Xiao-Chuan Cai

Received: September 30, 2018

Revised: June 30, 2019

Published: October 2019

Abstract Full Text(HTML) Figure(9) / Table(8) Related Papers Cited by

Abstract

Total variation denoising (TVD) is an effective technique for image denoising, in particular, for recovering blocky, discontinuous images from noisy background. The problem is formulated as an optimization problem in the space of bounded variation functions, and the solution is obtained by solving the associated Euler–Lagrange equation defined on the domain occupied by the entire image. The method offers high quality results, but is computationally expensive for large images, especially for three-dimensional problems. In this paper, we introduce a highly parallel version of the algorithm which formulates the problem as multiple overlapping, but independent, optimization problems, and each is defined on a portion of the image domain. This approach is similar to the overlapping Schwarz type domain decomposition method, but is non-iterative, for solving partial differential equations, and is highly scalable, without using any coarse grids, for parallel computers with a large number of processors. We show by a theory and also by some two- and three-dimensional numerical experiments that the new approach has similar numerical accuracy as the classical TVD approach, but is much more efficient on parallel computers.

Keywords:

Mathematics Subject Classification: 65N55, 65Y05, 68U10.

Citation:

Full Text(HTML)

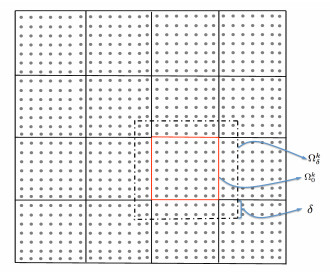

Figure 1. An example of the domain partition. Here dots are image pixels and the image domain is partitioned into $ 16 $ subdomains. The domain with solid red lines is an example of a nonoverlapping subdomain $ \Omega_0^k $ and the corresponding overlapping subdomain $ \Omega_{\delta}^k $ is marked with dashed black lines. The overlapping size $ \delta $ is the distance between the boundaries of $ \Omega_0^k $ and $ \Omega_{\delta}^k $

Download: Full-size image PowerPoint slide

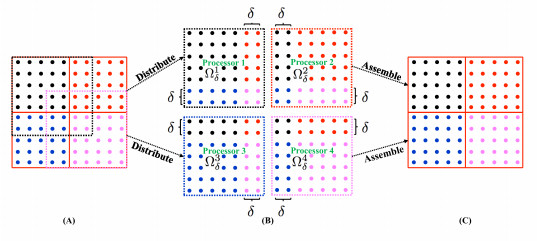

Figure 2. Procedure of NiOS. Step 1: Overlapping domain decomposition (A); Step 2: Distribute overlapping subdomain problems to 4 processors and solve these four overlapping sub-problems (B); Step 3: Combine images from non-overlapping subdomains (C). Here the points with different colors are the image pixels distributed to different processor cores

Download: Full-size image PowerPoint slide

Figure 3. The boat-$ 1024\times1024 $ image denoising results. From left to right: the original image, the noise image with $ \delta^2 = 0.04 $, and the restored image by NiOS. Here $ \alpha = 0.18 $, $ \beta = 10^{-4} $, and the PSNR of the restored image is $ 27.5444 $

Download: Full-size image PowerPoint slide

Figure 4. A comparison of the results obtained by NiOS and NKS. The first row: the clean image (left), the noisy image with $ \sigma^2 = 0.04 $ (right); second row: the local zoom-in of the figures in the first row; third row: the restored images obtained by NiOS (left) and NKS (right); fourth row: the local zoom-in of the figures in the third row. The PSNR of the restored image with NiOS and NKS are $ 28.536962 $ and $ 28.536417 $, respectively

Download: Full-size image PowerPoint slide

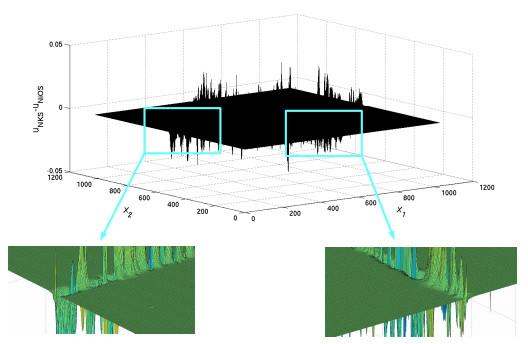

Figure 5. The surface plot of the error between NiOS and NKS: $ u_{\mbox{NKS}} - u_{\mbox{NiOS}} $. Here the image size is $ 1024 \hspace{-0.02in}\times\hspace{-0.02in} 1024 $, $ \alpha = 0.18 $, $ \beta = 1.0\times10^{-4} $. The overlapping size is $ 4 $ and the number of processors is $ 4 $

Download: Full-size image PowerPoint slide

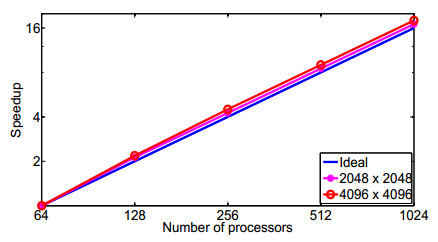

Figure 6. The speedup of the NiOS algorithm for the 2D cameraman image denoising problem

Download: Full-size image PowerPoint slide

Figure 7. A noisy image (left) and an example of the partition of the image into 8 sub-images (right)

Download: Full-size image PowerPoint slide

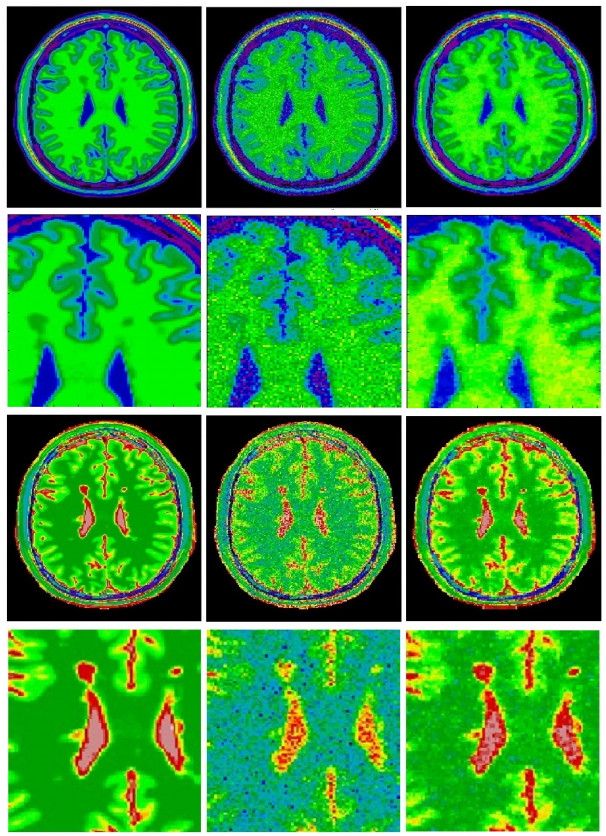

Figure 8. Slice 100 of the 3D MR images. From left to right, the first row: the original T1-w image, the T1-w image with a Racian noise at $ 9\% $ and the restored image; second row: the detailed partial images of the first row images; third row: the original T2-w images, the T2-w image with a Racian noise at $ 9\% $, and the restored image. The last row: the detailed partial images of the third row images

Download: Full-size image PowerPoint slide

Figure 9. The 3D reconstruction of the MR image. From left to right: Top: the clean image, the image with $ 9\% $ Racian noise, and the restored image; Bottom: the corresponding zoomined images

Download: Full-size image PowerPoint slide

Table 1. The comparison of NiOS and NKS. Here $ \beta = 1.0\times10^{-4} $, $ \alpha = 0.18 $, the overlapping size for NiOS is $ 4 $. "Sp" refers to the compute time speedup of the NiOS method compared with the NKS method, which is defined as the time of NKS divides the time of NiOS

$ n_p $	cameraman-$ 2048\times2048 $					cameraman-$ 4096\times4096 $
	NKS		NiOS		Sp	NKS		NiOS		Sp
	Newton	Time	Newton	Time	Sp	Newton	Time	Newton	Time	Sp
32	24	9.8	22	5.0	2.0	30	50.0	26	23.4	2.1
64	27	6.2	21	2.8	2.2	37	35.6	23	12.6	2.8
128	25	3.0	20	1.2	2.5	38	17.9	23	6.5	2.8
256	25	1.7	19	0.6	2.8	33	8.7	21	2.9	3.0
512	24	0.9	19	0.4	2.3	38	5.3	20	1.4	3.8
1024	23	1.2	19	0.3	4.0	38	3.6	20	0.8	4.5

| Show Table

DownLoad: CSV

Table 2. The error of the NiOS method with respect to the parameters $ \alpha $ and $ \beta $. Here ERROR is the relative error $ ||u_{\mbox{NiOS}} - u_{\mbox{NKS}}||_2/||u_{\mbox{true}}||_2 $, $ u_{\mbox{NiOS}} $, $ u_{\mbox{NKS}} $, and $ u_{\mbox{true}} $ are the solution of NiOS, NKS, and the clean image, respectively

$ \beta $	$ \alpha $	boat-$ 1024\times1024 $				cameraman-$ 2048 \times2048 $
$ \beta $	$ \alpha $	Newton	GMRES	ERROR	PSNR	Newton	GMRES	ERROR	PSNR
$ 10^{-1} $	0.01	2	1	$ 2.1\times10^{-7} $	15.1	2	1	$ 4.4\times10^{-9} $	15.4
$ 10^{-1} $	0.05	3	1	$ 1.4\times10^{-5} $	17.4	3	1	$ 2.9\times10^{-7} $	17.6
$ 10^{-1} $	0.1	3	2	$ 6.3\times10^{-5} $	19.5	3	2	$ 7.1\times10^{-6} $	19.7
$ 10^{-1} $	0.15	4	2	$ 1.3\times10^{-4} $	21.1	4	2	$ 1.6\times10^{-5} $	21.2
$ 10^{-1} $	0.2	4	2	$ 2.0\times10^{-4} $	22.3	4	2	$ 3.6\times10^{-5} $	22.4
$ 10^{-1} $	0.25	6	2	$ 2.7\times10^{-4} $	23.2	12	3	$ 6.1\times10^{-5} $	23.2
$ 10^{-2} $	0.01	2	1	$ 9.3\times10^{-7} $	15.6	2	1	$ 7.5\times10^{-7} $	15.6
$ 10^{-2} $	0.05	4	2	$ 5.7\times10^{-5} $	18.8	4	2	$ 3.7\times10^{-6} $	19.0
$ 10^{-2} $	0.1	5	2	$ 2.3\times10^{-4} $	22.3	5	2	$ 4.5\times10^{-5} $	22.4
$ 10^{-2} $	0.15	6	2	$ 4.3\times10^{-4} $	24.5	6	2	$ 1.4\times10^{-4} $	24.6
$ 10^{-2} $	0.2	8	3	$ 6.3\times10^{-4} $	25.7	7	3	$ 2.6\times10^{-4} $	25.8
$ 10^{-2} $	0.25	10	3	$ 8.1\times10^{-4} $	26.4	8	3	$ 3.8\times10^{-4} $	26.6
$ 10^{-3} $	0.01	3	1	$ 2.2\times10^{-6} $	15.4	3	1	$ 1.3\times10^{-7} $	15.7
$ 10^{-3} $	0.05	9	2	$ 1.3\times10^{-4} $	19.3	10	2	$ 1.9\times10^{-5} $	19.6
$ 10^{-3} $	0.1	8	3	$ 4.8\times10^{-4} $	23.9	8	3	$ 1.8\times10^{-4} $	24.2
$ 10^{-3} $	0.15	10	3	$ 8.7\times10^{-4} $	26.6	12	3	$ 5.0\times10^{-4} $	26.9
$ 10^{-3} $	0.2	20	4	$ 1.2\times10^{-3} $	27.4	12	4	$ 8.3\times10^{-4} $	28.0
$ 10^{-3} $	0.25	17	4	$ 1.5\times10^{-3} $	27.3	14	4	$ 1.1\times10^{-3} $	28.4
$ 10^{-4} $	0.01	9	1	$ 3.2\times10^{-6} $	15.4	5	2	$ 5.4\times10^{-7} $	15.7
$ 10^{-4} $	0.05	16	3	$ 1.9\times10^{-4} $	19.4	14	3	$ 5.1\times10^{-5} $	19.7
$ 10^{-4} $	0.1	21	4	$ 7.1\times10^{-4} $	24.5	20	3	$ 4.1\times10^{-4} $	24.7
$ 10^{-4} $	0.15	19	5	$ 1.3\times10^{-3} $	27.3	19	5	$ 1.0\times10^{-3} $	27.9
$ 10^{-4} $	0.2	22	7	$ 1.7\times10^{-3} $	27.5	21	6	$ 1.6\times10^{-3} $	28.7
$ 10^{-4} $	0.25	21	15	$ 2.0\times10^{-1} $	27.6	24	8	$ 2.1\times10^{-3} $	28.7

| Show Table

DownLoad: CSV

Table 3. The error of the NiOS method with respect to the parameters $ \alpha $ and $ \beta $ changed proportionally, for example, when $ \alpha $ is reduced by $ \frac{1}{2} $, $ \beta $ is reduced by $ (\frac{1}{2})^4 $. "ERROR" has the same definition as in Table 2

$ \beta $	$ \alpha $	boat-$ 1024\times1024 $				cameraman-$ 2048 \times2048 $
$ \beta $	$ \alpha $	Newton	GMRES	ERROR	PSNR	Newton	GMRES	ERROR	PSNR
$ 6.25\times10^{-3} $	0.1	8	2	$ 2.8\times10^{-4} $	22.7	6	2	$ 6.4\times10^{-5} $	22.9
$ 3.9\times10^{-4} $	0.05	11	2	$ 1.6\times10^{-4} $	19.3	11	2	$ 3.0\times10^{-5} $	19.7
$ 2.4\times10^{-5} $	0.025	14	2	$ 4.1\times10^{-5} $	16.8	12	2	$ 6.8\times10^{-6} $	17.1
$ 1.5\times10^{-6} $	0.0125	17	2	$ 7.6\times10^{-6} $	15.6	10	2	$ 1.1\times10^{-6} $	15.9

| Show Table

DownLoad: CSV

Table 4. Parallel performance of the NiOS algorithm for the 2D cameraman image denoising

$ n_p $	$ 2048\times2048 $			$ 4096 \times4096 $
$ n_p $	Newton	GMRES	Time(s)	Newton	GMRES	Time(s)
64	21	4	1.7	23	4	7.2
128	20	4	0.8	22	4	3.3
256	20	4	0.4	21	4	1.6
512	19	4	0.2	20	4	0.8
1024	18	4	0.1	20	4	0.4

| Show Table

DownLoad: CSV

Table 5. The detail of the sub-problem solving in NiOS with 24 processors. Image size is $ 2048\times2048 $. Here "rank" is the processor core ID

rank	Newton	GMRES	Time	rank	Newton	GMRES	Time
0	11	5	7.3	12	17	5	9.1
1	11	5	7.3	13	14	5	8.4
2	17	5	9.2	14	10	5	6.4
3	19	5	9.8	15	8	5	5.2
4	12	5	7.2	16	14	5	8.0
5	12	5	7.3	17	14	5	8.3
6	12	5	7.3	18	16	5	8.8
7	12	5	7.6	19	16	5	8.8
8	16	5	8.8	20	13	5	7.6
9	17	5	9.0	21	13	5	7.5
10	11	5	6.8	22	16	5	8.5
11	12	5	7.3	23	16	5	6.6

| Show Table

DownLoad: CSV

Table 6. Comparison of the NiOS and NKS for the 3D image denoising. The image size is $ 181\times217\times181 $. "Sp" refers to the compute time speedup of the NiOS method compared with the NKS method

$ n_p $	NKS			NiOS			Sp
$ n_p $	Newton	GMRES	Time(s)	Newton	GMRES	Time(s)	Sp
32	35	17	38.5	35	12	22.0	1.8
64	36	17	24.5	31	11	12.4	2.0
128	36	18	12.0	29	10	5.0	2.4
256	36	18	6.6	26	9	3.3	2.0
512	39	18	3.9	24	8	1.4	2.8
1024	35	19	2.4	22	8	0.7	3.4

| Show Table

DownLoad: CSV

Table 7. The effect of various choices of the overlapping parameter $ \delta $ in the NiOS method for the 3D image. The number of processors is $ 64 $ and the image size is $ 181\times217\times181 $. The PSNR of the NKS method is $ 27.84 $ for this image denoising. Here $ \text{DIFF} = || \mathbf{u}_{\text{NiOS}} - \mathbf{u}_{\text{NKS}}||_2 $ is the difference of the solution of NiOS ($ \mathbf{u}_{\text{NiOS}} $) and NKS ($ \mathbf{u}_{\text{NKS}} $)

$ \delta $	Newton	GMRES	Time (s)	PSNR	DIFF
0	14	5	2.7	27.83	5.89
1	14	5	2.8	27.85	1.20
2	14	5	3.1	27.84	0.36
3	14	5	3.4	27.84	0.07

| Show Table

DownLoad: CSV

Table 8. Parallel performance of the NiOS-NKS algorithm for the 3D image denosing. The image size is $ 217\times217\times181 $

$ n_p $	First Stage			Second Stage
$ n_p $	Newton	GMRES	Time	Newton	GMRES	Time
32	15	5	4.48	3	7	2.39
64	14	5	3.5	3	7	1.41
128	15	5	1.71	3	7	0.77
256	14	5	1.11	3	7	0.47
512	14	5	0.45	3	7	0.36
1024	14	5	0.26	3	8	0.42

| Show Table

DownLoad: CSV
