On numerical aspects of parameter identification for the Landau-Lifshitz-Gilbert equation in Magnetic Particle Imaging

Tram Thi Ngoc Nguyen; Anne Wald

doi:10.3934/ipi.2021042

Article Contents

2022, Volume 16, Issue 1: 89-117. Doi: 10.3934/ipi.2021042

This issue Previous Article A mathematical approach towards THz tomography for non-destructive imaging Next Article A mathematical perspective on radar interferometry

On numerical aspects of parameter identification for the Landau-Lifshitz-Gilbert equation in Magnetic Particle Imaging

Tram Thi Ngoc Nguyen^1, , and
Anne Wald^2,

1.
Institute of Mathematics and Scientific Computing, University of Graz, Heinrichstraße 36, A-8010 Graz, Austria
2.
Institute of Numerical and Applied Mathematics, University of Göttingen, Lotzestraße 16-18, 37073 Göttingen, Germany

^* Corresponding author: Tram Thi Ngoc Nguyen
^* Corresponding author: Tram Thi Ngoc Nguyen

Received: December 31, 2020

Revised: March 31, 2021

Early access: May 2021

Published: February 2022

Abstract Full Text(HTML) Figure(20) / Table(3) Related Papers Cited by

Abstract

The Landau-Lifshitz-Gilbert equation yields a mathematical model to describe the evolution of the magnetization of a magnetic material, particularly in response to an external applied magnetic field. It allows one to take into account various physical effects, such as the exchange within the magnetic material itself. In particular, the Landau-Lifshitz-Gilbert equation encodes relaxation effects, i.e., it describes the time-delayed alignment of the magnetization field with an external magnetic field. These relaxation effects are an important aspect in magnetic particle imaging, particularly in the calibration process. In this article, we address the data-driven modeling of the system function in magnetic particle imaging, where the Landau-Lifshitz-Gilbert equation serves as the basic tool to include relaxation effects in the model. We formulate the respective parameter identification problem both in the all-at-once and the reduced setting, present reconstruction algorithms that yield a regularized solution and discuss numerical experiments. Apart from that, we propose a practical numerical solver to the nonlinear Landau-Lifshitz-Gilbert equation, not via the classical finite element method, but through solving only linear PDEs in an inverse problem framework.

Keywords:

Mathematics Subject Classification: Primary: 35R30, 65M32, 65N21.

Citation:

Full Text(HTML)

Figure 1. Matrix representation for a vector field in the all-at-once setting

Download: Full-size image PowerPoint slide

Figure 2. Matrix representation for a vector field in the reduced setting

Download: Full-size image PowerPoint slide

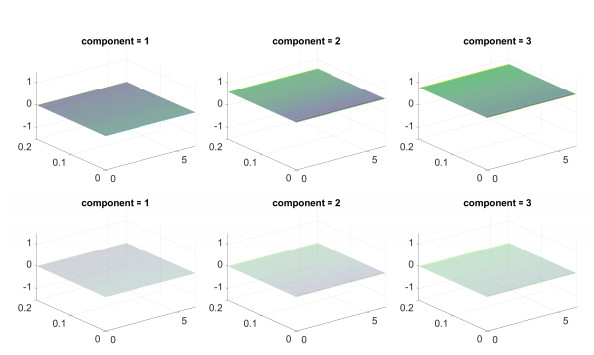

Figure 3. Test 1. Reconstructed $ {{\bf{m}}} $ (top) and $ {{\bf{m}}}-{{\bf{m}}}_{\rm{exact}} $ (bottom) plotted against space (x-axis) and time (y-axis)

Download: Full-size image PowerPoint slide

Figure 4. Test 1. Plots of step size $ \mu $ (left) and relative error $ \frac{\|{\textbf{m}}_k-{\textbf{m}}_\rm{ex}\|}{\|{\textbf{m}}_\rm{ex}\|} $ (right) over iteration index

Download: Full-size image PowerPoint slide

Figure 5. Test 2. Reconstructed $ {{\bf{m}}} $ (top) and $ {{\bf{m}}}-{{\bf{m}}}_{\rm{exact}} $ (bottom). Left to right: each component

Download: Full-size image PowerPoint slide

Figure 6. Test 2. Plots of step size $ \mu $ (left) and relative error $ \frac{\|{\textbf{m}}_k-{\textbf{m}}_\rm{ex}\|}{\|{\textbf{m}}_\rm{ex}\|} $ (right) over iteration index

Download: Full-size image PowerPoint slide

Figure 7. Test 3. Reconstructed $ {{\bf{m}}} $ (top) and $ {{\bf{m}}}-{{\bf{m}}}_{\rm{exact}} $ (bottom) plotted against space (x-axis) and time (y-axis)

Download: Full-size image PowerPoint slide

Figure 8. Test 3. Plots of step size $ \mu $ (left) and relative error $ \frac{\|{\textbf{m}}_k-{\textbf{m}}_\rm{ex}\|}{\|{\textbf{m}}_\rm{ex}\|} $ (right) over iteration index

Download: Full-size image PowerPoint slide

Figure 9. Left: applied field $ {\textbf{h}} $. Middle: initial state $ \widetilde{{\textbf{m}}}_0 $. Right: trajectory of $ \widetilde{{\textbf{m}}}(t) $

Download: Full-size image PowerPoint slide

Figure 10. Magnetization $ \widetilde{{\textbf{m}}} $ at different time instances

Download: Full-size image PowerPoint slide

Figure 11. Test 2, all-at-once setting. Reconstructed $ {{\bf{m}}} $ (top) and $ {{\bf{m}}}-{{\bf{m}}}_{\text{exact}} $ (bottom) plotted against space (x-axis) and time (y-axis)

Download: Full-size image PowerPoint slide

Figure 12. Test 2, reduced setting. Reconstructed $ {{\bf{m}}} $ (top) and $ {{\bf{m}}}-{{\bf{m}}}_{\text{exact}} $ (bottom) plotted against space (x-axis) and time (y-axis)

Download: Full-size image PowerPoint slide

Figure 13. Test 2, all-at-once setting: reconstructed parameter over iteration index (left) and zoom of first 250 iterations (right)

Download: Full-size image PowerPoint slide

Figure 14. Test 2, reduced setting: reconstructed parameter (left) and number of internal loops (right) in each Landweber iteration

Download: Full-size image PowerPoint slide

Figure 15. Test 2, residual over iteration index: reduced setting (left), first 250 iterations for the all-at-once setting (middle), and a zoom of the all-at-once residual plot (right)

Download: Full-size image PowerPoint slide

Figure 16. Test 3, 3% noise, all-at-once setting. Reconstructed $ {{\bf{m}}} $ (top) and $ {{\bf{m}}}-{{\bf{m}}}_{\rm{exact}} $ (bottom) plotted against space (x-axis) and time (y-axis)

Download: Full-size image PowerPoint slide

Figure 17. Test 3, 3% noise, reduced setting. Reconstructed $ {{\bf{m}}} $ (top) and $ {{\bf{m}}}-{{\bf{m}}}_{\text{exact}} $ (bottom) plotted against space (x-axis) and time (y-axis)

Download: Full-size image PowerPoint slide

Figure 18. Test 3, 3% noise, reconstructed parameter over iteration index. Left: all-at-once setting. Right: reduced setting

Download: Full-size image PowerPoint slide

Figure 19. Test 3, 3% noise, reduced setting: number of internal loops in each Landweber iteration

Download: Full-size image PowerPoint slide

Figure 20. Test 3, 3% noise, residual over iteration index. Left: all-at-once setting. Right: reduced setting

Download: Full-size image PowerPoint slide

Table 1. Test cases and run parameters

Test	1	2	3
$ {\hat{\alpha}}_1 $	1	2	1
$ {\hat{\alpha}}_2 $	-1	0	0
$ {{\bf{h}}} $	$ \cfrac{2}{5}(0,3,4) $	$ -(\cos(x),\cos(x),0) $	(0, 0, 0)
$ {{\bf{m}}}_{\rm{exact}} $	$ \cfrac{1}{5}(0,3,4) $	$ (\cos(x),\cos(x),e^t) $	$ (\sin(x),\cos(x),e^t) $
$ {\textbf{m}}_0 $	$ \cfrac{1}{5}(0,3,4) $	$ (\cos(x),\cos(x),1) $	$ (\sin(x),\cos(x),1) $
$ \hat{{{\bf{m}}}}_{exact} $	(0, 0, 0)	(0, 0, $ e^t-1 $)	(0, 0, $ e^t-1 $)
Initial guess $ {\hat{{\bf{m}}}} $	$ -5t(1,1,1) $	$ -5t\cos(x)(1,1,1) $	$ -\cfrac{\sin(30t)}{5}(1,1,1) $
Step size $ \mu $	150	75	300
# iterations	3050	5350	680

| Show Table

DownLoad: CSV

Table 2. Common physical parameters

Parameter		Value	Unit
Magnetic permeability	$ \mu_0 $	4$ \pi\times 10^{-7} $	H $ \rm{m}^{-1} $
Sat. magnetization	$ m_{\mathrm{S}} $	474 000	J $ \rm{m}^{-3} \rm{T}^{-1} $
Gyromagnetic ratio	$ \gamma $	1.75$ \times 10^{11} $	rad $ \rm{s}^{-1} $
Damping parameter	$ \alpha_\rm{D} $	0.1
Field of view	$ \Omega $	[-0.006, 0.006]	m
Max observation time	T	0.03$ \times 10^{-3} $	s
External field strength	$ \|{\textbf{h}}\| $	$ 10^{-4} $	T

| Show Table

DownLoad: CSV

Table 3. Reconstruction with noisy data

	All-at-once					Reduced
$ \delta $	#it	$ r_{llg} $	$ r_{obs} $	$ e_{\alpha_1} $	$ e_{\alpha_2} $	#it	$ r_{llg} $	$ r_{obs} $	$ e_{\alpha_1} $	$ e_{\alpha_2} $
10%	259	0.0022	0.0619	0.292	0.090	49	$ 3\times10^{-6} $	0.0703	0.030	0.034
5%	401	0.0011	0.0309	0.125	0.072	49	$ 3\times10^{-6} $	0.0321	0.040	0.033
3%	564	0.0007	0.0186	0.040	0.062	49	$ 3\times10^{-6} $	0.0200	0.044	0.033

| Show Table

DownLoad: CSV
