Cost of fairness in agent scheduling for contact centers

Onur Şimşek; O. Erhun Kundakcioglu

doi:10.3934/jimo.2021001

Article Contents

2022, Volume 18, Issue 2: 872-896. Doi: 10.3934/jimo.2021001

This issue Previous Article Coordinating a supply chain with demand information updating Next Article A model and two heuristic methods for The Multi-Product Inventory-Location-Routing Problem with heterogeneous fleet

Cost of fairness in agent scheduling for contact centers

Onur Şimşek and
O. Erhun Kundakcioglu^,

Department of Industrial Engineering, Ozyegin University, Istanbul, 34794, Turkey

^* Corresponding author: erhun.kundakcioglu@ozyegin.edu.tr
^* Corresponding author: erhun.kundakcioglu@ozyegin.edu.tr

Received: November 30, 2019

Revised: September 30, 2020

Early access: December 2020

Published: March 2022

Abstract Full Text(HTML) Figure(9) / Table(19) Related Papers Cited by

Abstract

We study a workforce scheduling problem faced in contact centers with considerations on a fair distribution of shifts in compliance with agent preferences. We develop a mathematical model that aims to minimize operating costs associated with labor, transportation of agents, and lost customers. Aside from typical work hour-related constraints, we also try to conform with agents' preferences for shifts, as a measure of fairness. We plot the trade-off between agent satisfaction and total operating costs for Vestel, one of Turkey's largest consumer electronics companies. We present insights on the increased cost to have content and a fair environment on several agent availability scenarios.

Keywords:

Mathematics Subject Classification: Primary: 90B90; Secondary: 90-10.

Citation:

FullText(HTML)

Figure 1. Forecasted Intraday Call Volumes

Download: Full-size image PowerPoint slide

Figure 2. Required and Working Agents

Download: Full-size image PowerPoint slide

Figure 3. Demand Volumes

Download: Full-size image PowerPoint slide

Figure 4. Preference Scores

Download: Full-size image PowerPoint slide

Figure 5. Distribution of Agents in Shifts

Download: Full-size image PowerPoint slide

Figure 6. Cost and Fairness Values for P1

Download: Full-size image PowerPoint slide

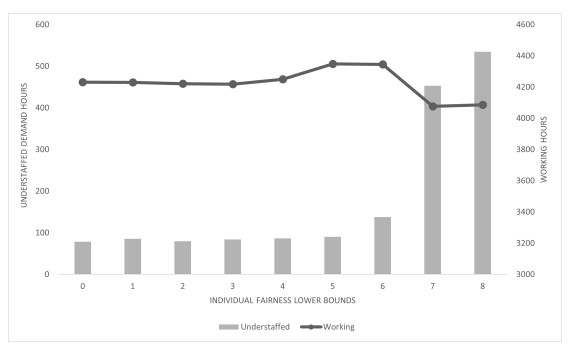

Figure 7. Total Understaffed and Working Hours for P1

Download: Full-size image PowerPoint slide

Figure 8. Cost and Fairness Values for P2

Download: Full-size image PowerPoint slide

Figure 9. Total Understaffed and Working Hours for P2

Download: Full-size image PowerPoint slide

Table 1. Model Inputs and Outputs

Inputs	Outputs
Demand for a Theoretical Day
Scheduling/Planning Horizon	Number of Agents in Each Shift
Time Intervals and Possible Shifts	Total Employee Cost
Break Time Distribution Rules	Total Shuttle Cost
Shuttle (Transportation) Costs	Understaffed Hours
Agent Wages and Undesirability Cost of Shifts	Agent-Shift Assignments
Cost of Understaffing	Total Satisfaction Score
Shift Preference Scores of Agents	Fairness Score Distribution
Fairness Bounds

| Show Table

DownLoad: CSV

Table 2. Inputs and a Sample Assignment

| Show Table

DownLoad: CSV

Table 3. Break Time (Effectiveness) Factor

| Show Table

DownLoad: CSV

Table 4. Preference Scoring Sample

$ \textbf{Preference Priority} $	Preference Score
First	8
Second	4
Third	2
Fourth	1
Not preferred	0

| Show Table

DownLoad: CSV

Table 5. Preference Matrix Sample

$ \textbf{agents} $	shift 1	shift 2	shift 3	shift 4	shift 5	shift 6	shift 7	shift 8
agent 1	8	4	0	0	1	0	0	2
agent 2	8	4	0	0	0	0	2	1
agent 3	4	8	0	2	0	0	0	1
agent 4	4	2	0	1	0	0	8	0
agent 5	4	2	0	1	0	8	0	0
agent 6	2	1	8	4	0	0	0	0
agent 7	1	2	0	4	8	0	0	0
agent 8	0	0	1	2	4	0	0	8
agent 9	0	8	0	4	2	0	0	1

| Show Table

DownLoad: CSV

Table 6. Model Parameters

Description	Parameter
Week Index in Planning Horizon	$ w $
Shift Index	$ s $
Time Interval Index in a Day	$ t $
Agent Index	$ i $
Individual Fairness Lower Limit	$ h $
Overall Fairness Lower Limit	$ H $
Weekly Cost Per Agent	$ c^\text{agent} $
Cost Estimation for 1% of Understaffing	$ c^{\text{understaff}} $
Cost of Shift Undesirability	$ c^{\text{undesirable}}_s $
Average Per Person Arrival Shuttle Cost for Intervals	$ c^{\text{v}}_t $
Average Per Person Departure Shuttle Cost for Intervals	$ c'^{\text{v}}_t $
Break Time Factor (Effectiveness) of Agent in Intervals of Shift	$ a^s_t $
Demand in Intervals of Weeks	$ d^w_t $
Agents' Preference Value of Shifts	$ p_{is} $
Starting Interval Binary of Shifts	$ s_t^s $
Ending Interval Binary of Shifts	$ e_t^s $

| Show Table

DownLoad: CSV

Table 7. Decision Variables

Description	Notation
Binary Variable of Agents' Shift in Weeks	$ Y_{isw} $
Individual Average Fairness Score Auxiliary Variable of Working Weeks	$ A_{iw} $
Individual Average Weekly Fairness Score Variable	$ Z_i $
Number of Agents Variable in Shifts of Weeks	$ X^w_s $
Understaffed Level Variable in Intervals	$ U^w_t $

| Show Table

DownLoad: CSV

Table 8. Shift Descriptions

| Show Table

DownLoad: CSV

Table 9. Shuttle Costs

| Show Table

DownLoad: CSV

Table 10. Parameter Values

Description	Parameter	Value
Number of Weeks	$ \|W\| $	4
Number of Shifts	$ \|S\| $	17
Number of Time Intervals	$ \|T\| $	24
Number of Agent	$ \|I\| $	150
Agent Cost	$ c^{\text{agent}} $	＄200
Understaffing Coeffcient	$ c^{\text{understaff}} $	＄10

| Show Table

DownLoad: CSV

Table 11. Fairness Distribution

$ Z_i $ Range/$ h $	0	1	2	3	4	5	6	7	8
[0-1)	83	0	0	0	0	0	0	0	0
[1-2)	19	62	0	0	0	0	0	0	0
[2-3)	35	68	120	0	0	0	0	0	0
[3-4)	8	9	14	89	0	0	0	0	0
[4-5)	3	8	12	61	130	0	0	0	0
[5-6)	0	1	3	0	14	81	0	0	0
[6-7)	0	2	1	0	6	68	149	0	0
[7-8)	0	0	0	0	0	0	1	77	0
[8]	2	0	0	0	0	1	0	73	150
Total Satisfaction Score	178	289	370	519	640	824	904	1123	1200
Cost (in ＄1000)	139	139	139	139	140	143	157	522	618

| Show Table

DownLoad: CSV

Table 12. Comparison of P1 and P2

Overall Fairness Score	640	824	904	1123
P1 Cost (＄1000)	140	143	157	522
P2 Cost (＄1000)	139	139	141	304
(P1 Cost - P2 Cost) / P2 Cost	0.7%	2.3%	10.9%	71.5%

| Show Table

DownLoad: CSV

Table 13. Fairness Distribution for P2

$ Z_i $ Range/$ H $	640	824	904	1123
[0-1)	23	16	17	0
[1-2)	10	7	6	2
[2-3)	25	9	7	3
[3-4)	5	4	2	0
[4-5)	19	17	7	11
[5-6)	11	6	3	0
[6-7)	17	20	12	1
[7-8)	2	5	12	0
[8]	38	66	84	133
Cost (in ＄1000)	139	139	141	304

| Show Table

DownLoad: CSV

Table 14. Available Shifts for Agent Groups

Shifts	Unrestricted	Pregnant	Disabled	Student	Distant
1	$ \bullet $	$ \bullet $	$ \bullet $		$ \bullet $
2	$ \bullet $		$ \bullet $		$ \bullet $
3	$ \bullet $	$ \bullet $	$ \bullet $
4	$ \bullet $
5	$ \bullet $		$ \bullet $
6	$ \bullet $
7	$ \bullet $
8	$ \bullet $
9	$ \bullet $
10	$ \bullet $
11	$ \bullet $
12	$ \bullet $
13	$ \bullet $
14	$ \bullet $
15	$ \bullet $			$ \bullet $
16	$ \bullet $			$ \bullet $	$ \bullet $
17	$ \bullet $			$ \bullet $	$ \bullet $

| Show Table

DownLoad: CSV

Table 15. Number of Agents in Groups

Scenario	Unrestricted	Pregnant	Disabled	Student	Distant
high restriction	30	20	20	20	60
med. restriction	90	10	10	10	30
low restriction	120	5	5	5	15
no restriction	150	0	0	0	0

| Show Table

DownLoad: CSV

Table 16. Cost of Restriction

	no rest.	low rest.	medium rest.	high rest.
total cost (＄1000)	139	139	139	159
cost gap	-	0%	0%	14%

| Show Table

DownLoad: CSV

Table 17. Cost of Fairness Levels with Restriction in ＄1000

	no rest.	low rest.	med. rest.	high rest.
h=4	140	140	140	193
h=5	143	144	155	224
h=6	157	160	176	243

| Show Table

DownLoad: CSV

Table 18. Efficient Solutions for Fairness Levels with Restriction

Cost	Acceptable	Solution 1	Solution 2
Tolerance	Cost (＄1000)
0%	139	h=0\|medium rest. scenario	N/A
1%	140	h=4\|medium rest. scenario
2%	141
3%	143		h=5\|no rest. scenario
4%	144
5%	146
10%	153
15%	160	h=5\|medium rest. scenario	h=6\|low rest. scenario

| Show Table

DownLoad: CSV

Table 19. Solution Times for Instances

Restrictions	Preferences	Bound $ h $ for P1 $ H $ for P2	Time (sec)
None	Individual – P1	0	3
		1	7
		2	17
		3	1257
		4	117
		5	126
		6	49
		7	14
		8	5
	Overall – P2	640	12
		824	18
		904	16
		1123	10
Low	Individual – P1	0	5
		4	20
		5	30
		6	20
Medium		0	3
		4	12
		5	14
		6	9
High		0	2
		4	7
		5	9
		6	6

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	H. P. Benson, An outer approximation algorithm for generating all efficient extreme points in the outcome set of a multiple objective linear programming problem, Journal of Global Optimization, 13 (1998), 1-24. doi: 10.1023/A:1008215702611.
[2]	I. Blöchliger, Modeling staff scheduling problems. A tutorial, European Journal of Operational Research, 158 (2004), 533-542. doi: 10.1016/S0377-2217(03)00387-4.
[3]	P. Brucker, R. Qu and E. Burke, Personnel scheduling: Models and complexity, European Journal of Operational Research, 210 (2011), 467-473. doi: 10.1016/j.ejor.2010.11.017.
[4]	I. Castillo, T. Joro and Y. Y. Li, Workforce scheduling with multiple objectives, European Journal of Operational Research, 196 (2009), 162-170. doi: 10.1016/j.ejor.2008.02.038.
[5]	D. Creelman, Top trends in workforce management: How technology provides significant value managing your people (2014), http://audentia-gestion.fr/oracle/workforce-management-2706797.pdf, 2014.
[6]	A. T. Ernst, H. Jiang, M. Krishnamoorthy and D. Sier, Staff scheduling and rostering: A review of applications, methods and models, European Journal of Operational Research, 153 (2004), 3-27. doi: 10.1016/S0377-2217(03)00095-X.
[7]	R. Fink and J. Gillett, Queuing theory and the Taguchi loss function: The cost of customer dissatisfaction in waiting lines, International Journal of Strategic Cost Management, 17–25.
[8]	D. Fluss, Workforce management: Better but not good enough, https://www.destinationcrm.com/Articles/Columns-Departments/Scouting-Report/Workforce-Management-Better-but-Not-Good-Enough-90113.aspx, 2013.
[9]	L. Golden, Irregular work scheduling and its consequences, Economic Policy Institute Briefing Paper, 1, No. 394, 41 pp. doi: 10.2139/ssrn.2597172.
[10]	Gurobi, Gurobi Optimizer 8 Reference Manual, Gurobi Optimization, Inc., 2020.
[11]	ICMI, The State of Workforce Management, Technical report, International Customer Management Institute, 2017.
[12]	S. Jütte, D. Müller and U. W. Thonemann, Optimizing railway crew schedules with fairness preferences, Journal of Scheduling, 20 (2017), 43-55. doi: 10.1007/s10951-016-0499-4.
[13]	L. Kletzander and N. Musliu, Solving the general employee scheduling problem, Computers & Operations Research, 113 (2020), 104794, 13 pp. doi: 10.1016/j.cor.2019.104794.
[14]	G. Koole and A. Mandelbaum, Queueing models of call centers: An introduction, Annals of Operations Research, 113 (2002), 41-59. doi: 10.1023/A:1020949626017.
[15]	C. K. Y. Lin, K. F. Lai and S. L. Hung, Development of a workforce management system for a customer hotline service, Computers & Operations Research, 27 (2000), 987-1004. doi: 10.1016/S0305-0548(99)00072-6.
[16]	M. Liu, X. Liu, F. Chu, E. Zhang and C. Chu, Service-oriented robust worker scheduling with motivation effects, International Journal of Production Research, 1–24. doi: 10.1080/00207543.2020.1730998.
[17]	J. Lywood, M. Stone and Y. Ekinci, Customer experience and profitability: An application of the empathy rating index (ERIC) in UK call centres, Journal of Database Marketing & Customer Strategy Management, 16 (2009), 207-214. doi: 10.1057/dbm.2009.24.
[18]	J. Manyika, S. Lund, M. Chui, J. Bughin, J. Woetzel, P. Batra, R. Ko and S. Sanghvi, Jobs lost, jobs gained: Workforce transitions in a time of automation, McKinsey Global Institute.
[19]	S. Mohan, Scheduling part-time personnel with availability restrictions and preferences to maximize employee satisfaction, Mathematical and Computer Modelling, 48 (2008), 1806-1813. doi: 10.1016/j.mcm.2007.12.027.
[20]	E. L. Örmeci, F. S. Salman and E. Yücel, Staff rostering in call centers providing employee transportation, Omega, 43 (2014), 41-53. doi: 10.1016/j.omega.2013.06.003.
[21]	R. Pastor and J. Olivella, Selecting and adapting weekly work schedules with working time accounts: A case of a retail clothing chain, European Journal of Operational Research, 184 (2008), 1-12. doi: 10.1016/j.ejor.2006.10.028.
[22]	M. Rocha, J. F. Oliveira and M. A. Carravilla, Cyclic staff scheduling: optimization models for some real-life problems, Journal of Scheduling, 16 (2013), 231-242. doi: 10.1007/s10951-012-0299-4.
[23]	R. K. Roy, Design of Experiments Using the Taguchi Approach: 16 Steps to Product and Process Improvement, John Wiley & Sons, 2001.
[24]	R. Schalk and A. Van Rijckevorsel, Factors influencing absenteeism and intention to leave in a call centre, New Technology, Work and Employment, 22 (2007), 260-274. doi: 10.1111/j.1468-005X.2007.00198.x.
[25]	G. Smart, What contributes to the cost of a contact center?, https://www.niceincontact.com/blog/what-contributes-to-the-cost-of-a-contact-center-1, 2010.
[26]	J. Van den Bergh, J. Beliën, P. De Bruecker, E. Demeulemeester and L. De Boeck, Personnel scheduling: A literature review, European Journal of Operational Research, 226 (2013), 367-385. doi: 10.1016/j.ejor.2012.11.029.
[27]	M. Van Den Eeckhout, M. Vanhoucke and B. Maenhout, A decomposed branch-and-price procedure for integrating demand planning in personnel staffing problems, European Journal of Operational Research, 280 (2020), 845-859. doi: 10.1016/j.ejor.2019.07.069.
[28]	Vestel, Towards New Horizons: 2019 Annual Report, http://www.vestelinvestorrelations.com/en/financials/annual-reports.aspx, 2019.
[29]	WorkForceSoftware, New Survey: The 6 Most Critical Workforce Management Issues of 2017, https://www.workforcesoftware.com/blog/6-workforce-management-issues-2017/, 2017.
[30]	P. D. Wright and S. Mahar, Centralized nurse scheduling to simultaneously improve schedule cost and nurse satisfaction, Omega, 41 (2013), 1042-1052. doi: 10.1016/j.omega.2012.08.004.
