Stereo visual odometry based on dynamic and static features division

Hui Xu; Guangbin Cai; Xiaogang Yang; Erliang Yao; Xiaofeng Li

doi:10.3934/jimo.2021059

Article Contents

2022, Volume 18, Issue 3: 2109-2128. Doi: 10.3934/jimo.2021059

This issue Previous Article New Z-eigenvalue localization sets for tensors with applications Next Article Optimal pricing and ordering policy for defective items under temporary price reduction with inspection errors and price sensitive demand

Stereo visual odometry based on dynamic and static features division

College of Missile Engineering, Rocket Force University of Engineering, Xi'an, Shaanxi 710025, China

^* Corresponding author: Guangbin Cai
^* Corresponding author: Guangbin Cai

Received: May 31, 2020

Revised: November 30, 2020

Published: May 2022

The first author is mainly supported by NSSF of China under Grant (No. 61773387)

Abstract Full Text(HTML) Figure(16) / Table(2) Related Papers Cited by

Abstract

Accurate camera pose estimation in dynamic scenes is an important challenge for visual simultaneous localization and mapping, and it is critical to reduce the effects of moving objects on pose estimation. To tackle this problem, a robust visual odometry approach in dynamic scenes is proposed, which can precisely distinguish between dynamic and static features. The key to the proposed method is combining the scene flow and the static features relative spatial distance invariance principle. Moreover, a new threshold is proposed to distinguish dynamic features.Then the dynamic features are eliminated after matching with the virtual map points. In addition, a new similarity calculation function is proposed to improve the performance of loop-closure detection. Finally, the camera pose is optimized after obtaining a closed loop. Experiments have been conducted on TUM datasets and actual scenes, which shows that the proposed method reduces tracking errors significantly and estimates the camera pose precisely in dynamic scenes.

Keywords:

Visual odometry,
loop-closure detection,
dynamic scenes,
scene flow,
static features relative spatial distance invariance principle,
virtual map points.

Mathematics Subject Classification: Primary: 65D19, 65D18; Secondary: 68U10.

Citation:

FullText(HTML)

Figure 1. Stereo camera model

Download: Full-size image PowerPoint slide

Figure 2. Generation of a visual vocabulary tree

Download: Full-size image PowerPoint slide

Figure 3. Overview of the proposed algorithm in dynamic scenes

Download: Full-size image PowerPoint slide

Figure 4. Classification of the scene flow based on angles [26]

Download: Full-size image PowerPoint slide

Figure 5. Invariance of the relative spatial distance of the static points

Download: Full-size image PowerPoint slide

Figure 6. Construction of the virtual map points

Download: Full-size image PowerPoint slide

Figure 7. Three static features selected by the algorithm

Download: Full-size image PowerPoint slide

Figure 8. Dynamic features obtained by the algorithm

Download: Full-size image PowerPoint slide

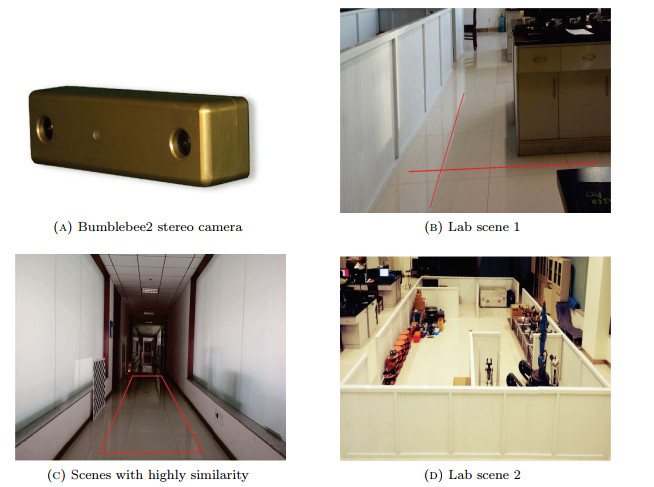

Figure 9. Experiment scene sets

Download: Full-size image PowerPoint slide

Figure 10. Experimental results of ORB-VO in lab scenes

Download: Full-size image PowerPoint slide

Figure 11. Experimental results of the proposed method in lab scenes

Download: Full-size image PowerPoint slide

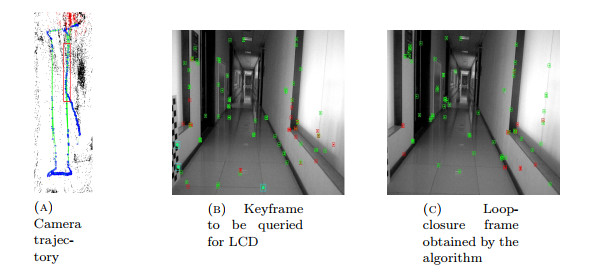

Figure 12. Loop-closure detection result of the inverse proportional function

Download: Full-size image PowerPoint slide

Figure 13. Loop-closure detection result of the negative exponential power function

Download: Full-size image PowerPoint slide

Figure 14. Loop-closure detection result of the negative exponential power function

Download: Full-size image PowerPoint slide

Figure 15. Comparisons between estimated trajectories and the ground truth in walking sequences

Download: Full-size image PowerPoint slide

Figure 16. Comparisons between estimated trajectories and the ground truth in sitting sequences

Download: Full-size image PowerPoint slide

Table 1. Translation drift and rotational drift of VO method on TUM dataset

Sequences	RMSE of translational drift [m/s]				RMSE of rotational drift [$ ^{\circ} $/s]
Sequences	DVO	BaMVO	SPW-VO	Our Method	DVO	BaMVO	SPW-VO	Our Method
sitting-static	0.0157	0.0248	0.0231	0.0112	0.6084	0.6977	0.7228	0.3356
sitting-xyz	0.0453	0.0482	0.0219	0.0132	1.4980	1.3885	0.8466	0.5753
sitting-rpy	0.1735	0.1872	0.0843	0.0280	6.0164	5.9834	5.6258	0.6811
sitting-halfsphere	0.1005	0.0589	0.0389	0.0151	4.6490	2.8804	1.8836	0.6103
walking-static	0.3818	0.1339	0.0327	0.0293	6.3502	2.0833	0.8085	0.5500
walking-xyz	0.4360	0.2326	0.0651	0.1034	7.6669	4.3911	1.6442	2.3273
walking-rpy	0.4038	0.3584	0.2252	0.2143	7.0662	6.3898	5.6902	3.9555
walking-halfsphere	0.2628	0.1738	0.0527	0.1061	5.2179	4.2863	2.4048	2.2983

| Show Table

DownLoad: CSV

Table 2. RMSE of the ATE of camera pose estimation (m$ ^{-1} $)

Sequences	ORB-SLAM2	MR-SLAM	SPW-SLAM	SF-SLAM	Our Method
sitting-static	0.0082	–	–	0.0081	0.0073
sitting-xyz	0.0094	0.0482	0.0397	0.0101	0.0090
sitting-rpy	0.0197	–	–	0.0180	0.0162
sitting-halfsphere	0.0211	0.0470	0.0432	0.0239	0.0164
walking-static	0.1028	0.0656	0.0261	0.0120	0.0108
walking-xyz	0.4278	0.0932	0.0601	0.2251	0.0884
walking-rpy	0.7407	0.1333	0.1791	0.1961	0.3620
walking-halfsphere	0.4939	0.1252	0.0489	0.0423	0.0411

| Show Table

DownLoad: CSV
