An online-decision algorithm for the multi-period bank clearing problem

Zongwei Chen

doi:10.3934/jimo.2021091

Article Contents

2022, Volume 18, Issue 4: 2783-2803. Doi: 10.3934/jimo.2021091

This issue Previous Article The combined impacts of consumer green preference and fairness concern on the decision of three-party supply chain Next Article Collaborative mission optimization for ship rapid search by multiple heterogeneous remote sensing satellites

An online-decision algorithm for the multi-period bank clearing problem

Zongwei Chen^,

School of Information Management and Engineering, Shanghai University of Finance and Economics, Shanghai 200433, China

^* Corresponding author: Zongwei Chen, czw@163.sufe.edu.cn
^* Corresponding author: Zongwei Chen, czw@163.sufe.edu.cn

Received: January 31, 2021

Revised: February 28, 2021

Published: July 2022

Abstract Full Text(HTML) Figure(7) / Table(6) Related Papers Cited by

Abstract

The bank clearing problem (BCP) refers to the problem of designing an optimal clearing algorithm for the interbank payment system. Due to the way in which for the payment system has evolved, the classical BCP model is insufficient for addressing this problem accurately. In particular, delayed settlements are allowed in the now popular high-frequency deferred net settlement (DNS) system. In practice, the characteristics of incoming payment instructions are heavily connected to the time of day, and can be predicted with reasonable precision based on historical data. In this paper, we study the multi-period bank clearing problem (MBCP) by introducing the time dimension and considering future instructions in the decision-making process. We design a new clearing algorithm for MBCP using a model predictive control (MPC) policy, which uses historical data to predict payment instructions in the future. We benchmark the designed algorithm's performance with the classical greedy algorithm on the basis of BCP. Given that the liquidity is regular or relatively low, the numerical results indicate that the designed algorithm significantly improves the quality of clearing decision-making and is robust with respect to forecasting errors and fluctuation of future transactions.

Correction: Instances of “sanitized data from CNAPS” have been corrected to “simulated data of CNAPS”. We apologize for any inconvenience this may cause.

Keywords:

Mathematics Subject Classification: Primary: 93-10.

Citation:

Full Text(HTML)

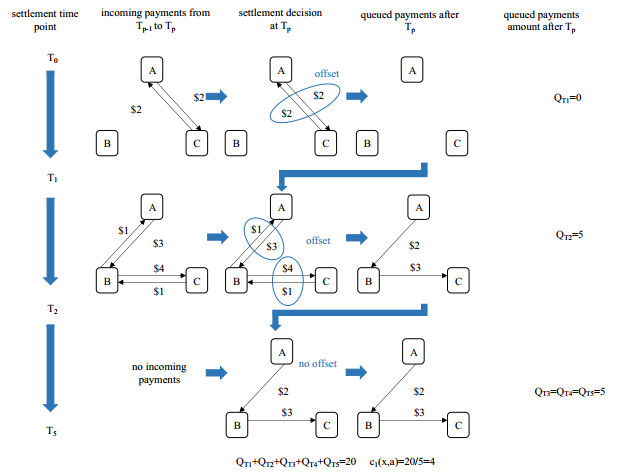

Figure 1. Results of the greedy policy

Download: Full-size image PowerPoint slide

Figure 2. Results of a clearing policy considering future payments

Download: Full-size image PowerPoint slide

Figure 3. Aggregated settlement interval

Download: Full-size image PowerPoint slide

Figure 4. The empirical cumulative distribution function of $ \eta(x) $ with different reference periods $ (P) $

Download: Full-size image PowerPoint slide

Figure 5. Performance under the three policies during a working day

Download: Full-size image PowerPoint slide

Figure 6. Comparing Different Policies

Download: Full-size image PowerPoint slide

Figure 7. The empirical cumulative distribution function of $ \eta $$ (x) $ with different interval lengths

Download: Full-size image PowerPoint slide

Table 1. Data sample

Sending Bank ID	Receiving Bank ID	Payment Amount	Submit Time
12	4	56000.00	Day1 9:40:06
4	11	532200.00	Day2 8:30:21
13	11	367506.68	Day3 8:30:46

| Show Table

DownLoad: CSV

Table 2. $ payment_i $ of banks (in billion CNY)

BankID	1	2	3	4	5	6	7	8	9	10
$ payment_i $	61.93	17.22	10.99	46.82	44.34	0.71	18.86	6.78	14.05	26.11
Bank ID	11	12	13	14	15	16	17	18	19	20
$ payment_i $	16.64	23.39	7.90	3.19	7.36	10.87	6.10	3.47	1.76	1.91

| Show Table

DownLoad: CSV

Table 3. Descriptive statistics of the MPC policy's $ \eta $$ (x) $ under different values of $ P $

Reference Period$ (P) $	Mean	S.D.	Upper 5%	Lower 5%
20 days	1.22	0.26	2.30	0.90
10 days	1.19	0.25	2.28	0.86
5 days	1.19	0.28	2.00	0.78
2 days	1.15	0.31	1.98	0.73
1 day	1.08	0.29	2.02	0.68

| Show Table

DownLoad: CSV

Table 4. Mean, standard deviation, and lower $ 5 $th percentile of $ \eta $$ (x) $ for different values of $ L $ and different $ R $

	$ R $	$ 20\% $	$ 10\% $	$ 8\% $	$ 6\% $	$ 4\% $	$ 2\% $
	Mean	1.35	1.33	1.34	1.23	1.17	1.16
$ L=600 $	S.D.	0.94	0.82	0.81	0.33	0.24	0.15
	Lower 5%	0.23	0.61	0.78	0.84	0.84	0.94
	Mean	1.23	1.38	1.30	1.21	1.24	1.18
$ L=300 $	S.D.	0.55	0.89	0.68	0.27	0.23	0.15
	Lower 5%	0.40	0.68	0.80	0.84	0.91	0.97
	Mean	1.24	1.31	1.31	1.23	1.21	1.21
$ L=120 $	S.D.	0.50	0.66	0.61	0.26	0.21	0.16
	Lower 5%	0.62	0.76	0.91	0.90	0.95	0.97
	Mean	1.22	1.25	1.27	1.22	1.22	1.21
$ L=60 $	S.D.	0.54	0.51	0.49	0.22	0.21	0.16
	Lower 5%	0.66	0.74	0.83	0.94	0.95	1.01
	Mean	1.23	1.29	1.25	1.22	1.21	1.23
$ L=30 $	S.D.	0.49	0.66	0.45	0.23	0.21	0.16
	Lower 5%	0.68	0.73	0.83	0.95	0.96	1.00

| Show Table

DownLoad: CSV

Table 5. Computation time (upper $ 99\% $) at different values of $ g $

	$ g=1 $	$ g=2 $	$ g=5 $	$ g=10 $	$ g=20 $	$ g=40 $
$ L $=600	0.73	0.52	0.13	0.06	0.03	0.01
$ L $=300	3.20	1.11	0.41	0.16	0.13	0.05
$ L $=120	28.68	5.95	1.38	0.89	0.42	0.39
$ L $=60	$>60.00 $	28.44	3.78	1.42	1.39	1.39
$ L $=30	$>30.00 $	$>30.00 $	14.42	3.80	1.83	1.56

| Show Table

DownLoad: CSV

Table 6. Mean, standard deviation, and lower $ 5 $th percentile of $ \eta $$ (x) $ for different values of $ L $ and $ g $ with $ R $ = $ 6\% $

		$ g=1 $	$ g=2 $	$ g=5 $	$ g=10 $	$ g=20 $	$ g=40 $
	mean	1.27	1.25	1.22	1.11	1.08	1.03
$ L $=600	S.D.	0.37	0.29	0.33	0.23	0.24	0.24
	lower 5%	0.79	0.89	0.81	0.76	0.67	0.68
	mean	1.24	1.24	1.21	1.17	1.09	1.06
$ L $=300	S.D.	0.26	0.29	0.27	0.26	0.20	0.21
	lower 5%	0.85	0.88	0.84	0.82	0.75	0.72
	mean	1.22	1.24	1.23	1.22	1.18	1.12
$ L $=120	S.D.	0.26	0.26	0.27	0.24	0.22	0.20
	lower 5%	0.91	0.93	0.89	0.92	0.88	0.81
	mean	-	1.21	1.22	1.20	1.19	1.16
$ L $=60	S.D.	-	0.25	0.23	0.21	0.21	0.19
	lower 5%	-	0.93	0.93	0.93	0.95	0.90
	mean	-	-	1.22	1.21	1.21	1.19
$ L $=30	S.D.	-	-	0.23	0.22	0.22	0.19
	lower 5%	-	-	0.96	0.89	0.91	0.94

| Show Table

DownLoad: CSV
