A mini review on UAV mission planning

Xinwei Wang; Hai Wang; Hongyun Zhang; Min Wang; Lei Wang; Kaikai Cui; Chen Lu; Yu Ding

doi:10.3934/jimo.2022089

Article Contents

2023, Volume 19, Issue 5: 3362-3382. Doi: 10.3934/jimo.2022089

This issue Previous Article The evolution of rectangular bin packing problem — A review of research topics, applications, and cited papers Next Article A bi-objective integrated mathematical model for blood supply chain: Case of Turkish red crescent

A mini review on UAV mission planning

1.
Department of Engineering Mechanics, State Key Laboratory of Structural Analysis for Industrial Equipment, Dalian University of Technology, Dalian, Liaoning 116024, China
2.
School of Mathematical Science, Dalian University of Technology, Dalian, Liaoning 116024, China
3.
No.92942 Unit of PLA, Beijing 100161, China
4.
Science and Technology on Reliability and Environmental Engineering Laboratory, Beijing 100191, China
5.
Institute of Reliability Engineering, Beihang University, Beijing 100191, China
6.
School of Reliability and Systems Engineering, Beihang University, Beijing 100191, China

^*Corresponding author: Yu Ding
^*Corresponding author: Yu Ding

Received: March 2022

Revised: April 2022

Early access: June 2022

Published: May 2023

The authors are grateful for the National Key Research and Development Plan (2020YFB1709403); the National Natural Science Foundation of China (12102077); the Fundamental Research Funds for the Central Universities (DUT20YG125, DUT22RC(3)010)

Abstract Full Text(HTML) Figure(2) / Table(2) Related Papers Cited by

Abstract

With the increasing complexity of modern air warfare, an efficient and robust mission planning, which mainly includes task assignment and path planning, becomes the key issue to improve the combat efficiency. This paper reviews recent progress in UAV mission planning. First, basic concepts of UAVs and their mission planning problem are given. And several representative existing mission planning systems are briefly introduced. The constraints and objectives in the task assignment model are reviewed, and the pros and cons of algorithms commonly used are then summarized. After that, the algorithms for path planning are reviewed. Finally, we point out current problems and future research directions. The paper provides a comprehensive review of the field and enables a quick start for those who aim to do related research.

Keywords:

Mathematics Subject Classification: Primary: 90C59, 90C27; Secondary: 90B70.

Citation:

Full Text(HTML)

Figure 1. Three typical UAV swarm architectures: centralized architecture, distributed architecture and mixed architecture

Download: Full-size image PowerPoint slide

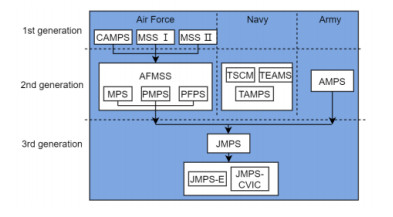

Figure 2. Development of US military mission planning systems

Download: Full-size image PowerPoint slide

Table 1. Contents in existing review papers on UAV mission planning

References	Task assignment	Path planning	Re-planning	Models	Algorithm	Analysis of Algorithms	Problem analysis
Zhao	$ \surd $	$ \surd $	$ \surd $	$ \times $	$ \surd $	$ \times $	$ \surd $
Guo	$ \surd $	$ \times $	$ \times $	$ \surd $	$ \surd $	$ \surd $	$ \surd $
Du	$ \times $	$ \surd $	$ \times $	$ \surd $	$ \surd $	$ \times $	$ \times $
Debnath	$ \times $	$ \surd $	$ \times $	$ \surd $	$ \surd $	$ \times $	$ \surd $
Aggarwal	$ \surd $	$ \surd $	$ \surd $	$ \surd $	$ \surd $	$ \surd $	$ \surd $
Jia	$ \surd $	$ \surd $	$ \times $	$ \surd $	$ \surd $	$ \times $	$ \surd $
Pang	$ \surd $	$ \surd $	$ \times $	$ \surd $	$ \surd $	$ \surd $	$ \surd $
Zhang	$ \surd $	$ \times $	$ \times $	$ \times $	$ \surd $	$ \times $	$ \surd $
