On the classical limit of a time-dependent self-consistent field system: Analysis and computation

Shi Jin; Christof Sparber; Zhennan Zhou

doi:10.3934/krm.2017011

Article Contents

2017, Volume 10, Issue 1: 263-298. Doi: 10.3934/krm.2017011

This issue Previous Article A kinetic equation for economic value estimation with irrationality and herding Next Article On interfaces between cell populations with different mobilities

On the classical limit of a time-dependent self-consistent field system: Analysis and computation

1.
Department of Mathematics, University of Wisconsin-Madison, 480 Lincoln Drive, Madison, WI 53706, USA
2.
Department of Mathematics, Institute of Natural Sciences and MOE Key Lab in Scientific, and Engineering Computing, Shanghai Jiao Tong University, 800 Dong Chuan Road, Shanghai, 200240, China
3.
Department of Mathematics, Statistics, and Computer Science, M/C 249, University of Illinois at Chicago, 851 S. Morgan Street, Chicago, IL 60607, USA
4.
Department of Mathematics, Duke University, Box 90320, Durham NC 27708, USA

Received: September 30, 2015

Revised: December 31, 2015

Published: September 2017

This work was partially supported by NSF grants DMS-1522184 and DMS-1107291: NSF Research Network in Mathematical Sciences KI-Net: Kinetic description of emerging challenges in multiscale problems of natural sciences. C.S. acknowledges support by the NSF through grant numbers DMS-1161580 and DMS-1348092.

Abstract Full Text(HTML) Figure(11) Related Papers Cited by

Abstract

We consider a coupled system of Schrödinger equations, arising in quantum mechanics via the so-called time-dependent self-consistent field method. Using Wigner transformation techniques we study the corresponding classical limit dynamics in two cases. In the first case, the classical limit is only taken in one of the two equations, leading to a mixed quantum-classical model which is closely connected to the well-known Ehrenfest method in molecular dynamics. In the second case, the classical limit of the full system is rigorously established, resulting in a system of coupled Vlasov-type equations. In the second part of our work, we provide a numerical study of the coupled semi-classically scaled Schrödinger equations and of the mixed quantum-classical model obtained via Ehrenfest's method. A second order (in time) method is introduced for each case. We show that the proposed methods allow time steps independent of the semi-classical parameter(s) while still capturing the correct behavior of physical observables. It also becomes clear that the order of accuracy of our methods can be improved in a straightforward way.

Keywords:

Mathematics Subject Classification: 35Q41, 35B40, 65M70, 35Q83.

Citation:

Full Text(HTML)

Figure 1. The diagram of semi-classical limits: the iterated limit and the classical limit

Download: Full-size image PowerPoint slide

Figure 2. Reference solution: $\Delta x=\Delta y= \frac{2\pi}{32768}$ and $\Delta t=\frac{0.4}{4096}$. Upper picture: fix $\Delta y= \frac{2\pi}{32768}$ and $\Delta t=\frac{0.4}{4096}$, take $\Delta x=\frac{2\pi}{16384}$, $\frac{2\pi}{8192}$, $\frac{2\pi}{4096}$, $\frac{2\pi}{2048}$, $\frac{2\pi}{1024}$, $\frac{2\pi}{512}$, $\frac{2\pi}{256}$, $\frac{2\pi}{128}$, $\frac{2\pi}{64}$, $\frac{2\pi}{32}$, $\frac{2\pi}{16}$, $\frac{2\pi}{8}$. Lower Picture: fix $\Delta x= \frac{2\pi}{32768}$ and $\Delta t=\frac{0.4}{4096}$, take $\Delta y=\frac{2\pi}{16384}$, $\frac{2\pi}{8192}$, $\frac{2\pi}{4096}$, $\frac{2\pi}{2048}$, $\frac{2\pi}{1024}$, $\frac{2\pi}{512}$, $\frac{2\pi}{256}$, $\frac{2\pi}{128}$, $\frac{2\pi}{64}$, $\frac{2\pi}{32}$, $\frac{2\pi}{16}$, $\frac{2\pi}{8}$. These results show that, when $\delta=O(1)$ and $\varepsilon \ll 1$, the meshing strategy $\Delta x= O(\delta)$ and $\Delta y=O(\varepsilon )$ is sufficient for obtaining spectral accuracy.

Download: Full-size image PowerPoint slide

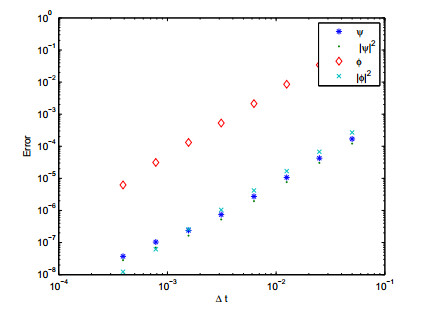

Figure 3. Reference solution: $\Delta x=\frac{2\pi}{512}$, $\Delta y= \frac{2\pi}{16348}$ and $\Delta t=\frac{0.4}{4096}$. SSP2: fix $\Delta x=\frac{2\pi}{512}$, $\Delta y= \frac{2\pi}{16348}$, take $\Delta t=\frac{0.4}{1024}$, $\frac{2\pi}{512}$, $\frac{2\pi}{256}$, $\frac{2\pi}{128}$, $\frac{2\pi}{64}$, $\frac{2\pi}{32}$, $\frac{2\pi}{16}$, $\frac{2\pi}{8}$. These results show that, when $\delta=O(1)$ and $\varepsilon \ll 1$, the SSP2 method is unconditionally stable and is second order accurate in time

Download: Full-size image PowerPoint slide

Figure 4. Fix $\Delta t=0.05$. For $\varepsilon =1/64$, $1/128$, $1/256$, $1/512$, $1/1024$, $1/2048$ and $1/{4096}$, $\Delta x=2\pi\varepsilon/16$, respectively. The reference solution is computed with the same $\Delta x$, but $\Delta t={\varepsilon }/{10}$. These results show that, $\varepsilon $-independent time steps can be taken to obtain accurate physical observables, but not accurate wave functions

Download: Full-size image PowerPoint slide

Figure 5. $\varepsilon=\frac{1}{512}$. First row: position density and current density of $\varphi^e$;

Download: Full-size image PowerPoint slide

Figure 6. $\varepsilon=\frac{1}{2048}$. First row: position density and flux density of $\varphi^e$; second row: position density and current density of $\psi^e$

Download: Full-size image PowerPoint slide

Figure 7. Fix $\Delta$ t=0.005. For $\varepsilon=\frac{1}{256}$, $\frac1{512}$, $\frac1{1024}$, $\frac1{2048}$, $\frac1{4096}$, $\Delta x=\frac{\varepsilon}{8}$, respectively. The reference solution is computed with the same $\Delta x$, but $\Delta t=\frac{0.54\varepsilon}{4}$. These results show that, $\varepsilon $-independent time steps can be taken to obtain accurate physical observables, but not accurate wave functions.

Download: Full-size image PowerPoint slide

Figure 8. Fix $\varepsilon=\frac{1}{256}$ and $\Delta t=\frac{0.4 \varepsilon}{16}$. Take $\Delta x= \frac{2\pi\varepsilon}{32}$, $\frac{2\pi\varepsilon}{16}$, $\frac{2\pi\varepsilon}{8}$, $\frac{2\pi\varepsilon}{4}$, $\frac{2\pi\varepsilon}{2}$ and $\frac{2\pi\varepsilon}{1}$ respectively. The reference solution is computed with the same $\Delta t$, but $\Delta x=\frac{2\pi\varepsilon}{64}$. These results show that, when $\delta=\varepsilon \ll 1$, the meshing strategy $\Delta x= O(\varepsilon )$ and $\Delta y=O(\varepsilon )$ is sufficient for obtaining spectral accuracy

Download: Full-size image PowerPoint slide

Figure 9. Fix $\varepsilon=\frac{1}{1024}$ and $\Delta x=\frac{2 \pi}{16}$. Take $\Delta t= \frac{0.4}{32}$, $\frac{0.4}{64}$, $\frac{0.4}{128}$, $\frac{0.4}{256}$, $\frac{0.4}{512}$ and $\frac{0.4}{1024}$, respectively. The reference solution is computed with the same $\Delta x$, but $\Delta t=\frac{0.4}{8192}$. These results show that, when $\delta=\varepsilon \ll 1$, the SSP2 method is unconditionally stable and is second order accurate in time

Download: Full-size image PowerPoint slide

Figure 10. Fix $\Delta t=\frac{0.4}{64}$. For $\delta=\frac1{256}$, $\frac1{512}$, $\frac1{1024}$, $\frac1{2048}$, $\frac1{4096}$, $\Delta x=2\pi\varepsilon/16$, respectively. The reference solution is computed with the same $\Delta x$, but $\Delta t=\frac{\delta}{10}$. These results show that, $\delta$-independent time steps can be taken to obtain accurate physical observables and classical coordinates, but not accurate wave functions

Download: Full-size image PowerPoint slide

Figure 11. Fix $\delta=\frac{1}{1024}$ and $\Delta x=\frac{2 \pi}{16}$. Take $\Delta t= \frac{0.4}{32}$, $\frac{0.4}{64}$, $\frac{0.4}{128}$, $\frac{0.4}{256}$, $\frac{0.4}{512}$ and $\frac{0.4}{1024}$, respectively. The reference solution is computed with the same $\Delta x$, but $\Delta t=\frac{0.4}{8192}$. These results show that, the SVSP2 method is unconditionally stable and is second order accurate in time

Download: Full-size image PowerPoint slide
