Dynamical analysis of a toxin-producing phytoplankton-zooplankton model with refuge

Juan Li; Yongzhong Song; Hui Wan; Huaiping Zhu

doi:10.3934/mbe.2017032

Article Contents

2017, Volume 14, Issue 2: 529-557. Doi: 10.3934/mbe.2017032

This issue Previous Article Machine learning of swimming data via wisdom of crowd and regression analysis Next Article Global stability and uniform persistence of the reaction-convection-diffusion cholera epidemic model

Dynamical analysis of a toxin-producing phytoplankton-zooplankton model with refuge

1.
Jiangsu Key Laborary for NSLSCS, Institute of Mathematics, School of Mathematics Science, Nanjing Normal University, Nanjing 210023, China
2.
Laboratory of Mathematical Parallel Systems (Lamps), Department of Mathematics and Statistics, York University, Toronto, ON, M3J 1P3, Canada

^* Corresponding author: Huaiping Zhu
^* Corresponding author: Huaiping Zhu

Received: December 17, 2015

Published: September 2016

This research was partially supported by NSFC grant (NO. 11271196) of China, China Scholarship Council (CSC), NSERC of Canada, and the NSF of the Jiangsu Higher Education Committee of China (No. 15KJD110004). The authors would like to thank the referees for their valuable comments and suggestions.

Abstract Full Text(HTML) Figure(13) / Table(1) Related Papers Cited by

Abstract

To study the impacts of toxin produced by phytoplankton and refuges provided for phytoplankton on phytoplankton-zooplankton interactions in lakes, we establish a simple phytoplankton-zooplankton system with Holling type Ⅱ response function. The existence and stability of positive equilibria are discussed. Bifurcation analyses are given by using normal form theory which reveals reasonably the mechanisms and nonlinear dynamics of the effects of toxin and refuges, including Hopf bifurcation, Bogdanov-Takens bifurcation of co-dimension 2 and 3. Numerical simulations are carried out to intuitively support our analytical results and help to explain the observed biological behaviors. Our findings finally show that both phytoplankton refuge and toxin have a significant impact on the occurring and terminating of algal blooms in freshwater lakes.

Keywords:

Mathematics Subject Classification: Primary: 92D25, 92D40; Secondary: 34A47.

Citation:

FullText(HTML)

Figure 1. Existence of the positive roots of $f(P)$ with $f(c)<0$

Download: Full-size image PowerPoint slide

Figure 2. The existence and number of equilibrium of system (8) on the plane $(\theta, m)$ for different values of $d$, where the dotted line denotes $\theta=\beta_2-d$

Download: Full-size image PowerPoint slide

Figure 3. A backward bifurcation occurs when $0<d<d_1$ and $m\in(0, m_*)$

Download: Full-size image PowerPoint slide

Figure 4. The Hopf bifurcation diagram of system (8) with $m = 8$ and $\theta$ as a bifurcation parameter

Download: Full-size image PowerPoint slide

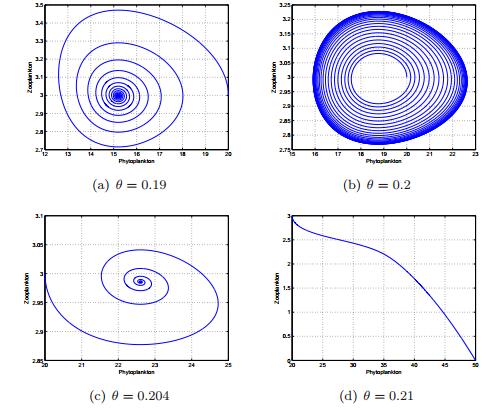

Figure 5. The variation of phytoplankton and zooplankton with the increasing time and the phase plane diagram of system (3) with $m=8$ for different $\theta$ values, where the initial value is $(20,3)$

Download: Full-size image PowerPoint slide

Figure 6. The Hopf bifurcation diagram of system (8) with $\theta=0.2$ and $m$ as a bifurcation parameter

Download: Full-size image PowerPoint slide

Figure 7. The variation of phytoplankton and zooplankton with the increasing time and the phase plane diagram of system (3) with $\theta=0.2$ for different $m$ values, where the initial value is $(20,3)$

Download: Full-size image PowerPoint slide

Figure 8. Bifurcation diagram of system (8) by choosing $m$ and $\theta$ as two parameters, where the values of $m$ and $\theta$ for $BT$ are $5.4248527$ and $0.20944969$ respectively. Note LP marked represents the limit point at which two positive equilibria collide into one positive equilibrium, and BP represents branch point at which positive equilibrium can disappears with the increase of the value of the parameter $\theta$ or$ m$

Download: Full-size image PowerPoint slide

Figure 9. The phase portraits of system (8) by perturbing $(K, m)$ in a small neighborhood of $(K^*, m^*)=(12.7759,0.6146)$

Download: Full-size image PowerPoint slide

Figure 10. The phase portraits of system (8) by taking $(K, m, \theta)=(K^*, m^*, \theta^*)=(12.7759,0.6146, 0.2681)$ and perturbing $(K, m, \theta)$ in a small neighborhood of $(K^*, m^*, \theta^*)$. The partial enlarged details of $S_1$, $S_2$ and $S_3$ marked are shown by following fig. 11-13.

Download: Full-size image PowerPoint slide

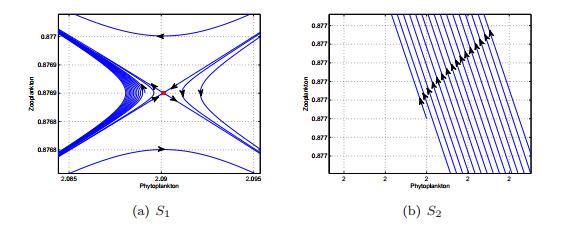

Figure 11. The local phase portraits of system (8) for $(\epsilon_1,\epsilon_2, \epsilon_3)=(0.01665, 0.0001, -0.0001)$ in Fig.10

Download: Full-size image PowerPoint slide

Figure 12. The local phase portraits of system (8) for $(\epsilon_1,\epsilon_2, \epsilon_3)=(0.322,0,-0.0001)$ in Fig. 10

Download: Full-size image PowerPoint slide

Figure 13. The local phase portraits of system (8) for $(\epsilon_1,\epsilon_2, \epsilon_3)=(0.0191099,0.000836,-0.0001)$ in Fig. 10

Download: Full-size image PowerPoint slide

Table 1. The biological interpretations of all parameters in system (3) with default values used for numerical studies

Par.	Description	Value	Unit	Reference.
$r$	Growth rate of phytoplankton	0.2	$h^{-1}$	0.07-0.28 [16]
$K$	Environmental carrying capacity	50	$l^{-1}$	108 [15]
$m$	Refuge capacity	Par.	$l^{-1}$	Defaulted
$\beta_1$	Predation rate of zooplankton	1	$h^{-1}$	0.6-1.4[16]
$\beta_2$	Growth efficiency of zooplankton	0.15	$h^{-1}$	0.2-0.5[16]
$d$	Mortality rate of zooplankton	0.003	$h^{-1}$	0.015-0.15[16]
$a_1$	Half saturation constant	3	$l^{-1}$	Defaulted
$a_2$	Half saturation constant	5.7	$l^{-1}$	5.7[15]
$\theta$	Toxin production rate	Par.	$h^{-1}$	Defaulted

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	H. Duan, R. Ma, X. Xu, F. Kong, S. Zhang, W. Kong, J. Hao and L. Shang, Two-decade reconstruction of algal blooms in China-Lake Taihu, Environ. Sci. Technol., 43 (2009), 3522-3528.
[2]	M. Wines, Spring Rain, Then Foul Algae in Ailing Lake Erie Report of The New York Times, 2013. Available from: http://www.nytimes.com/2013/03/15/science/earth/algae-blooms-threaten-lake-erie.html?&_r=0.
[3]	W. McLean and J. Macdonald, CLAS: Colby Liberal Arts Symposium, Lake Erie Algal Blooms 2014. Available from: http://digitalcommons.colby.edu/clas/2014/program/414/.
[4]	C. B. Lopez, E. B. Jewett, Q. Dortch, B. T. Walton and H. K. Hudnell, Scientific Assessment of Freshwater Harmful Algal Blooms Interagency Working Group on Harmful Algal Blooms, Hypoxia, and Human Health of the Joint Subcommittee on Ocean Science and Technology. Washington, DC. 2008. Available from: https://www.whitehouse.gov/sites/default/files/microsites/ostp/frshh2o0708.pdf.
[5]	E. Beltrami and T. O. Carroll, Modeling the role of viral disease in recurrent phytoplankton blooms, J. Math. Biol., 32 (1994), 857-863. doi: 10.1007/BF00168802.
[6]	J. Norberg and D. DeAngelis, Temperature effects on stocks and stability of a phytoplankton-zooplankton model and the dependence on light and nutrients, Ecol. Model., 95 (1997), 75-86. doi: 10.1016/S0304-3800(96)00033-6.
[7]	B. Mukhopadhyay and R. Bhattacharyya, Modelling phytoplankton allelopathy in a nutrient-plankton model with spatial heterogeneity, Ecol. Model., 198 (2006), 163-173. doi: 10.1016/j.ecolmodel.2006.04.005.
[8]	S. Pal, S. Chatterjee and J. Chattopadhyay, Role of toxin and nutrient for the occurrence and termination of plankton bloom results drawn from field observations and a mathematical model, Biosystems, 90 (2007), 87-100. doi: 10.1016/j.biosystems.2006.07.003.
[9]	T. Saha and M. Bandyopadhyay, Dynamical analysis of toxin producing phytoplankton-zooplankton interactions, Nonlinear Anal-Real., 10 (2009), 314-332. doi: 10.1016/j.nonrwa.2007.09.001.
[10]	Y. Lv, Y. Pei, S. Gao and C. Li, Harvesting of a phytoplankton-zooplankton model, Nonlinear Anal-Real., 11 (2010), 3608-3619. doi: 10.1016/j.nonrwa.2010.01.007.
[11]	M. Bengfort, U. Feudel, F. M. Hilker and H. Malchow, Plankton blooms and patchiness generated by heterogeneous physical environments, Ecol. Complex., 20 (2014), 185-194. doi: 10.1016/j.ecocom.2014.10.003.
[12]	S. Rana, S. Samanta, S. Bhattacharya, K. Al-Khaled, A. Goswami and J. Chattopadhyay, The effect of nanoparticles on plankton dynamics: A mathematical model, Biosystems, 127 (2015), 28-41. doi: 10.1016/j.biosystems.2014.11.003.
[13]	T. G. Hallam, C. E. Clark and R. R. Lassiter, Effects of toxicants on populations: A qualitative approach Ⅰ. Equilibrium environmental exposure, Ecol. Model., 18 (1983), 291-304. doi: 10.1016/0304-3800(83)90019-4.
[14]	J. T. Turner and P. A. Tester, Toxic marine phytoplankton, zooplankton grazers, and pelagic food webs, Limnol. Oceanogr., 42 (1997), 1203-1214. doi: 10.4319/lo.1997.42.5_part_2.1203.
[15]	J. Chattopadhyay, R. R. Sarkar and S. Mandal, Toxin producing plankton may act as a biological control for planktonic blooms-field study and mathematical modelling, J. Theor. Biol., 215 (2002), 333-344. doi: 10.1006/jtbi.2001.2510.
[16]	J. Chattopadhyay, R. R. Sarkar and A. El Abdllaoui, A delay differential equation model on harmful algal blooms in the presence of toxic substances, Math. Med. Biol., 19 (2002), 137-161. doi: 10.1093/imammb/19.2.137.
[17]	R. Pal, D. Basu and M. Banerjee, Modelling of phytoplankton allelopathy with Monod-Haldane-type functional response-A mathematical study, Biosystems, 95 (2009), 243-253. doi: 10.1016/j.biosystems.2008.11.002.
[18]	S. Chakraborty, S. Chatterjee, E. Venturino and J. Chattopadhyay, Recurring plankton bloom dynamics modeled via toxin-producing phytoplankton, J. Biol. Phys., 3 (2008), 271-290. doi: 10.1007/s10867-008-9066-3.
[19]	M. Banerjee and E. Venturino, A phytoplankton-toxic phytoplankton-zooplankton model, Ecol. Complex., 8 (2011), 239-248. doi: 10.1016/j.ecocom.2011.04.001.
[20]	M. M. Mullin, E. F. Stewart and F. J. Fuglister, Ingestion by planktonic grazers as a function of concentration of food1, Limnol. Oceanogr., 20 (1975), 259-262. doi: 10.4319/lo.1975.20.2.0259.
[21]	J. B. Collings, Bifurcation and stability analysis of a temperature-dependent mite predator-prey interaction model incorporating a prey refuge, B. Math. Biol., 57 (1995), 63-76.
[22]	E. González-Olivares and R. Ramos-Jiliberto, Dynamic consequences of prey refuges in a simple model system: more prey, fewer predators and enhanced stability, Ecol. Model., 166 (2003), 135-146.
[23]	L. Chen, F. Chen and L. Chen, Qualitative analysis of a predator-rey model with Holling type Ⅱ functional response incorporating a constant prey refuge, Nonlinear anal-real., 11 (2010), 246-252. doi: 10.1016/j.nonrwa.2008.10.056.
[24]	T. K. Kar, Stability analysis of a prey-predator model incorporating a prey refuge, Commun. Nonlinear. Sci., 10 (2005), 681-691. doi: 10.1016/j.cnsns.2003.08.006.
[25]	Y. Huang, F. Chen and L. Zhong, Stability analysis of a prey-predator model with Holling type Ⅲ response function incorporating a prey refuge, Appl. Math. Comput., 182 (2006), 672-683. doi: 10.1016/j.amc.2006.04.030.
[26]	D. E. Schindler and M. D. Scheuerell, Habitat coupling in lake ecosystems, Oikos, 98 (2002), 177-189. doi: 10.1034/j.1600-0706.2002.980201.x.
[27]	P. J. Wiles, L. A. van Duren, C. Häse, J. Larsen and J. H. Simpson, Stratification and mixing in the Limfjorden in relation to mussel culture, J. Marine. Syst., 60 (2006), 129-143. doi: 10.1016/j.jmarsys.2005.09.009.
[28]	K. S. Cheng, S. B. Hsu and S. S. Lin, Some results on global stability of a predator-prey system, J. Math. Biol., 12 (1981), 115-126. doi: 10.1007/BF00275207.
[29]	L. P. Liou and K. S. Cheng, Global stability of a predator-prey system, J. Math. Biol., 26 (1988), 65-71. doi: 10.1007/BF00280173.
[30]	S. B. Hsu and T. W. Huang, Global stability for a class of predator-prey systems, SIAM J, Appl. Math., 55 (1995), 763-783. doi: 10.1137/S0036139993253201.
[31]	J. F. Talling, The annual cycle of stratification and phytoplankton growth in Lake Victoria (East Africa), Int. Revue Ges. Hydrobiol., 51 (1966), 545-621. doi: 10.1002/iroh.19660510402.
[32]	V. Lakshmikantham and S. Leela, Differential and Integral Inequalities: Theory and Applications, Academic press, 1969.
[33]	G. Teschl, Ordinary Differential Equations and Dynamical Systems Am. Math. Soc., 2012. doi: 10.1090/gsm/140.
[34]	H. K. Khalil and J. W. Grizzle, Nonlinear Systems Upper Saddle River: Prentice hall, 2000.
[35]	P. Lawrence, Differential Equations and Dynamical Systems, Springer-Verlag, New York, 1991. doi: 10.1007/978-1-4684-0392-3.
[36]	Y. A. Kuznetsov, Elements of Applied Bifurcation Theory, Spring-Verlag, New York, 1995. doi: 10.1007/978-1-4757-2421-9.
