Mathematical modeling of continuous and intermittent androgen suppression for the treatment of advanced prostate cancer

Alacia M. Voth; John G. Alford; Edward W. Swim

doi:10.3934/mbe.2017043

Article Contents

2017, Volume 14, Issue 3: 777-804. Doi: 10.3934/mbe.2017043

This issue Previous Article Effects of selection and mutation on epidemiology of X-linked genetic diseases Next Article A note on the global properties of an age-structured viral dynamic model with multiple target cell populations

Mathematical modeling of continuous and intermittent androgen suppression for the treatment of advanced prostate cancer

1.
United Services Automobile Association, 9800 Fredericksburg Rd, San Antonio, TX 78288, USA
2.
Sam Houston State University, Department of Mathematics and Statistics, Huntsville, TX 77341, USA

* Corresponding author: edward.swim@shsu.edu
* Corresponding author: edward.swim@shsu.edu

Received: August 03, 2016

Published: September 2017

Abstract Full Text(HTML) Figure(18) / Table(3) Related Papers Cited by

Abstract

Prostate cancer is one of the most prevalent types of cancer among men. It is stimulated by the androgens, or male sexual hormones, which circulate in the blood and diffuse into the tissue where they stimulate the prostate tumor to grow. One of the most important treatments for advanced prostate cancer has become androgen deprivation therapy (ADT). In this paper we present three different models of ADT for prostate cancer: continuous androgen suppression (CAS), intermittent androgen suppression (IAS), and periodic androgen suppression. Currently, many patients in the U.S. receive CAS therapy of ADT, but many undergo a relapse after several years and experience adverse side effects while receiving treatment. Some clinical studies have introduced various IAS regimens in order to delay the time to relapse, and/or to reduce the economic costs and adverse side effects. We will compute and analyze parameter sensitivity analysis for CAS and IAS which may give insight to plan effective data collection in a future clinical trial. Moreover, a periodic model for IAS is used to develop an analytical formulation for relapse times which then provides information about the sensitivity of relapse to the parameters in our models.

Keywords:

Mathematics Subject Classification: Primary: 92C50, 93A30; Secondary: 34C60.

Citation:

FullText(HTML)

Figure 1. Solutions for all three compartments in the CAS model are presented. Baseline values for all parameters are used, as shown in Table 1.

Download: Full-size image PowerPoint slide

Figure 2. CAS sensitivity of androgen concentration, s_γ^a, with respect to the concentration rate γ. The negative sensitivity indicates that as γ is increased, androgen concentration will decrease

Download: Full-size image PowerPoint slide

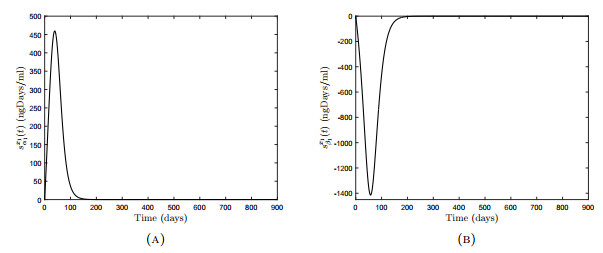

Figure 3. CAS sensitivity of androgen dependent cells (x₁) to the proliferation rate α₁, shown in (a), and the apoptosis rate β₁, shown in (b)

Download: Full-size image PowerPoint slide

Figure 4. CAS sensitivity of androgen independent tumor cells, s_γ^x₂, with respect to the androgen concentration rate γ.

Download: Full-size image PowerPoint slide

Figure 5. CAS sensitivity of androgen independent tumor cells, s^x₂_m₁, with respect to the maximum mutation rate m₁

Download: Full-size image PowerPoint slide

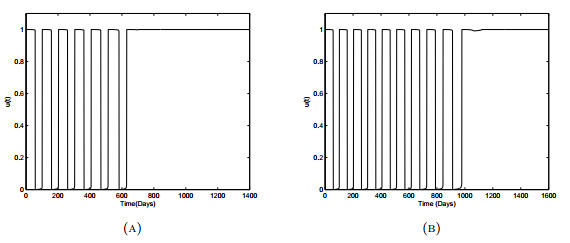

Figure 6. Sample plots of the treatment function u(t), as determined by (19), based on a parameter value of λ = 1100. Here we illustrate the behavior for κ = 0 in (a) and κ = 1 − β₂/α₂ in (b).

Download: Full-size image PowerPoint slide

Figure 7. These graphs illustrate the long term behavior of the androgen levels a(t), plotted as a dotted line, and serum PSA concentration y(t), plotted as a solid line, using the model from equations (22)-(25). The plots in (a) correspond to κ = 0 and in (b) correspond to κ = 1 − β₂/α₂.

Download: Full-size image PowerPoint slide

Figure 8. Sensitivity analysis for androgen concentration, s_γ^a, androgen dependent tumor cells, s_γ^x₁, and androgen independent tumor cells, s_γ^x₂, with respect to the parameter γ for intermittent treatment. The left column presents results for κ = 0, while the right column presents the sensitivities when κ = 1 − β₂/α₂. Here red depicts on-treatment while black depicts off-treatment.

Download: Full-size image PowerPoint slide

Figure 9. Sensitivity analysis for androgen concentration, s^a_m₁, androgen dependent tumor cells, s^x₁_m₁, and androgen independent tumor cells, s^x₂_m₁, with respect to the mutation parameter m₁ for intermittent treatment. The left column presents results for κ = 0, while the right column presents the sensitivities when κ = 1 − β₂/α₂. Here red depicts on-treatment while black depicts off-treatment.

Download: Full-size image PowerPoint slide

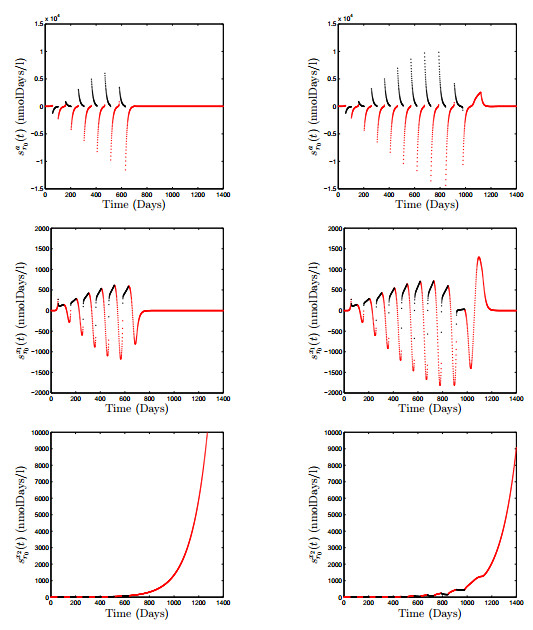

Figure 10. Sensitivity analysis for androgen concentration, s^a_r₀, androgen dependent tumor cells, s^x₁_r₀, and androgen independent tumor cells, s^x₂_r₀, with respect to the parameter r₀ for intermittent treatment. The left column presents results for κ = 0, while the right column presents the sensitivities when κ = 1 − β₂/α₂. Here red depicts on-treatment while black depicts off-treatment.

Download: Full-size image PowerPoint slide

Figure 11. These boxplots illustrate the relative sensitivity of the IAS model to each parameter for the case κ = 0. In subfigure (b) data for the three parameters for which the median relative sensitivity exceeded the others by at least an order of magnitude are summarized. For clarity of the display, boxplots for the remaining parameters are presented in (a).

Download: Full-size image PowerPoint slide

Figure 12. These boxplots illustrate the relative sensitivity of the IAS model to each parameter for the case κ = 1 − β₂/α₂. Here we have preserved the same arrangement of parameters as displayed in Figure 11

Download: Full-size image PowerPoint slide

Figure 13. These curves show the relapse time from (36) with y = 20 and the on-treatment time from (37) where κ = 0 in (a) and κ = 1 − β₂/α₂ in (b). The solid curves use the ITTA model for IAS with u as in (11) and the dashed curves use our model for IAS with u as in (19).

Download: Full-size image PowerPoint slide

Figure 14. The periodic androgen suppression model where y(t) = x₁(t) + x₂(t) is plotted (solid) with x₁(t) and x₂(t) computed as in (41) with κ = 0 on the left and κ = 1 − β₂/α₂ on the right. The androgen level a(t) is also plotted (dash-dot) and oscillates with period T = 200 in both cases. The initial conditions are a(0) = 30, x₁(0) = 15, and x₂(0) = 0.01.

Download: Full-size image PowerPoint slide

Figure 15. The solid and dash-dot curves show the relapse time TR and on-treatment time Ton respectively for the PAS model with TR as in (36) where y = 20 and Ton from (37). Here we use κ = 0 in (a) and κ = 1 − β₂/α₂ in (b). The dashed curves show the approximation of relapse time from (61) in (a) and (64) in (b).

Download: Full-size image PowerPoint slide

Figure 16. This plot depicts the relapse time as it depends on κ for the continuous model. The dashed curve is the relapse time T_R (where y = 20) as a function of κ estimated from (61) with |ζ₁| as in (66). The solid curve is the relapse time as it depends on κ computed using the model equations (2) and (3) with continuous androgen suppression and solving x₁(t) + x₂(t) = 20 for t.

Download: Full-size image PowerPoint slide

Figure 17. This figure shows the sensitivity indices of relapse time T_R from (67) for the periodic model. The box plots summarize the values of $\Upsilon$_θ^T_R computed from 100 random draws of the period T distributed normally with mean 425 days and standard deviation 25 days. In the top row κ = 0 and the relapse time T_R was computed from (61). In the bottom row κ = 1 − β₂/α₂ and the relapse time T_R was computed from (64). The parameter values p are displayed along the horizontal axis. Outliers are not displayed.

Download: Full-size image PowerPoint slide

Figure 18. This figure shows the sensitivity indices of relapse time T_R from (67) for the continuous model. The box plots summarize the values of $\Upsilon$_θ^T_R computed from 100 random draws of κ distributed normally with mean 0.5 and standard deviation 0.165. The relapse time T_R was computed from (61) with |ζ₁| replaced by (66). The parameter values p are displayed along the horizontal axis. Outliers are not displayed.

Download: Full-size image PowerPoint slide

Table 1. Parameter values used for continuous, intermittent and periodic androgen suppression models are listed with their baseline value, units of measurement, and a range of values used for data simulation

Parameter	Variable	Baseline Value	Range
Normal androgen level	$a_0$	30 nmol/l	26.25-33.75 nmol/l
Androgen concentration rate	$\gamma$	0.08 days$^{-1}$	0.0425-0.1175 days$^{-1}$
Androgen dependent proliferation rate	$\alpha_1$	0.0204 days$^{-1}$	0.0129-0.0279 days$^{-1}$
Androgen dependent apoptosis rate	$\beta_1$	0.0076 days$^{-1}$	0.00685-0.00835 days$^{-1}$
Androgen independent proliferation rate	$\alpha_2$	0.0242 days$^{-1}$	0.0216-0.0268 days$^{-1}$
Androgen independent apoptosis rate	$\beta_2$	0.0168 days$^{-1}$	0.0130-0.0206 days$^{-1}$
Maximum mutation rate	$m_1$	0.00005 days$^{-1}$	1.25-8.75$\times10^{-5}$ days$^{-1}$
AD proliferation half-saturation level	$k_2$	2 nmol/l	1.25-2.75 nmol/l
AD androgen free apoptosis constant	$k_3$	8	7.25-8.75
AD apoptosis rate half-saturation level	$k_4$	0.5 nmol/l	0.275-0.725 nmol/l
Minimum PSA concentration	$r_0$	10 ng/ml	6.5-13.5 ng/ml
Maximum PSA concentration	$r_1$	15 ng/ml	11.5-18.5 ng/ml
Treatment transition rate	$\lambda$	1100 days$^{-1}$	500-1700 days$^{-1}$

| Show Table

DownLoad: CSV

Table 2. Median relative sensitivities of the cost function J to the parameters in the IAS model. These statistics are based on 100 simulated data sets generated using random samples of the parameters from independent normal distributions with means given by the baseline values in Table 1 and standard deviations that limit the sample coefficients of variation to no more than 30%.

$\theta$	$\Upsilon^J_{\theta}$, $\kappa=0$	$\Upsilon^J_{\theta}$, $\kappa=1-\beta_2/\alpha_2$
$r_0$	$-1362$	$-50.19$
$\alpha_2$	$-292.9$	$-9.261$
$\beta_2$	$+189.3$	$+6.416$
$m_1$	$-9.609$	$-0.2761$
$\alpha_1$	$-8.772$	$+0.8986$
$\beta_1$	$+6.459$	$+1.246$
$\gamma$	$+3.463$	$-0.3032$
$k_3$	$+2.658$	$+0.07086$
$k_4$	$+1.807$	$+0.1499$
$k_2$	$+1.433$	$+0.2360$
$a_0$	$+0.3096$	$-0.6929$
$\lambda$	$-0.03408$	$-0.003861$
$r_1$	$-0.002916$	$-0.0003114$

| Show Table

DownLoad: CSV

Table 3. Average sensitivity indices of relapse time T_R for the data depicted in Figures 17 and 18 where Periodic (ⅰ) is κ = 0 and Periodic (ⅱ) is κ = 1 − β₂/α₂

Parameter	Periodic (ⅰ)	Periodic (ⅱ)	Continuous
$a_0$	$-0.017$	$-0.0091$	$-0.0058$
$\gamma$	$+0.069$	$+0.035$	$+0.032$
$\alpha_1$	$-0.075$	$-0.041$	$-0.054$
$\beta_1$	$+0.13$	$+0.070$	$+0.11$
$\alpha_2$	$-3.12$	$-1.69$	$-3.15$
$\beta_2$	$+2.18$	$+1.18$	$+2.20$
$m_1$	$-0.13$	$-0.074$	$-0.13$
$k_2$	$+0.0069$	$+0.0037$	$+0.0034$
$k_3$	$+0.10$	$+0.054$	$+0.091$
$k_4$	$+0.0099$	$+0.0053$	$+0.0024$
$T$	$+0.033$	$+0.47$	$-$

| Show Table

DownLoad: CSV
