Optimal control problems with time delays: Two case studies in biomedicine

^1, and
^2, ,

1.
Münster University of Applied Sciences, Department of Mechanical Engineering, Stegerwaldstr. 39, 48565 Steinfurt, Germany
2.
University of Münster, Applied Mathematics: Institute of Analysis and Numerics, Einsteinstr. 62, 49143 Münster, Germany

* Corresponding author: H. Maurer, maurer@math.uni-muenster.de
* Corresponding author: H. Maurer, maurer@math.uni-muenster.de

Received: April 29, 2017

Accepted: March 17, 2018

Published: September 2018

Abstract Full Text(HTML) Figure(9) / Table(1) Related Papers Cited by

Abstract

There exists an extensive literature on delay differential models in biology and biomedicine, but only a few papers study such models in the framework of optimal control theory. In this paper, we consider optimal control problems with multiple time delays in state and control variables and present two applications in biomedicine. After discussing the necessary optimality conditions for delayed optimal control problems with control-state constraints, we propose discretization methods by which the delayed optimal control problem is transformed into a large-scale nonlinear programming problem. The first case study is concerned with the delay differential model in [21] describing the tumour-immune response to a chemo-immuno-therapy. Assuming $ L^1$-type objectives, which are linear in control, we obtain optimal controls of bang-bang type. In the second case study, we introduce a control variable in the delay differential model of Hepatitis B virus infection developed in [7]. For $ L^1$-type objectives we obtain extremal controls of bang-bang type.

Keywords:

Mathematics Subject Classification: Primary: 49K15, 49M37; Secondary: 92C50.

Citation:

FullText(HTML)

Figure 1. Optimal solution of the non-delayed control problem with $\tau_1 = \tau_2 = 0$ and weights $B_1 = 5, B_2 = 10$. Top row: (a) dose control $u_1(t)$ of chemotherapy, (b) effector cells $E(t)$, (c) tumour cells $T(t)$. Bottom row: (a) dose control $u_2(t)$ of immune therapy, (b) healthy cells $N(t)$, (c) cytostatic agent $U(t)$.

Download: Full-size image PowerPoint slide

Figure 2. Optimal controls $u_k(t)$ and switching functions $\phi_k(t), \,(k = 1,2)$ in a neighborhood of the switching times $t_k$ illustrating the control-law (35) and the strict bang-bang property (37).

Download: Full-size image PowerPoint slide

Figure 3. Optimal controls $u_1(t)$ and $u_2(t)$ for functionals $J_p(p,u), p = 1,2,$ with weights $B_1 = 5, B_2 = 10$.

Download: Full-size image PowerPoint slide

Figure 4. Optimal solution of the delayed control problem with state delay $\tau_1 = 1.5$, control delay $\tau_2 = 3.0$ and weights $B_1 = 5, B_2 = 10$. Top row: (a) dose control $u_1(t)$ of chemotherapy, (b) effector cells $E(t)$, (c) tumour cells $T(t)$. Bottom row: (a) dose control $u_2(t)$ of immune therapy, (b) healthy cells $N(t)$, (c) cytostatic agent $U(t)$.

Download: Full-size image PowerPoint slide

Figure 5. Delayed solution with $\tau_1 = 1.5$ and $\tau_2 = 3.0$: controls $u_k(t)$ and switching functions $\phi_k(t), \,(k = 1,2)$ in a neighborhood of the switching times $t_k$ illustrating the control-law (35) and the strict bang-bang property (37).

Download: Full-size image PowerPoint slide

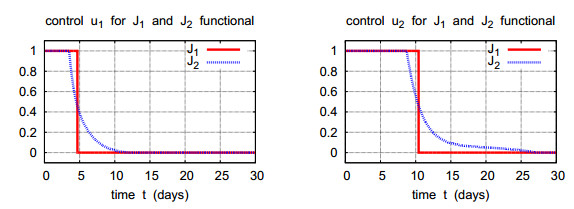

Figure 6. Optimal controls $u_1(t)$ and $u_2(t)$ for functionals $J_1(x,u)$ and $J_2(x,u)$ with delays $\tau_1 = 1.5, \tau_2 = 3.0$ and weights $B_1 = 5, B_2 = 10$.

Download: Full-size image PowerPoint slide

Figure 7. Optimal solution of the delayed control problem with state delay $\tau_1 = 1.5$, control delay $\tau_2 = 3.0$ and mixed control-state constraint $U(t) + u_2(t) \leq 3$. Top row: (a) dose control $u_1(t)$ of chemotherapy, (b) function $U(t)+u_2(t)$, (c) effector cells $E(t)$. Bottom row: (a) dose control $u_2(t)$ of immune therapy, (b) multiplier $\mu(t)$ for mixed constraint, (c) tumour cells $T(t)$.

Download: Full-size image PowerPoint slide

Figure 8. Controls and switching functions (51) for delays $\tau = 0$, $\tau = 10$ and $\tau = 15$. For all delays the control law (52) is satisfied and the strict bang-bang property holds.

Download: Full-size image PowerPoint slide

Figure 9. Comparison of state variables for delays $\tau = 0, 10, 15$. Top row: (a) healthy cells $x$, (b) exposed cells $p$. Bottom row: (a) infected cells $y$, (b) free virions $v$.

Download: Full-size image PowerPoint slide

Table 1. Parameters in the control problem of chemo-immunotherapy [21].

Parameter	Description	Value
$t_f$	final time	$30$ d (days)
$\tau_1$	state delay	$1.5$ d
$\tau_2$	control delay	$3.0$ d
$(u_{k,\min},u_{k,\max})$	control bounds	$(0, 1)$ for $\,k=1,2$
$(a_1,\,a_2,\,a_3)$	cell kill rate response	$(0.2,\,0.4,\,0.1)$
$(\beta,\, \beta_2)$	reciprocal carrying capacities of tumour and host cells	$(0.002,\,1.0)$
$(c_1,\, c_2)$	scaling parameters	$(3\times 10^{-5},\,3\times 10^{-8})$
$d_1$	drug decay rate	$0.01$
$\delta$	immune cell death rate	$0.2$
$\eta$	steepness of immune response	$0.3$
$\mu_e$	uninfected effector cell decrease rate	$0.003611$
$(\sigma,\,\rho)$	immune cell influx and decay rate resp.	$(0.2,\,0.2)$
$(s_1,\, r_2,\, r_3)$	cell growth rates	$(0.3,\,1.03,\,1.0)$
$n_T$	immune effector cell decrease rate	$1.0$
$(B_1,B_2) $	weights	$ (5,\,10)$

| Show Table

DownLoad: CSV
