Stability of metabolic networks via Linear-in-Flux-Expressions

Nathaniel J. Merrill; Zheming An; Sean T. McQuade; Federica Garin; Karim Azer; Ruth E. Abrams; Benedetto Piccoli

doi:10.3934/nhm.2019006

Article Contents

2019, Volume 14, Issue 1: 101-130. Doi: 10.3934/nhm.2019006

This issue Previous Article A case study of optimal input-output system with sampled-data control: Ding et al. force and fatigue muscular control model Next Article On the role of tumor heterogeneity for optimal cancer chemotherapy

Stability of metabolic networks via Linear-in-Flux-Expressions

1.
Center for Computational and Integrative Biology, Rutgers Camden. Camden NJ, USA
2.
Researcher, Univ. Grenoble Alpes, Inria, CNRS, Grenoble INP, GIPSA-lab. Grenoble, France
3.
Bill & Melinda Gates Medical Research Institute, 245 Main Street Kendall Square. Cambridege, MA 02142, USA
4.
Senior scientist, Translational Informatics, Sanofi. Bridgewater NJ, USA
5.
Joseph and Loretta Lopez chair professor of Mathematics, Center for Computational and Integrative Biology, Rutgers Camden. Camden NJ, USA

^* Corresponding author: Benedetto Piccoli
^* Corresponding author: Benedetto Piccoli

Received: May 31, 2018

Published: January 2019

Abstract Full Text(HTML) Figure(6) Related Papers Cited by

Abstract

The methodology named LIFE (Linear-in-Flux-Expressions) was developed with the purpose of simulating and analyzing large metabolic systems. With LIFE, the number of model parameters is reduced by accounting for correlations among the parameters of the system. Perturbation analysis on LIFE systems results in less overall variability of the system, leading to results that more closely resemble empirical data. These systems can be associated to graphs, and characteristics of the graph give insight into the dynamics of the system.

This work addresses two main problems: 1. for fixed metabolite levels, find all fluxes for which the metabolite levels are an equilibrium, and 2. for fixed fluxes, find all metabolite levels which are equilibria for the system. We characterize the set of solutions for both problems, and show general results relating stability of systems to the structure of the associated graph. We show that there is a structure of the graph necessary for stable dynamics. Along with these general results, we show how stability analysis from the fields of network flows, compartmental systems, control theory and Markov chains apply to LIFE systems.

Keywords:

Mathematics Subject Classification: Primary: 92C42, 05C21; Secondary: 93B99, 34H99.

Citation:

FullText(HTML)

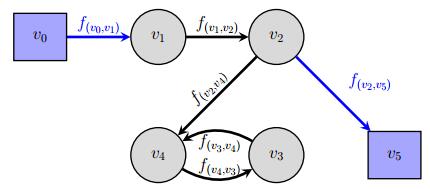

Figure 2. A directed graph $\tilde G = (\tilde{V}, \tilde{E})$ illustrating Proposition 2. Vertices $v_3$ and $v_4$ form a terminal component. There exists a path from $v_0$ to $v_4$ yet there is no path from $v_4$ to $v_5$

Download: Full-size image PowerPoint slide

Figure 1. A directed graph $ \tilde G = (\tilde{V}, \tilde{E}) $ representing a biochemical system. The rectangles indicate virtual vertices and the subgraph of circular vertices and edges connecting them is $ G = (V, E) $

Download: Full-size image PowerPoint slide

Figure 3. A directed graph where vertices $ v_3 $ and $ v_4 $ do not have a path from $ v_0 $ and also have no path to $ v_5 $. For an equilibrium, $ \bar{x} $, of this system under Assumption (A), $ \bar{x}_{v_4} = 0 $ and $ \bar{x}_{v_3} \geq x_{v_3}(0) $

Download: Full-size image PowerPoint slide

Figure 4. A directed cycle graph $ G = (V, E) $ with $ n $ vertices and no intakes nor excretions. On such a LIFE system one can prescribe any desired dynamics

Download: Full-size image PowerPoint slide

Figure 5. Reverse Cholesterol Transport Network from [19]. This network contains 6 vertices which represent metabolites, 10 edges which represent fluxes and 2 virtual vertices $ v_0, v_{n+1} $. There are three intake vertices $ v_1, v_2, v_3 $ and 1 excretion vertex $ v_{6} $

Download: Full-size image PowerPoint slide

Figure 6. The trajectories of the values of metabolites over 25 hours

Download: Full-size image PowerPoint slide
